Rear Engine Mount Removal/Installation

Rear Engine Mount Removal and Installation

Removal

1. Remove the front strut brace Service and Repair.

2. Lift and support the engine with a jack and a wood block under the engine/transmission.

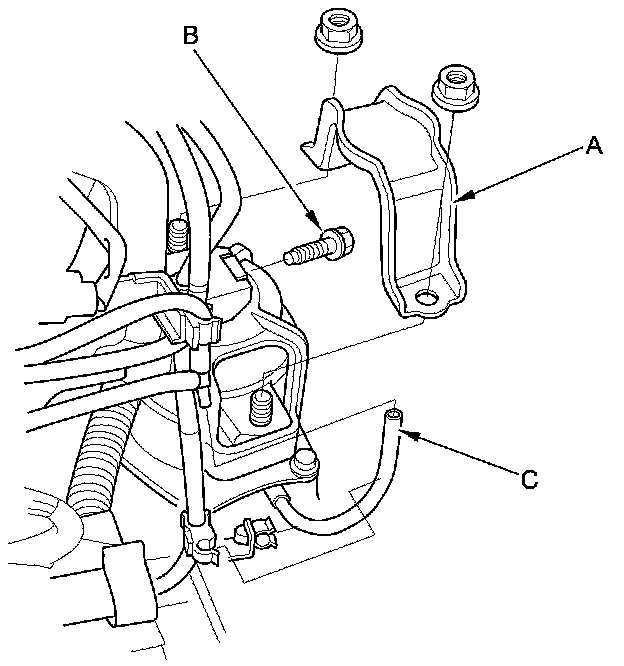

3. Remove the rear engine mount stop (A), then remove the rear engine mount bolt (B).





4. Disconnect the vacuum hose (C).

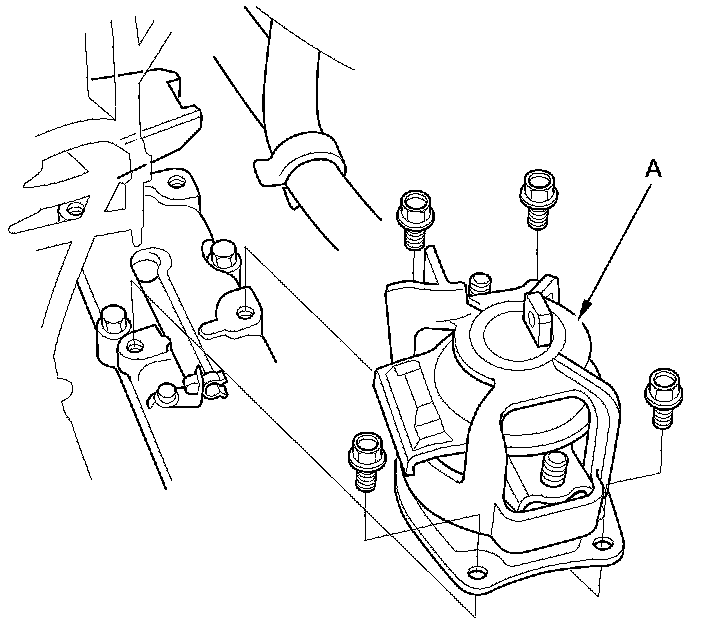

5. Remove the rear engine mount assembly (A).






6. Disconnect the vacuum hose (A), and remove the engine mount insulator (B) from the engine mount.






Installation

1. Connect the vacuum hose (A), and install the engine mount insulator (B) to the engine mount.






2. Install the rear engine mount assembly (A) to the front subframe.





3. Remove the jack and the wood block.

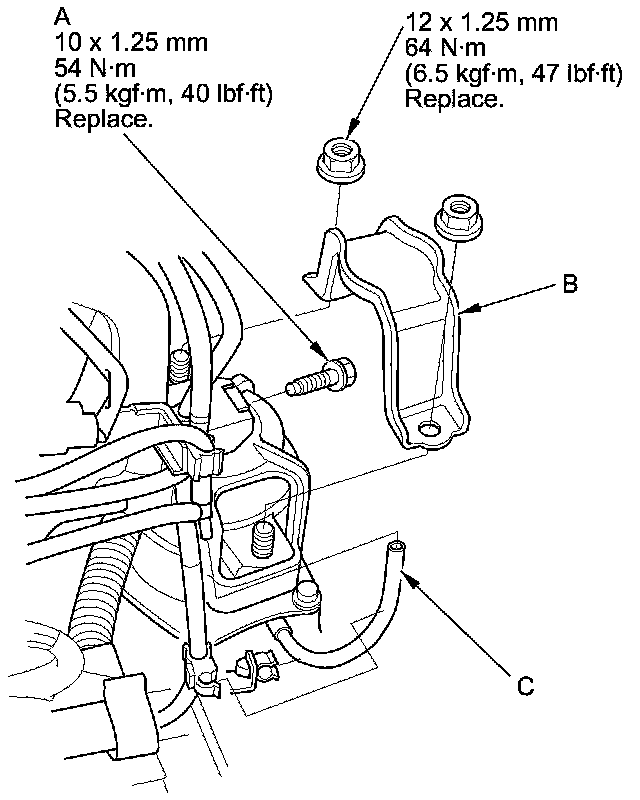

4. Install the rear engine mount bolt (A)





5. Install the rear engine mount stop (B), and connect the vacuum hose (C).

6. Install the front strut brace Service and Repair.
