Console Lamp: Service and Repair

Console Box Light Replacement

1. Remove the center console Center Console Removal / Installation.

2. Carefully pry out the console box light out of the center console.

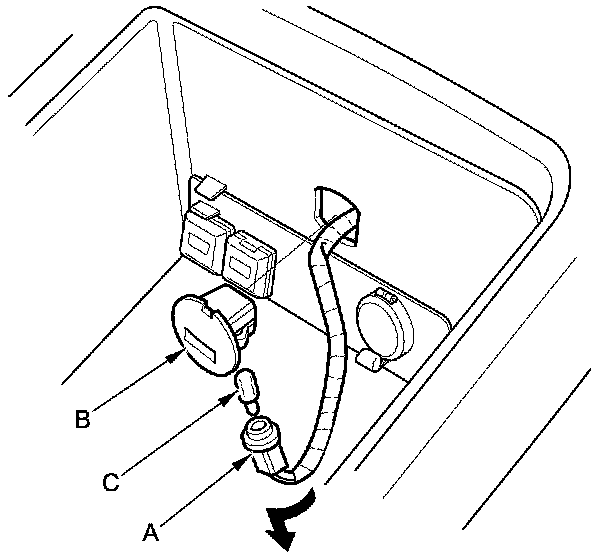

3. Twist the socket (A) to remove it from the console box light (B).









4. Remove the bulb (C) from the socket.

5. Install the light in the reverse order of removal.
