Fuel and Emissions System Description - Intake Air System

Fuel and Emissions System Description - Intake Air System

Intake Air System

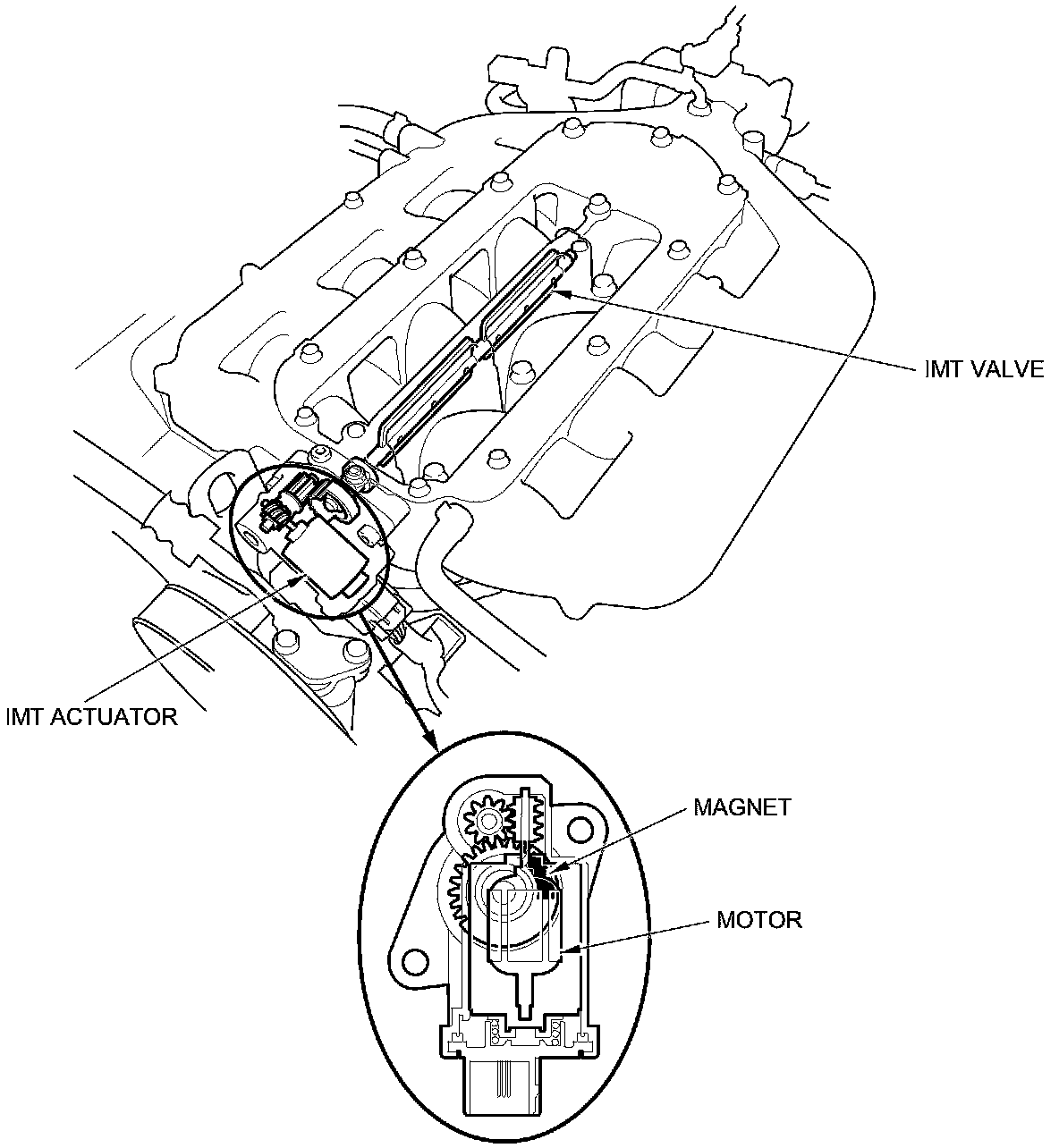

Intake Manifold Tuning (IMT) Valve

Engine power is adjusted by opening and closing the intake manifold tuning (IMT) valve. When the valve is closed, there is high torque at low engine speed. When the valve is open, there is high torque at high engine speed.

The intake manifold tuning (IMT) actuator contains a sensor that detects the IMT valve position and sends it to the PCM.
