Fuel Tank Pressure Sensor: Service and Repair

FTP Sensor Replacement

1. Remove the trunk front trim panel Interior Trim Removal / Installation - Trunk Area.

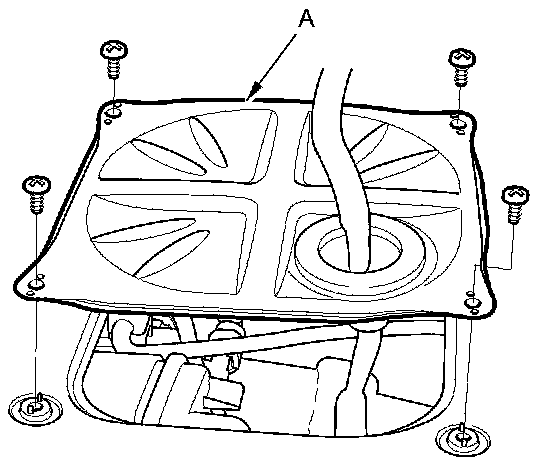

2. Remove the access panel (A) from the floor.






3. Disconnect the hose (A) and the FTP sensor 3P connector (B).





4. Remove the FTP sensor (C).

5. Install the parts in the reverse order of removal with a new O-ring (D).
