Starting and Charging

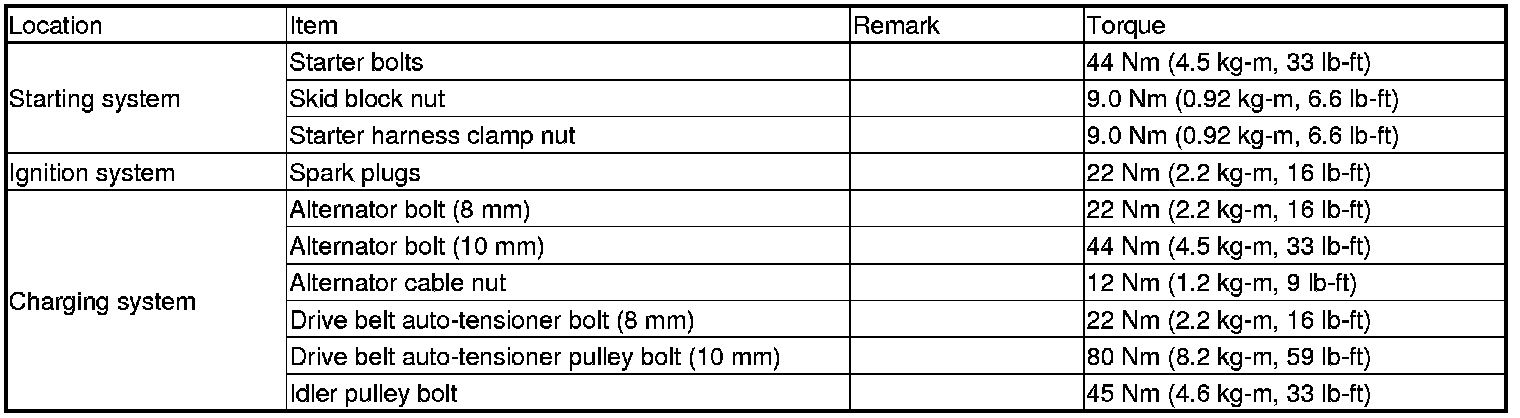

Torque Specifications

NOTE
Refer to the service data for the precautions and complete procedures.
Refer to the service data for the bolts/nuts not indicated here.
*1: Parts to be tightened in a particular order.
*2: Follow the service procedures closely for torque, sequence, and special steps.

Engine Electrical
