Line Pressure Switch Replacement

1. Do the battery removal procedure.



2. Remove the air cleaner.



3. Remove the battery base.

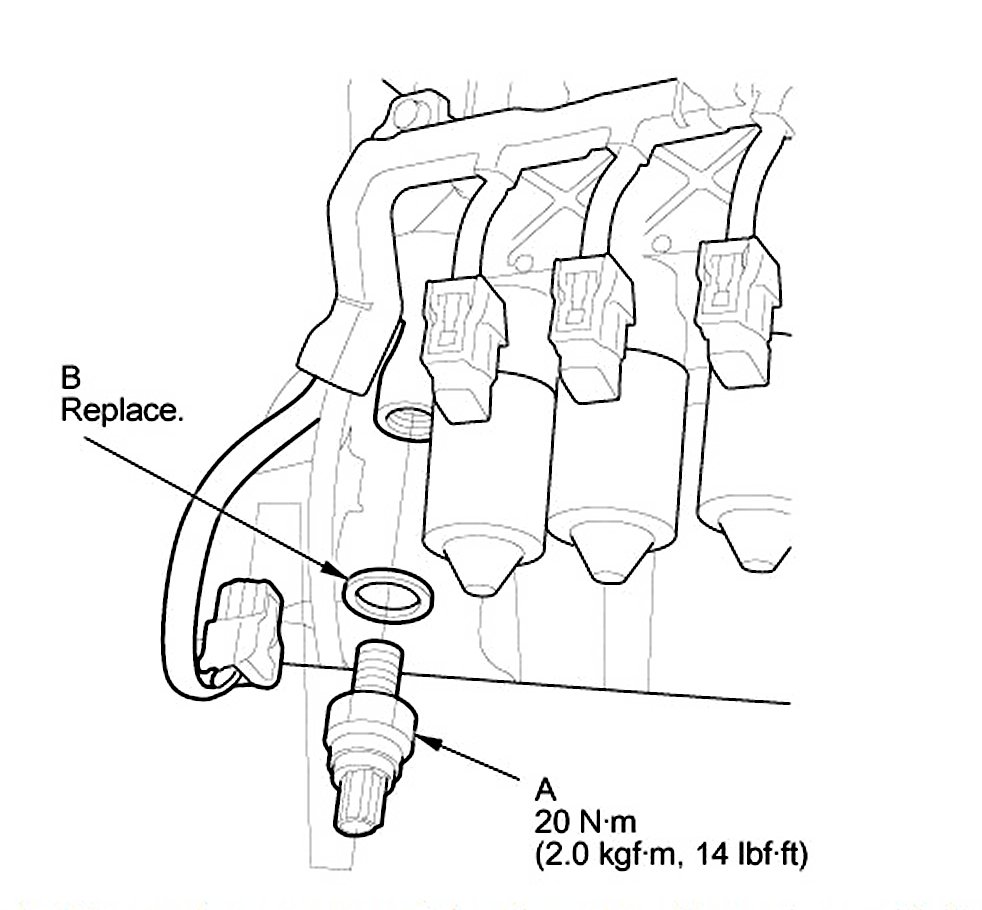

4. Disconnect the line pressure switch connector, and remove the line pressure switch (A) and the sealing washer (B).





5. Install a new line pressure switch and a new sealing washer, and tighten the switch.



6. Check the connector for corrosion, dirt, or oil, and clean or repair if necessary, then connect the connector securely.



. Install the battery base.



8. Install the air cleaner.



. Do the battery installation procedure.


.
