A/T Housing Main Shaft Bearing Removal

A/T Housing Mainshaft Bearing Removal

Special Tools Required

- Driver Handle, 15 x 135L 07749-0010000
- Seal Driver Attachment, 80 mm ID. 07VAD-P8A010A

1. Remove the reverse idler gear assembly A/T Housing Reverse Idler Gear Removal/Installation.

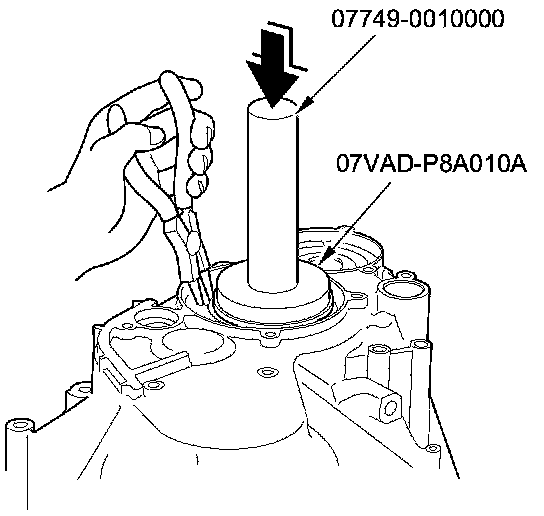

2. To remove the mainshaft bearing, expand the snap ring using snap ring pliers, then push the bearing out using the driver handle and the seal driver attachment. Do not remove the snap ring unless it is necessary to clean the groove in the transmission housing.
