Dashboard Center Holder Removal/Installation

Dashboard Center Holder Removal/Installation

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*Available through the Acura Tool and Equipment Program; call 888-424-6857

NOTE:

- Take care not to scratch the dashboard or the related parts.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

1. Remove the center trim Dashboard Center Trim Removal/Installation.

2. Remove the utility pocket (A) by detaching the clip, then remove the screw.

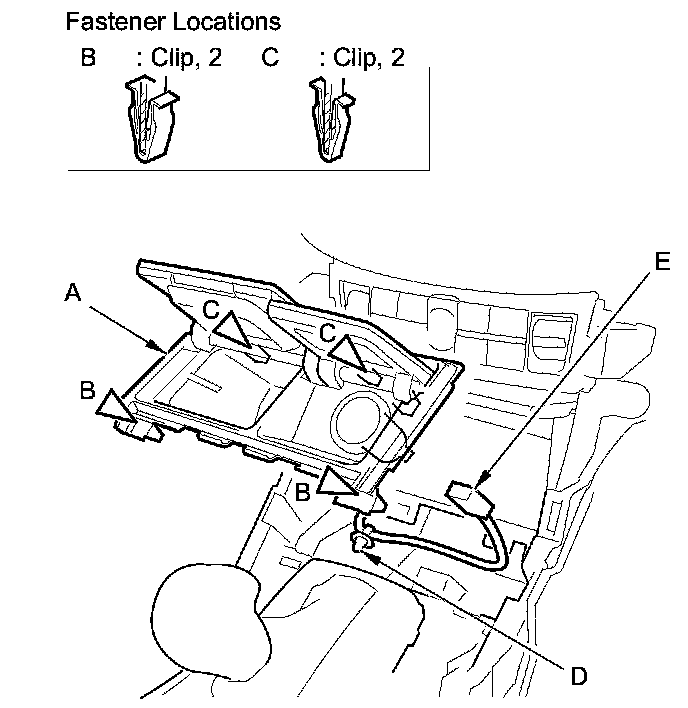

3. Pull out the center holder (A) to detach the clips (B, C) and the harness clip (D). Disconnect the front accessory power socket connector (E), then remove the holder.





4. Install the holder in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Make sure the connector is plugged in properly.
- Push the clips into place securely.
