Cargo Area Light Test/Replacement

Cargo Area Light Test/Replacement

Sport Wagon

1. Open the tailgate.

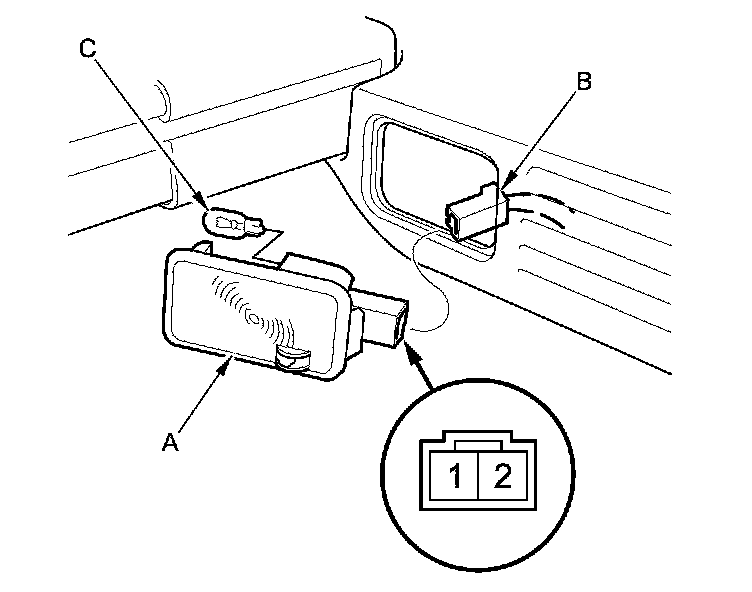

2. Carefully pry out the cargo area light (A).









3. Disconnect the 2P connector (B) from the light.

4. Check for continuity between the terminals.

- There should be continuity between the No. 1 and No. 2 terminals with the switch in the ON position.
- There should be no continuity between the No. 1 and No. 2 terminals with the switch in the OFF position.

5. If the continuity is not as specified, check the bulb (C). If the bulb is OK, replace the light.

6. Install the light in the reverse order of removal.
