Turn Signal/Hazard Warning Lights (MICU) Input Test

Turn Signal/Hazard Warning Lights (MICU) Input Test

1. Before troubleshooting the turn signal/hazard warning lights system, refer to B-CAN System Diagnosis Test Mode A Troubleshooting - B-CAN System Diagnosis Test Mode A.

2. Check the No. 10 (7.5 A) fuse in the under-dash fuse/relay box. If the fuse is blown, replace it and go to step 3.

3. Disconnect under-dash fuse/relay box connectors D, E, F, G, M, P, Q, R, S, and T.

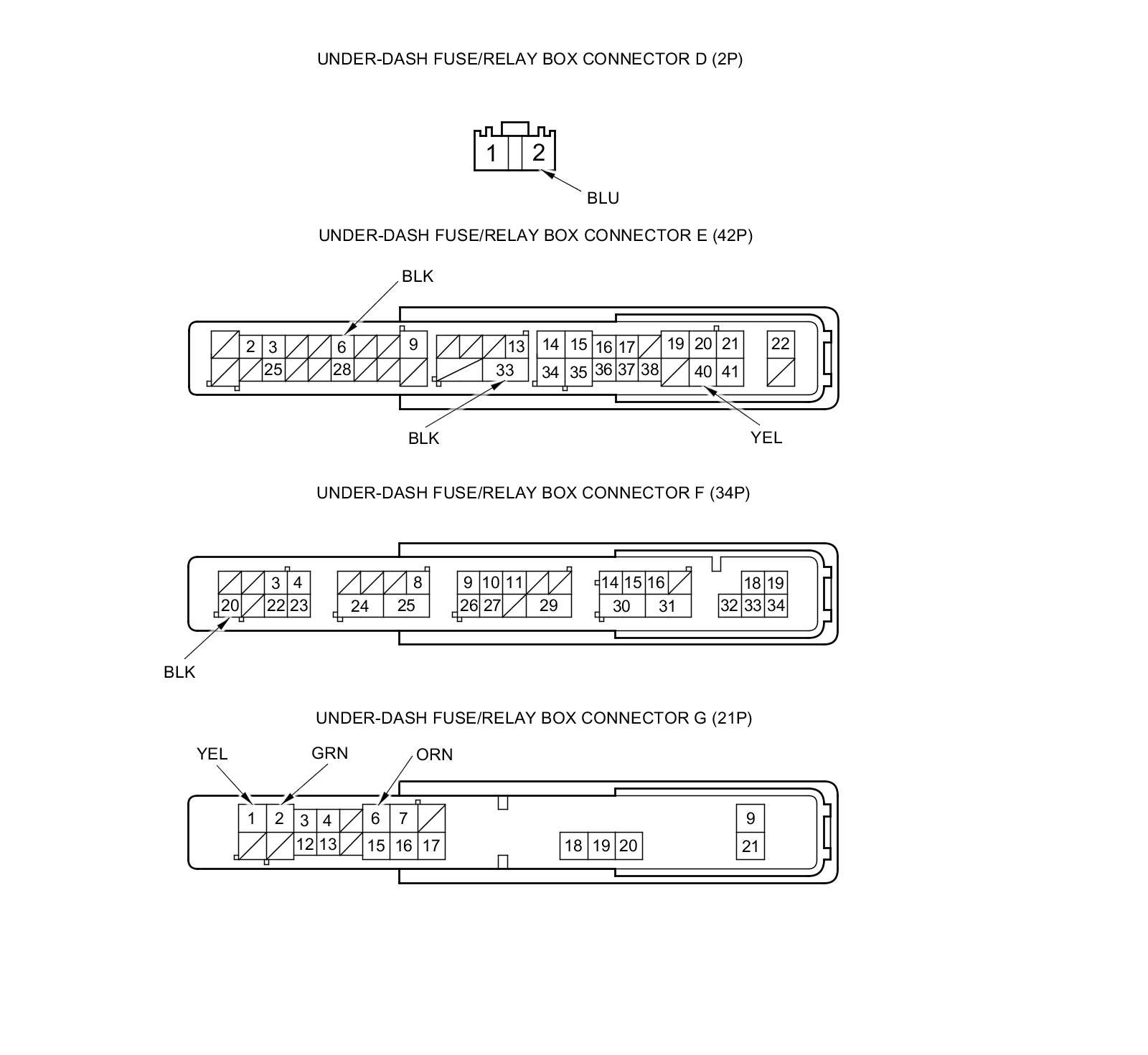

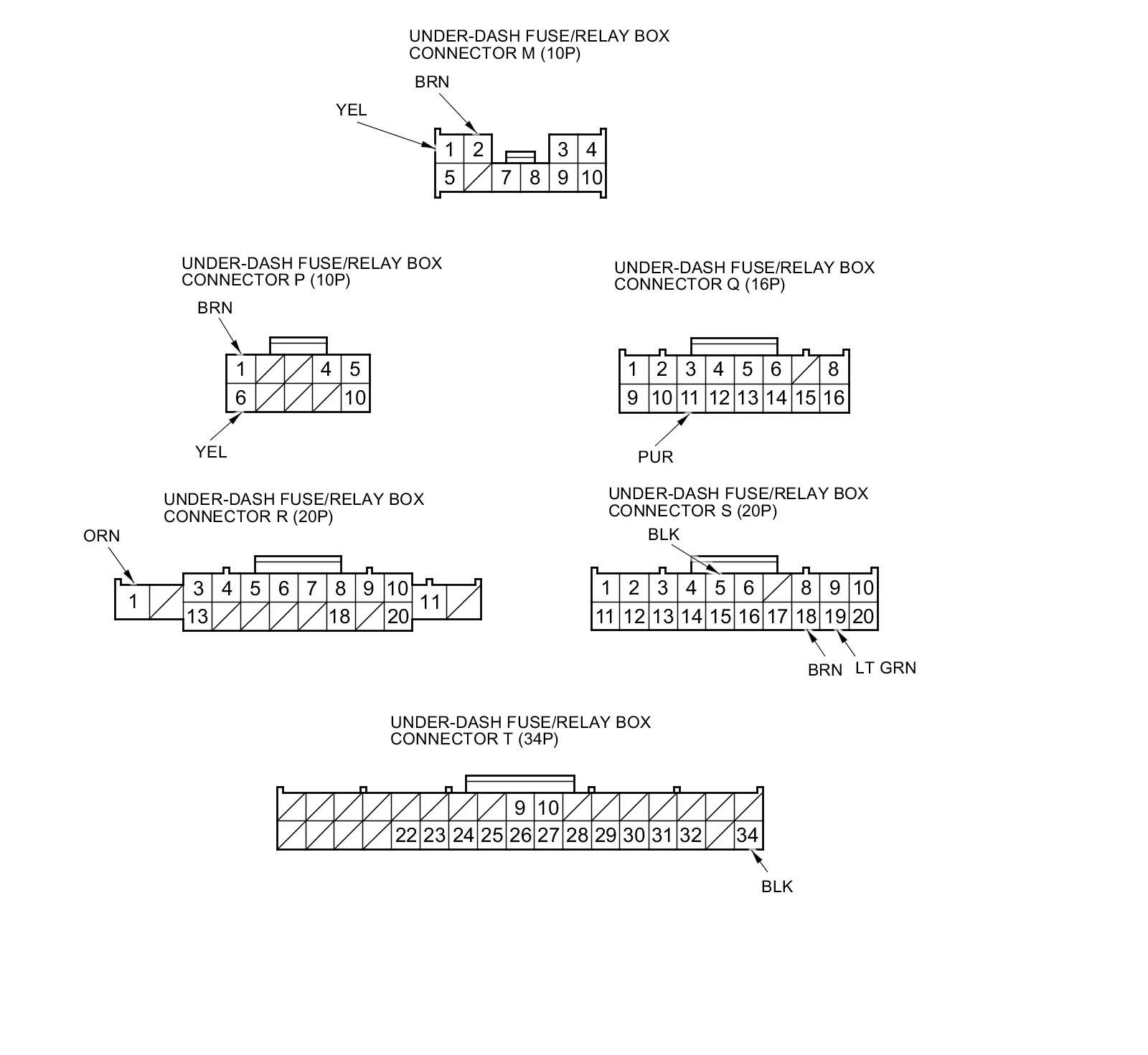

NOTE: All connector views are shown from wire side of female terminals.










4. Inspect the connector and socket terminals to be sure they are all making good contact.

- If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.
- If the terminals look OK, go to step 5.

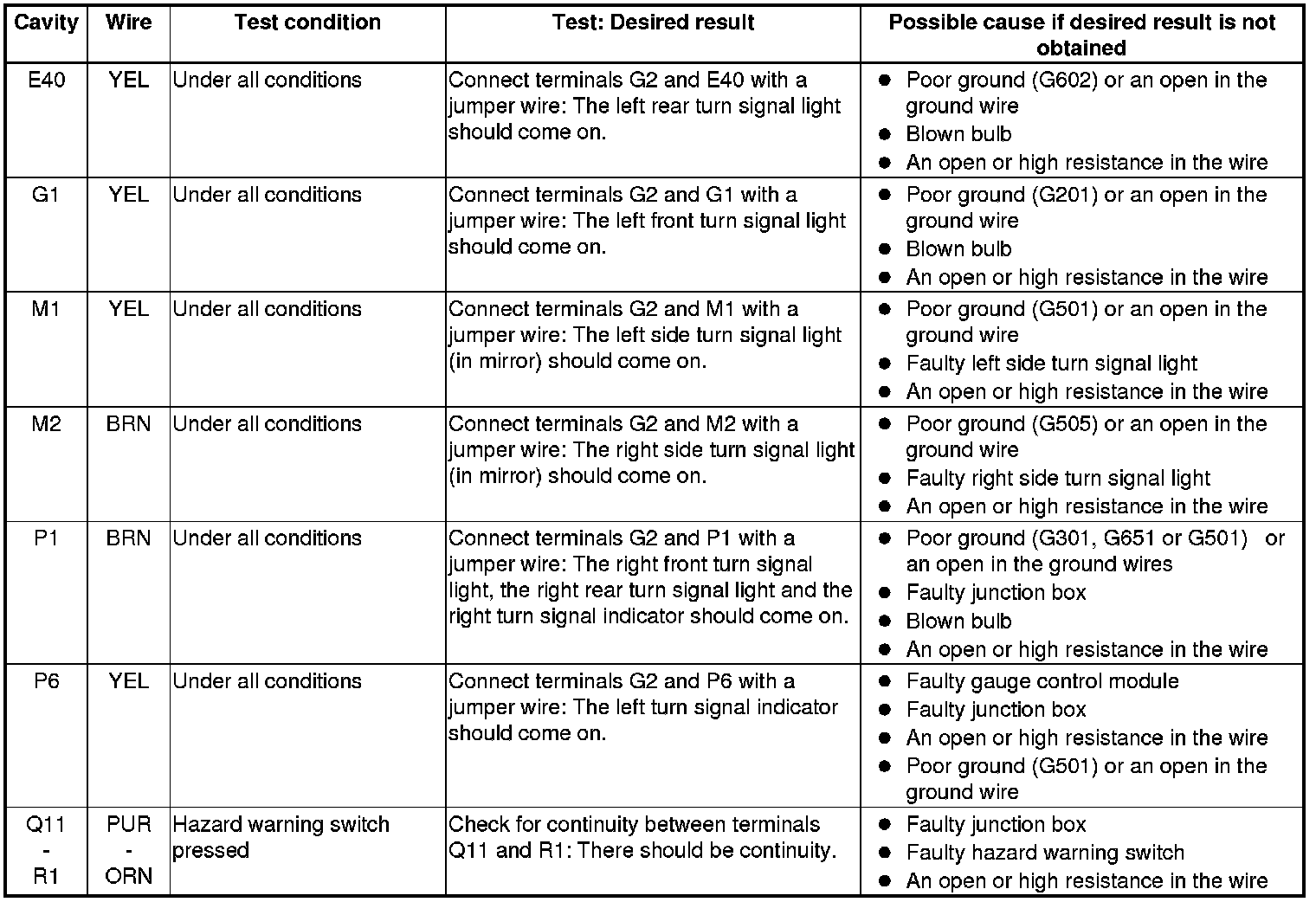

5. With the connectors still disconnected, do the following input tests:

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 6.

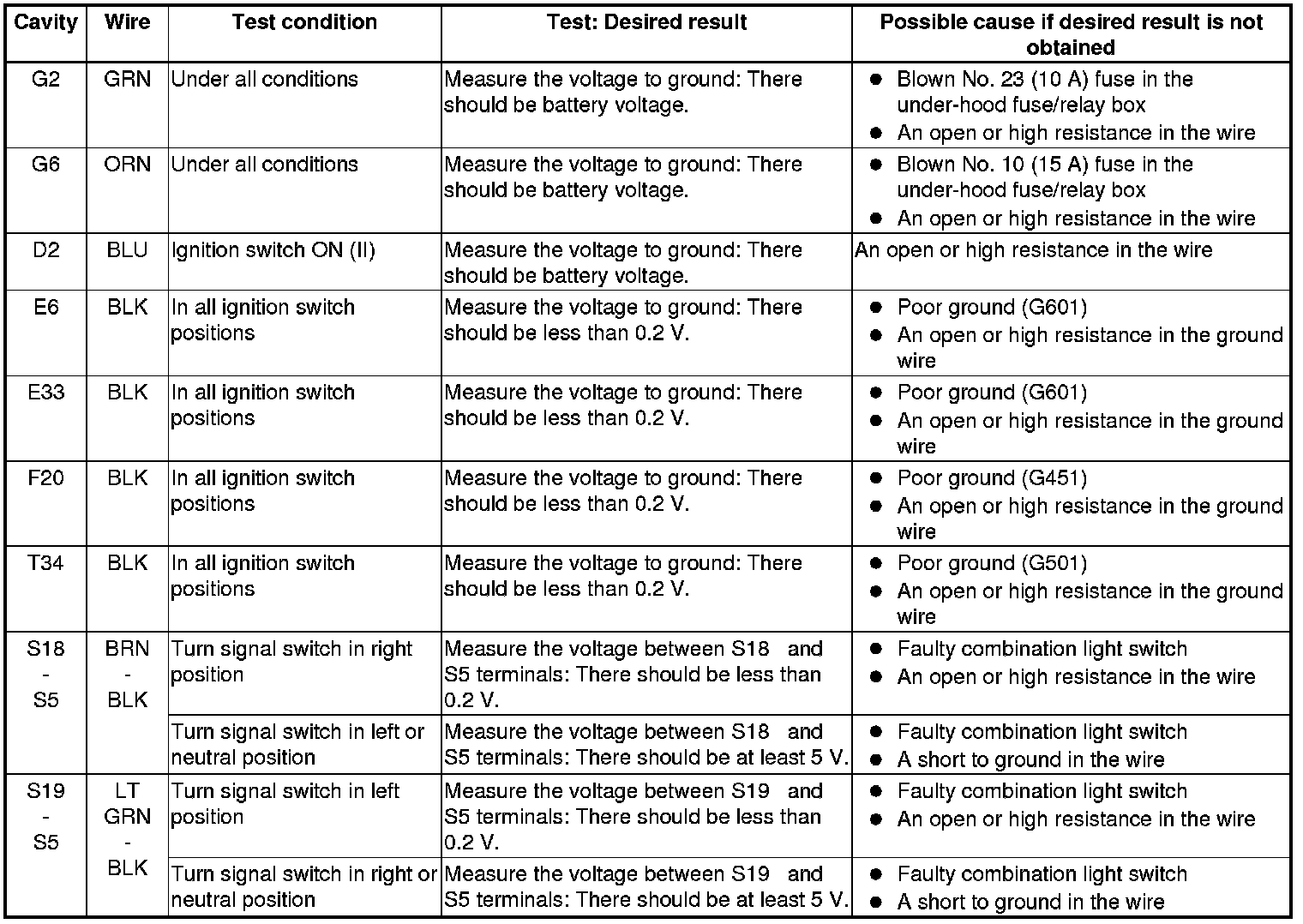

6. Reconnect the connectors to the under-dash fuse/relay box, turn the ignition switch to ON (II), and do the following input tests:

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, the MICU must be faulty; replace the under-dash fuse/relay box Under-Dash Fuse/Relay Box Removal and Installation.
