Voice Activation Module: Testing and Inspection

HandsFreeLink Control Unit Input Test/Replacement

1. Remove the passenger's console cover Center Console Removal / Installation.

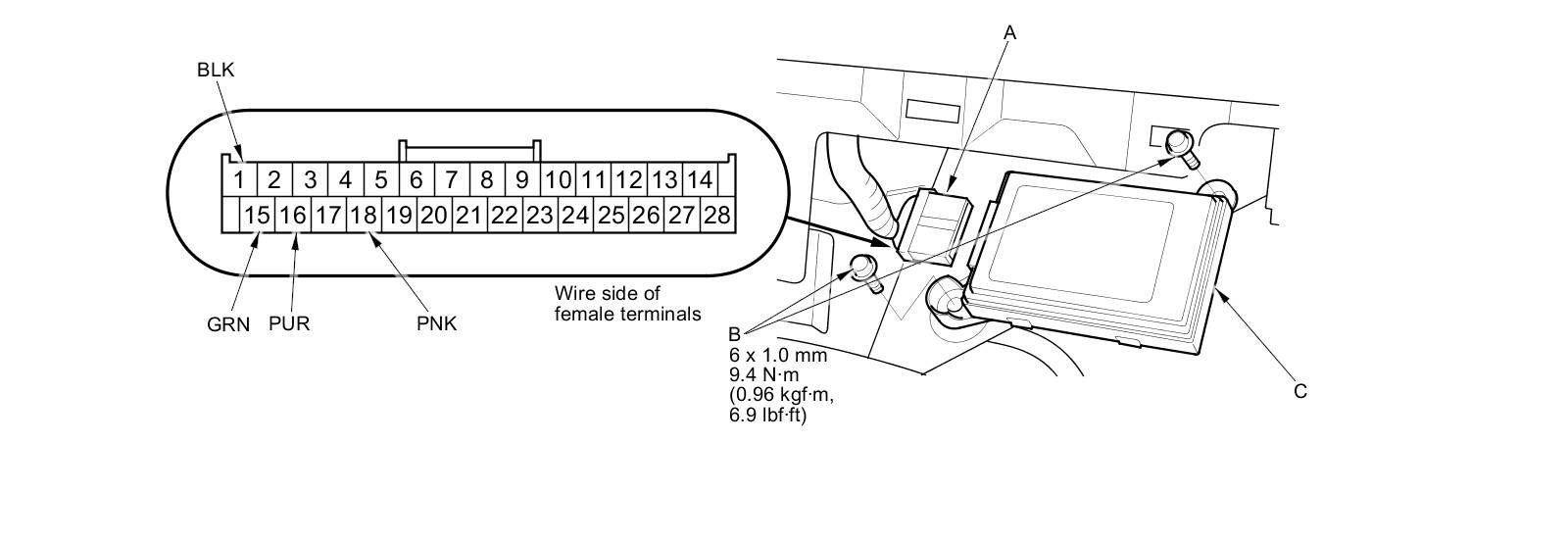

2. Disconnect the 28P connector (A), then remove the bolts (B) from the HandsFreeLink control unit (C).





3. Inspect the connector and socket terminals for a good pin fit to be sure they are all making good contact.

- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 4.

4. Reconnect the connector, and make these input tests at the connector.

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 5.





5. Disconnect the 28P connector again, and do this input test at the connector.

- If the test indicates a problem, find and correct the cause, then recheck the system.
- If the input test proves OK, the HandsFreeLink control unit must be faulty, replace it.
