A/T Housing Selector Control Shaft Oil Seal Replacement

A/T Housing Selector Control Shaft Oil Seal Replacement

Special Tools Required

- Driver Handle, 15 x 135L 07749-0010000
- Attachment, 22 x 24 mm 07746-001A800

1. Remove the oil seal (A) from the transmission housing.

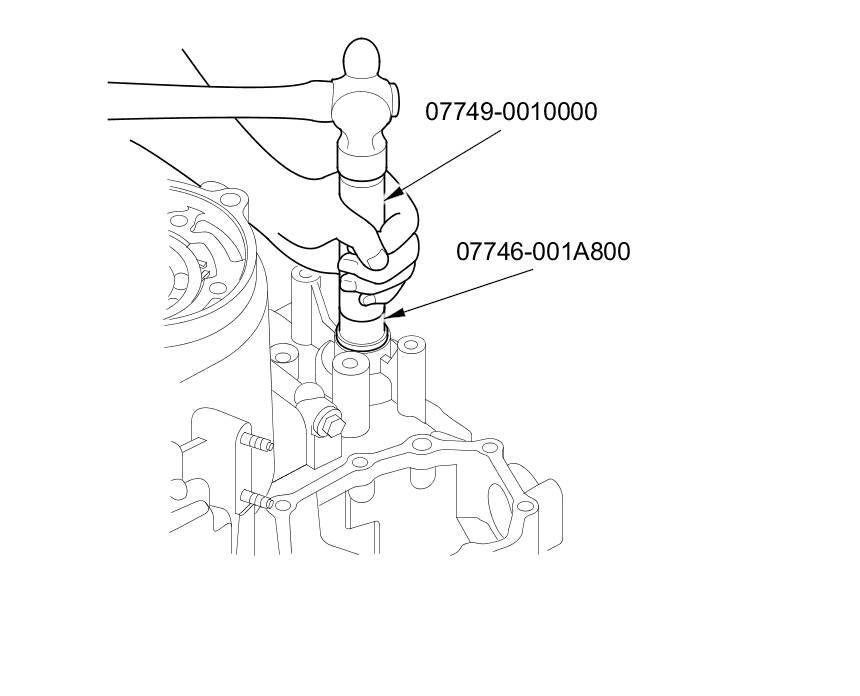

2. Install a new oil seal in the transmission housing using the driver handle (15 x 135L) and the attachment (22 x 24 mm).
