Torque Converter Housing Secondary Shaft Bearing Replacement

Torque Converter Housing Secondary Shaft Bearing Replacement

Special Tools Required

- Adjustable Bearing Puller, 25-40 mm 07736-A01000B
- Bearing Remover Shaft Set, 30 mm 07936-8890300
- Remover Handle 07936-3710100
- Slide Hammer 07936-371020A
- Driver Handle, 15 x 135L 07749-0010000
- Bearing Driver Attachment, 37 x 40 mm 07746-0010200
- Bearing Driver Attachment, 62 x 68 mm 07746-0010500

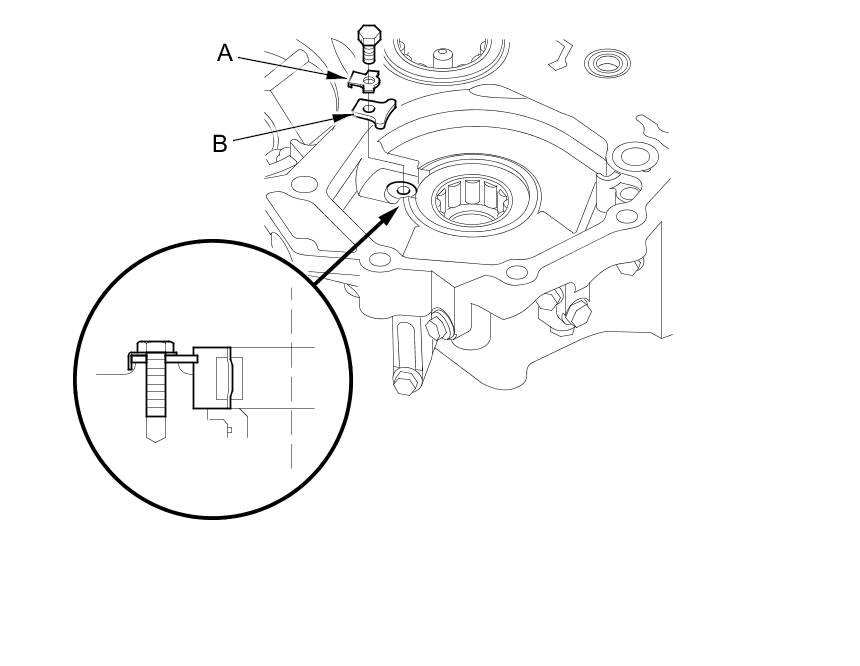

1. Remove the bolt, then remove the lock washer (A) and the bearing set plate (B).






2. Remove the secondary shaft bearing from the torque converter housing using the adjustable bearing puller (25-40 mm) and a commercially available 3/8 "-16 slide hammer (A).






3. Remove the ATF guide collar (A) from the torque converter housing.






4. Remove the 29 x 39 x 9.5 mm secondary shaft bearing (A) from the torque converter housing using the bearing remover shaft set (30 mm), the remover handle, and the sliding hammer weight.

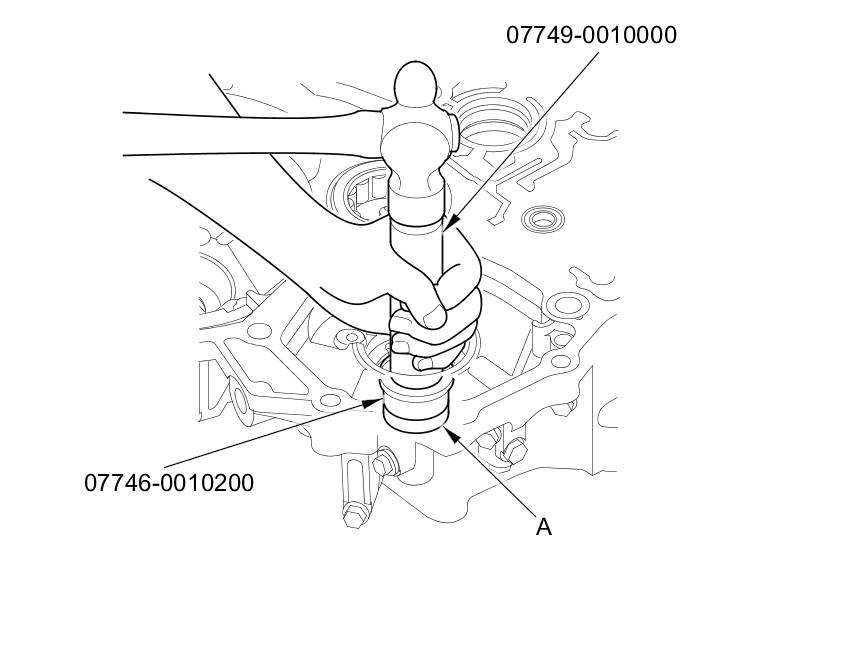

5. Install a new 29 x 39 x 9.5 mm bearing (A) into the torque converter housing using the driver handle (15 x 135L) and the bearing driver attachment (37 x 40 mm).






6. Install new O-rings (A) on the ATF guide collar (B), then install the guide collar in the torque converter housing.

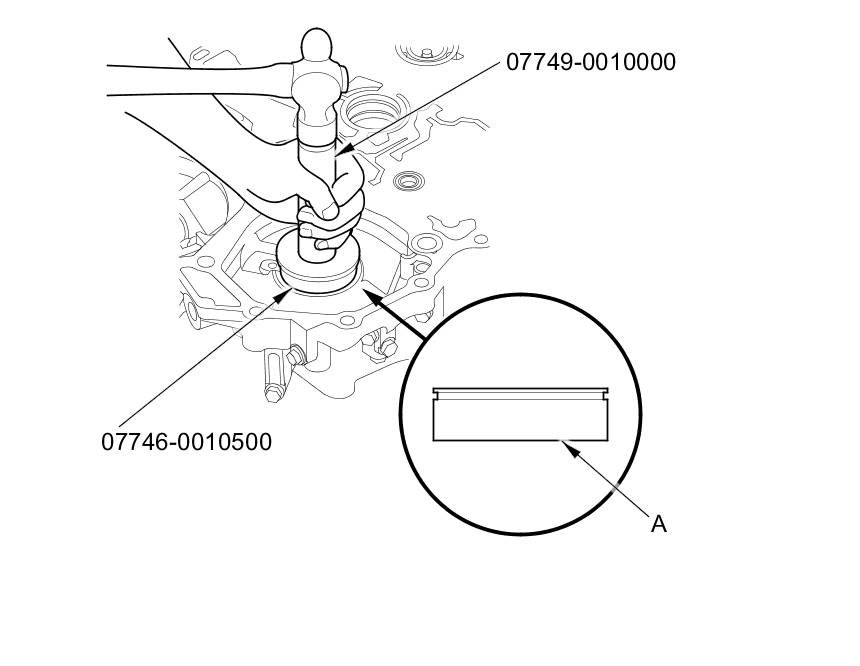

7. Install a new bearing (A) in the torque converter housing in the direction shown.





8. Drive the bearing until it bottoms in the housing using the driver handle (15 x 135L) and the bearing driver attachment (62 x 68 mm).

9. Check that the bearing groove aligns with the set plate mounting surface, then install the set plate (A) by aligning it with the bearing groove.





10. Install a new lock washer (B) and the bolt, then bend the lock tab of the lock washer against the bolt head.
