Driver's Power Window Motor Test

Driver's Power Window Motor Test

Motor Test

1. Remove the power window master switch Service and Repair, and disconnect the connector (A).

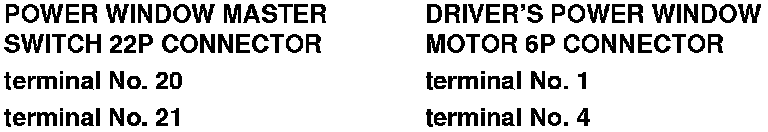

2. Test the motor in each direction by connecting battery power and ground to the power window master switch 22P connector according to the table.





3. If the motor does not run or fails to run smoothly, go to step 4. If the motor is OK, do the power window master switch input test Power Window Master Switch Input Test.

4. Disconnect the 6P connector from the driver's power window motor.

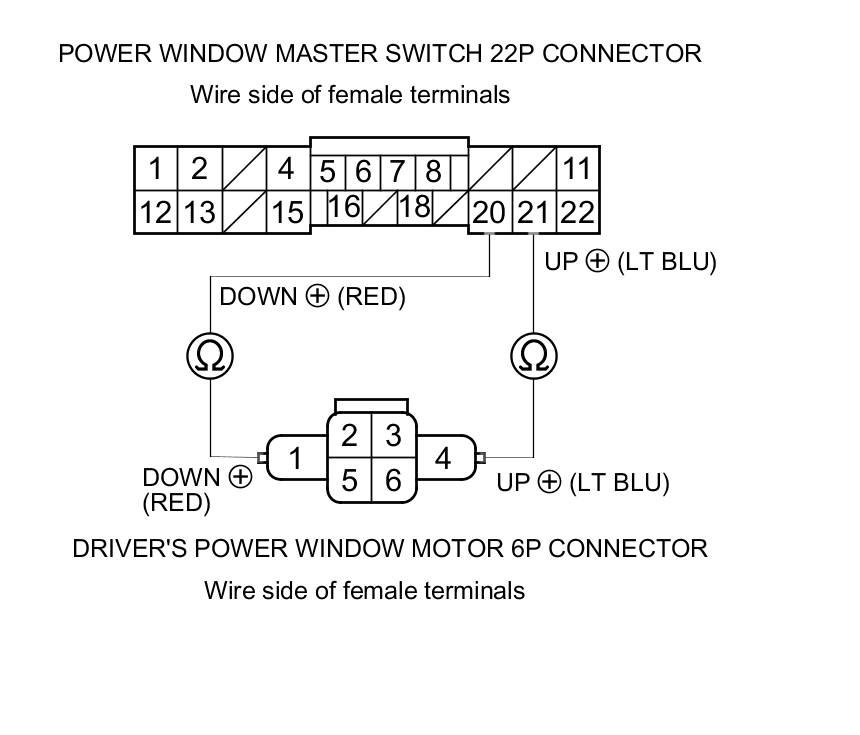

5. Check for continuity between power window master switch 22P connector terminals No. 20 and No. 21 and driver's power window motor 6P connector terminals No. 1 and No. 4 respectively.









6. If the wire harness is OK, replace the driver's power window motor Service and Repair.

Pulser Test

7. Do the power window master switch input test at terminals No. 5, No. 6, No. 7, and No. 11 Power Window Master Switch Input Test.
