Center Console Panel Disassembly/Reassembly

Center Console Panel Disassembly/Reassembly

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*Available through the Acura Tool and Equipment Program; call 888-424-6857

NOTE:

- Take care not to scratch the center console or the related parts.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

1. Remove the center console panel Center Console Panel Removal / Installation.

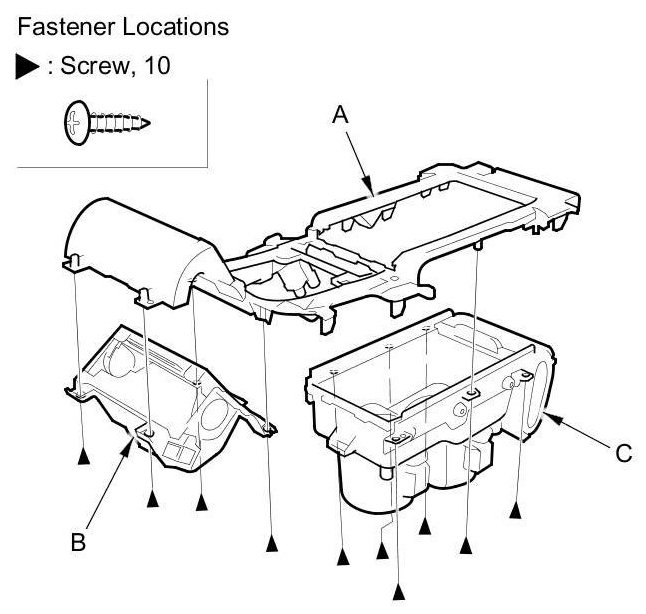

2. Remove the screws from the back or the center console panel (A), then remove the panel from the center console pocket assembly (B) and the beverage holder assembly (C).

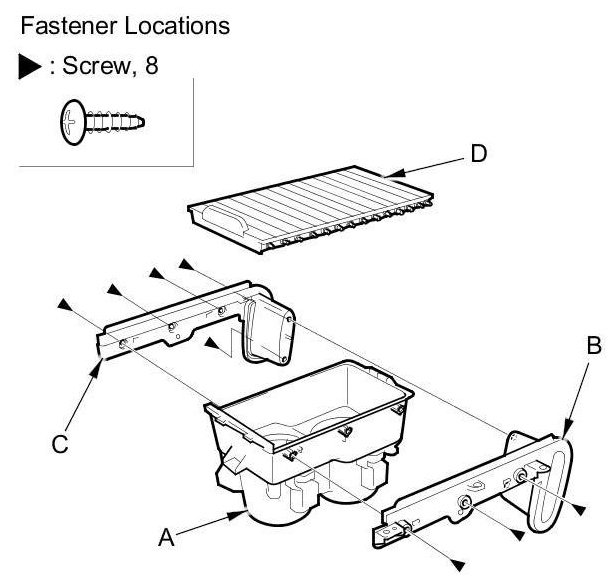

3. Remove the screws from both sides of the beverage holder (A), then remove the driver's side shutter rail (B), the passenger's side shutter rail (C), and the console shutter (D).





4. Reassemble the center console panel in the reverse order of disassembly.
