Keyless Access LF Antenna (Front Interior) Replacement
Keyless Access LF Antenna (Front Interior) Replacement 1.
Remove the center console panel
Center Console Panel Removal / Installation.
2.

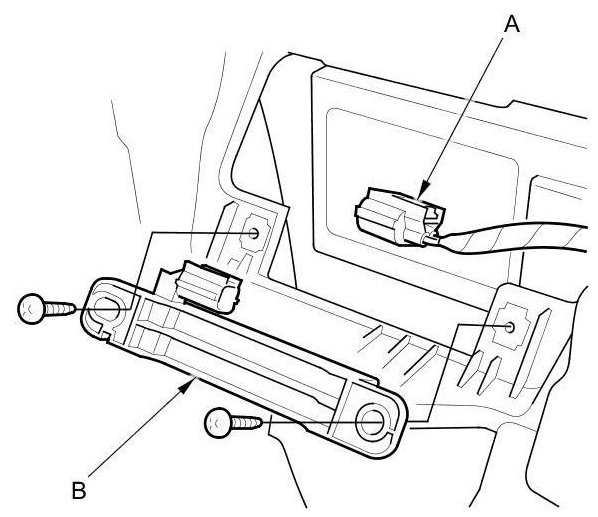

Disconnect the 2P connector (A) from the front interior LF antenna (B).
3.
Remove the two screws from the front interior LF antenna.
4.
Install the antenna in the reverse order of removal.
