Traction Control Switch: Service and Repair

VSA Off Switch Test/Replacement

1. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.

2. Remove the driver's switch panel Dashboard Driver's Switch Panel Removal / Installation.

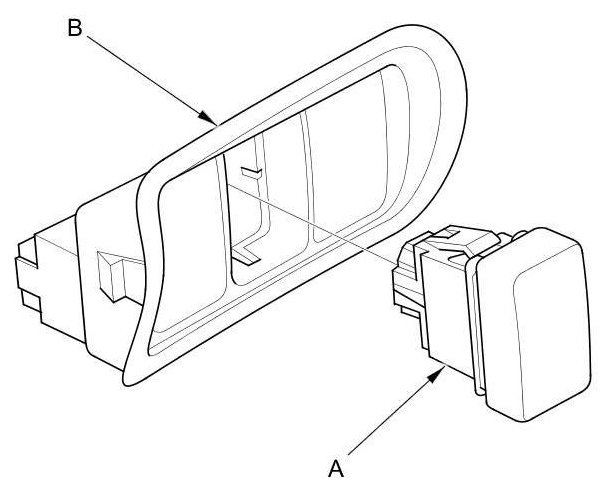

3. Remove the VSA OFF switch (A) from the driver's switch panel (B).

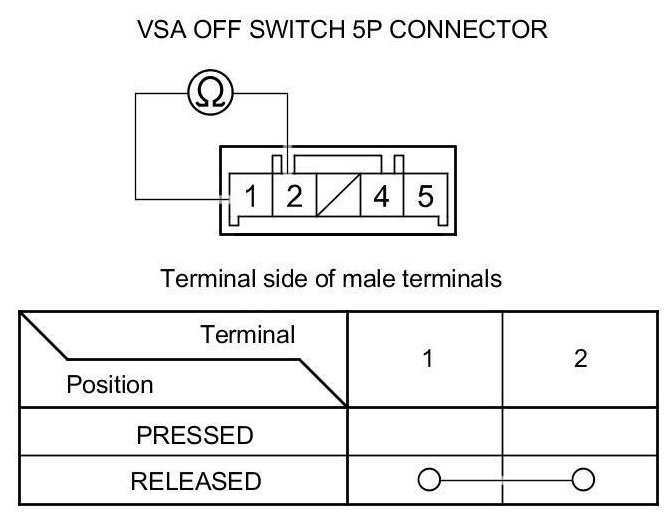

4. On the switch side, check for continuity between the VSA OFF switch 5P connector terminal in each switch position according to the table.





- If the switch does not work as described in the table, replace the switch.
- If the switch tests OK, go to step 5.

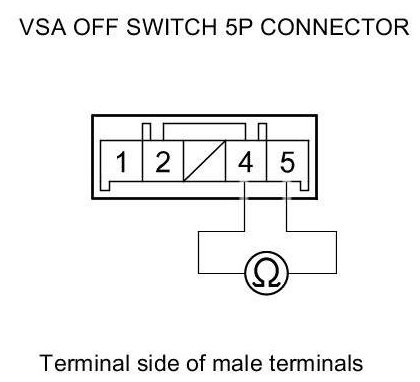

5. On the switch side, check for continuity between VSA OFF switch 5P connector terminals No. 4 and No. 5. There should be continuity at all times.





6. If the continuity is not as specified, replace the VSA OFF switch.

7. Install the VSA OFF switch in the reverse order of removal.
