Condenser Fan Motor: Testing and Inspection




Radiator and A/C Condenser Fan Motor Test

1. Remove the engine compartment covers Service and Repair.

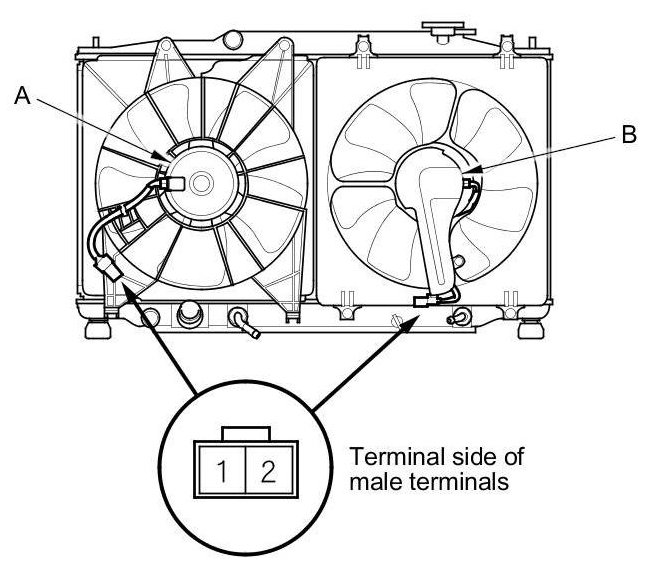

2. Disconnect the 2P connectors from the radiator fan motor (A) and the A/C condenser fan motor (B).





3. Test each motor by connecting battery power to terminal No. 2 and ground to terminal No. 1.

4. If either motor fails to run or does not run smoothly, replace it Radiator And A/C Condenser Fan, Motor, And Shroud Removal And Installation.

5. Install the engine compartment covers Service and Repair.
