Evaporator Temperature Sensor / Switch: Testing and Inspection




Evaporator Temperature Sensor Test

NOTE: Before testing the sensor, check for climate control DTCs Initial Inspection and Diagnostic Overview.

1. Remove the evaporator temperature sensor Service and Repair.

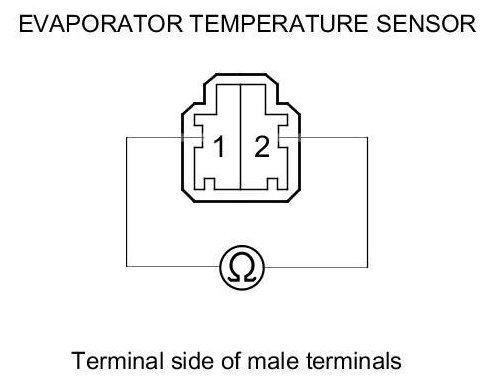

2. Dip the sensor in ice water, and measure the resistance between terminals No. 1 and No. 2.





3. Pour warm water on the sensor, and measure the resistance.

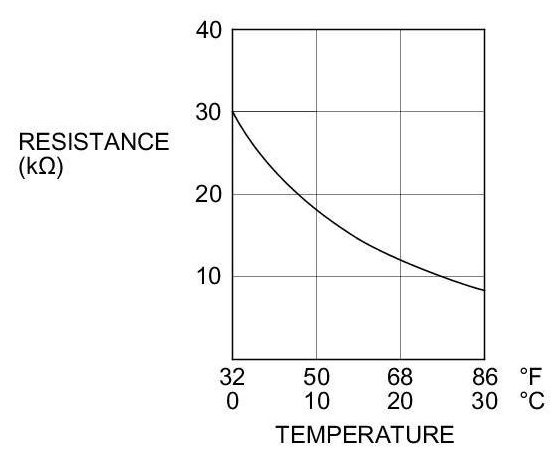

4. Compare the resistance readings with the specifications shown in the graph; the resistance should be within the specifications.





5. If the resistance is not as specified, replace the evaporator temperature sensor Service and Repair.
