Compass: Service and Repair
Electrical Compass Unit Removal/Installation 1.
Remove the rear shelf
Service and Repair.
2.

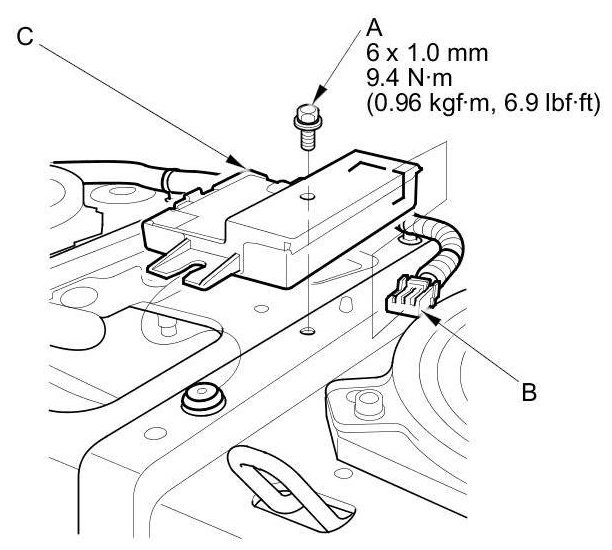

Remove the bolts (A), then disconnect the 6P connector (B) from the electrical
compass unit (C), and remove it.
3.
Install the electrical
compass unit in the reverse order of removal.
NOTE: If you replaced the electrical
compass unit, set the compass zone.
