Vanity Mirror Light Test/Replacement

Vanity Mirror Light Test/Replacement

1. Remove the sunvisor Service and Repair.

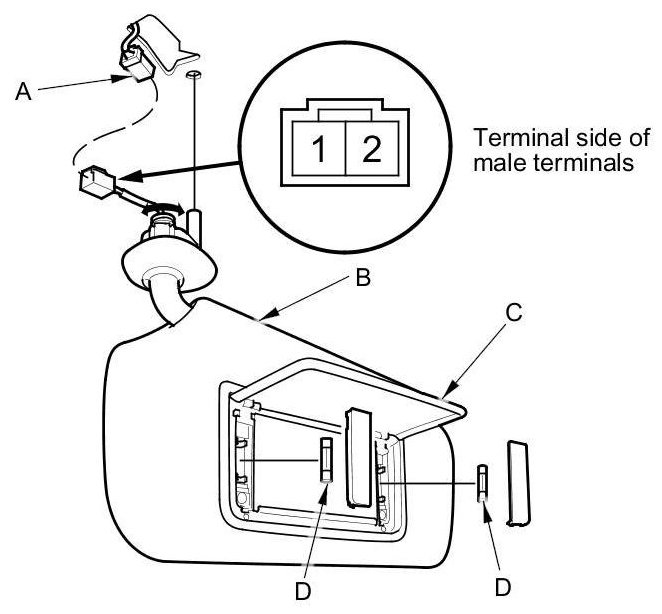

2. Disconnect the 2P connector (A) from the sunvisor (B).

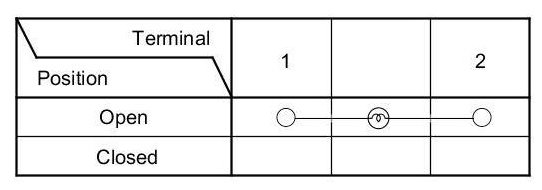

3. Check for continuity between the terminals in each vanity mirror cover (C) position according to the table.

4. If the continuity is not as specified, check the bulbs (D). If the bulbs are OK, replace the sunvisor Service and Repair.

5. Install the parts in the reverse order of removal.
