Safing Sensor: Service and Repair

Rear Safing Sensor Replacement

Removal

1. Do the battery terminal disconnection procedure, then wait at least 3 minutes before starting work.

2. Remove the rear seat cushion Rear Seat Cushion Cover Replacement.

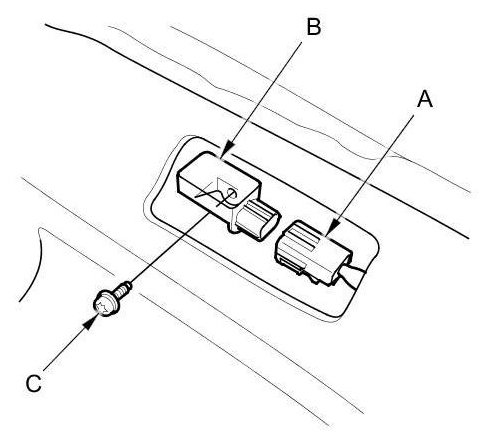

3. Disconnect the SRS floor wire harness 2P connector (A) from the rear safing sensor (B).





4. Remove the TORX bolt (C) using a TORX T30 bit, then remove the rear safing sensor.

Installation

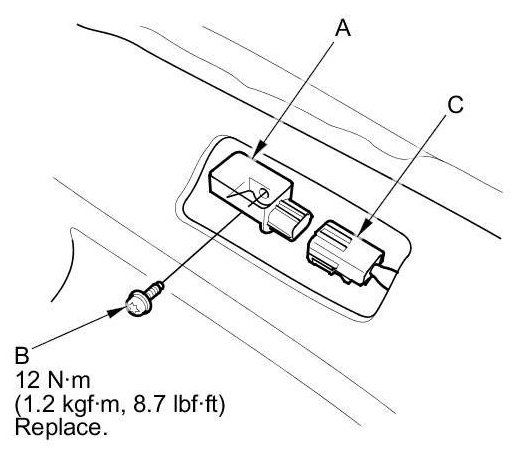

1. Install the rear safing sensor (A) with the new TORX bolt (B) using a TORX T30 bit, and tighten the TORX bolt to the specified torque.





2. Connect the SRS floor wire harness 2P connector (C) to the rear safing sensor.

3. Do the battery terminal reconnection procedure.

4. Clear any DTCs with the HDS.

5. Confirm proper SRS operation: Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.

6. Install the rear seat cushion Rear Seat Cushion Cover Replacement.
