Shift Lock Release And Release Spring Replacement (A/T)

Shift Lock Release and Release Spring Replacement

1. Remove the shift lever assembly A/T Shift Lever Removal.

2. Remove the shift lever knob A/T Shift Lever Knob Replacement.

3. Remove the shift lever boot and the shift lever boot base A/T Shift Lever Boot And Shift Lever Boot Base Replacement (A/T).

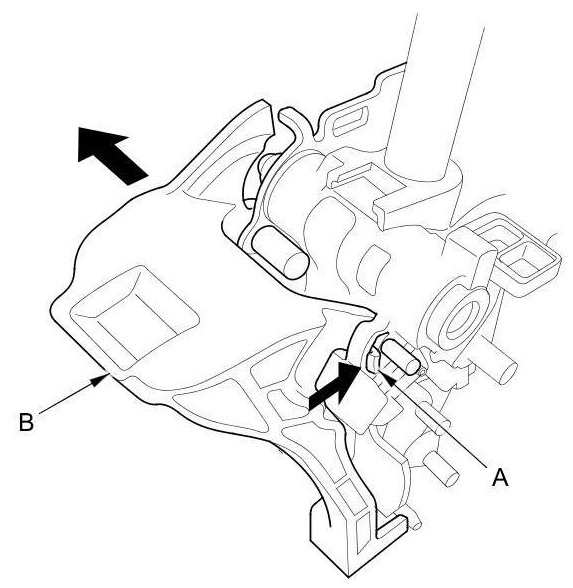

4. Release the lock (A) of the shift lock release (B), then remove the shift lock release.

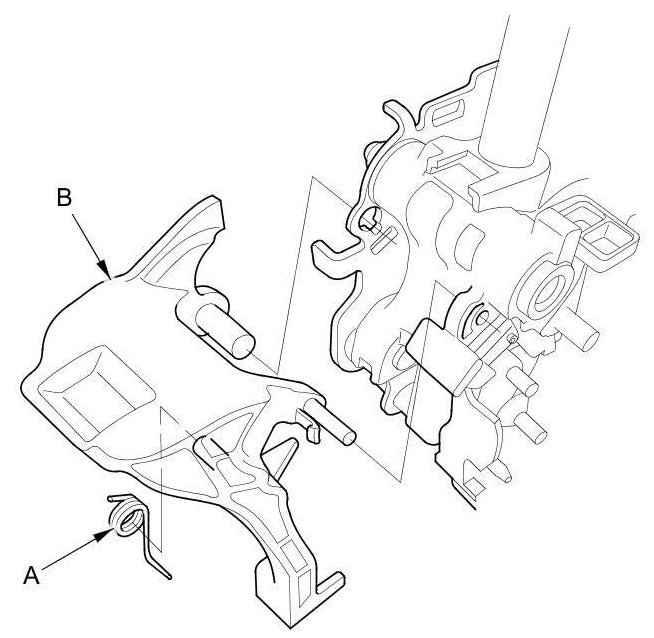

5. Remove the release spring (A) from the shift lock release (B).





6. Replace the shift lock release or the release spring.

7. Install the shift lock release spring in the shift lock release.

8. Install the shift lock release on the shift lever.

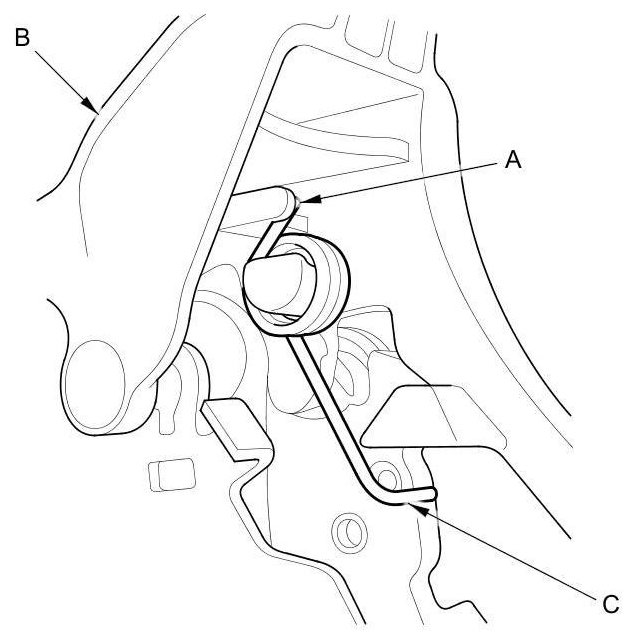

9. Make sure that the release spring end (A) is installed in the shift lock release (B), and the hooked end (C) of the release spring is on the shift lever bracket as shown.





10. Install the shift lever boot and the shift lever boot base A/T Shift Lever Boot And Shift Lever Boot Base Replacement (A/T).

11. Install the shift lever knob A/T Shift Lever Knob Replacement.

12. Install the shift lever assembly A/T Shift Lever Installation.
