Windshield Washer Motor: Service and Repair

Washer Motor/Reservoir Replacement

1. Remove the right front inner fender Front Inner Fender Replacement.

2. Disconnect the 2P connector(s) (A) from the windshield washer motor (B), washer fluid level switch (Canada models), and the headlight washer motor (with headlight washer).

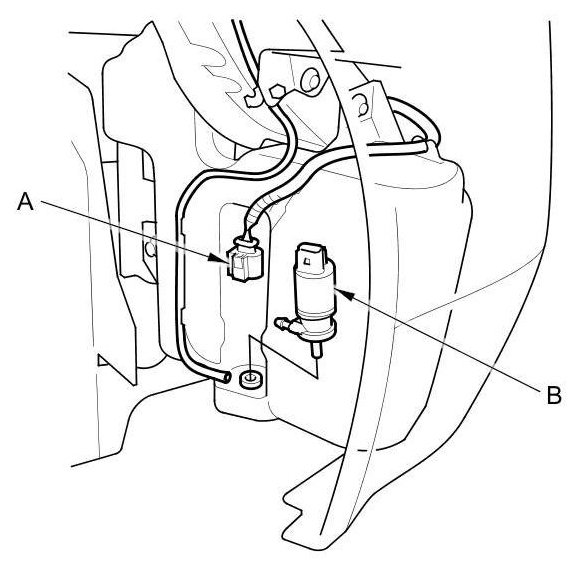

USA models

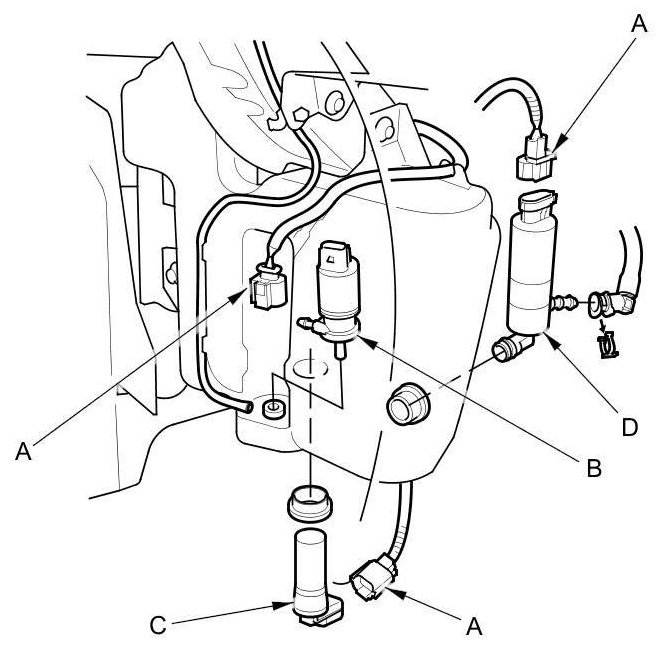

Canada models





3. Disconnect the washer tube(s), then if necessary, remove the washer motor, the washer fluid level switch (C) (Canada models), and the headlight washer motor (D) (with headlight washer).

NOTE: Fluid may flow out of the opening.

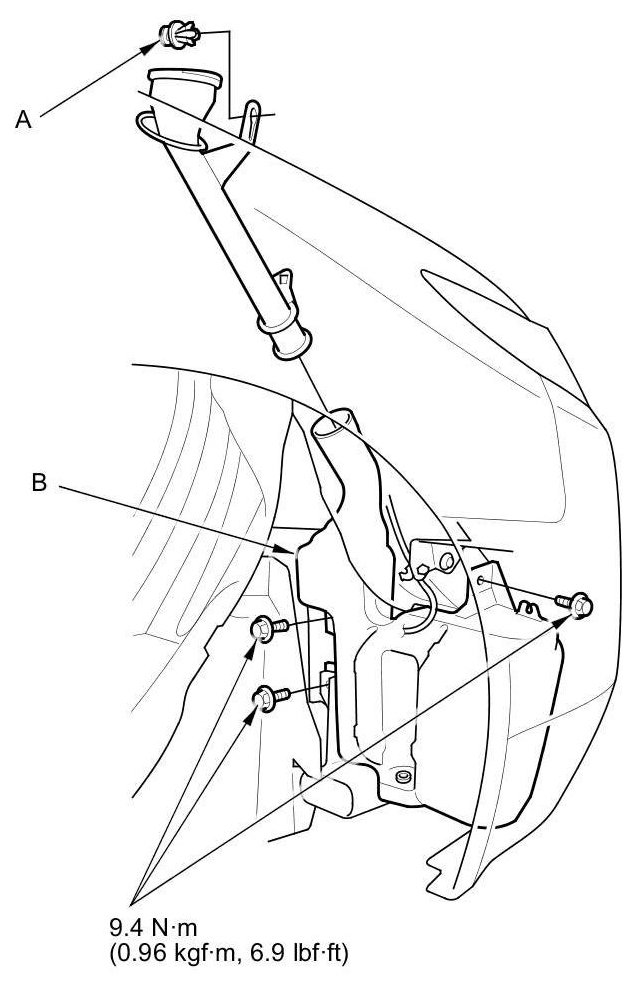

4. Remove the clip (A) and three bolts from the washer reservoir (B).





5. Install the washer reservoir in the reverse order of removal. Check the washer motor operation.
