Fuse: Locations
Fuse Locations

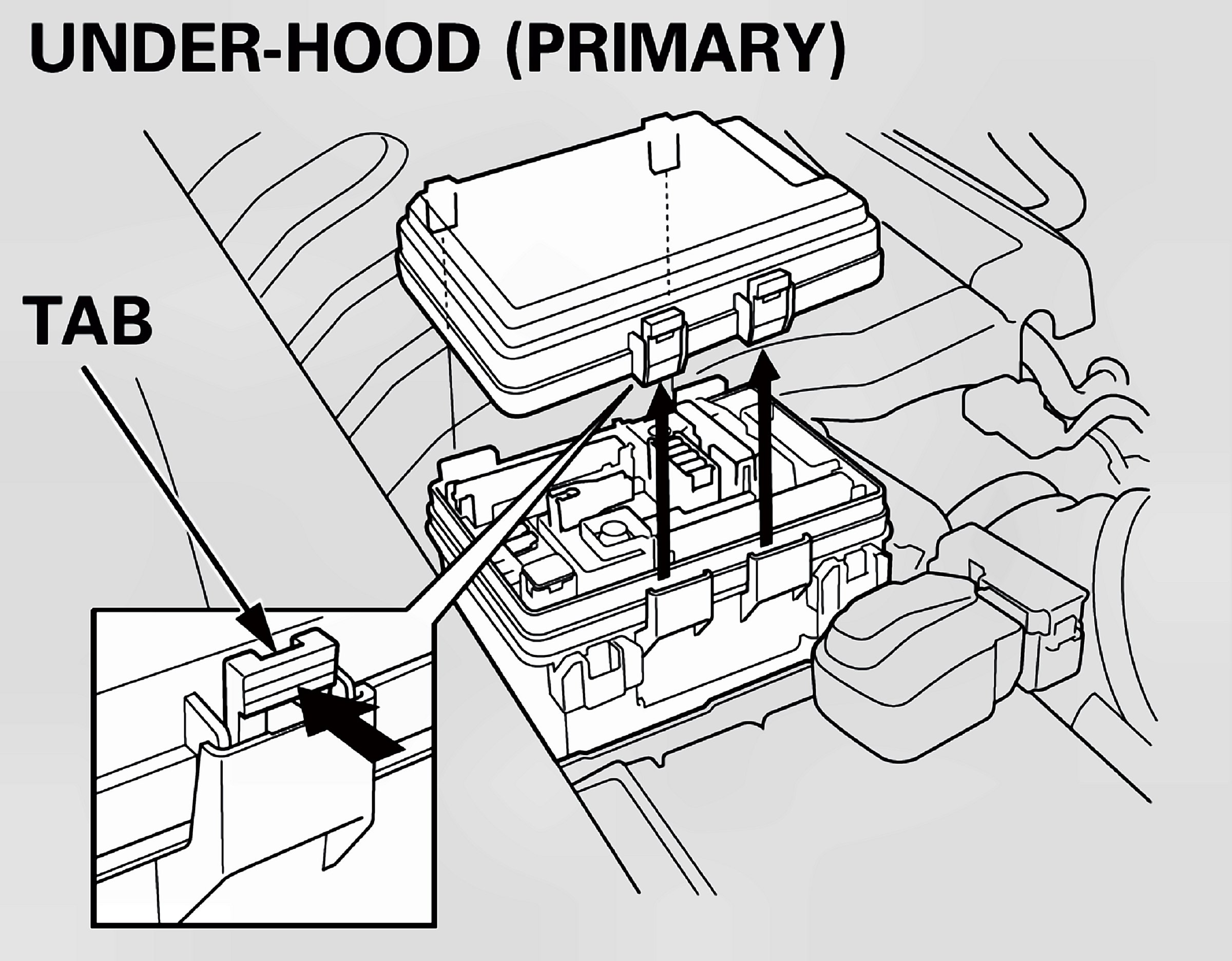

Under-Hood (Primary) Fuse Box
Location:

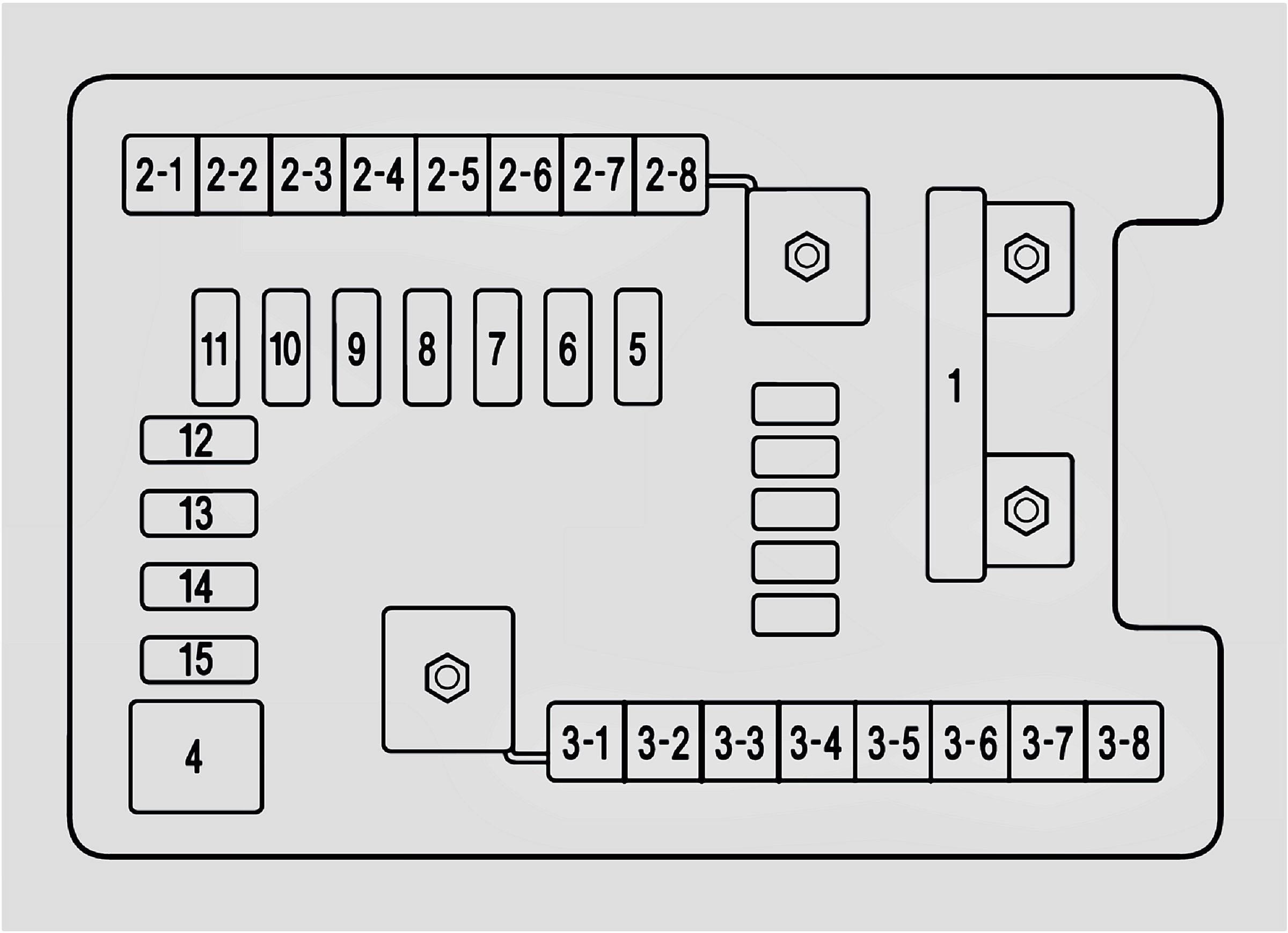

Fuse Location:

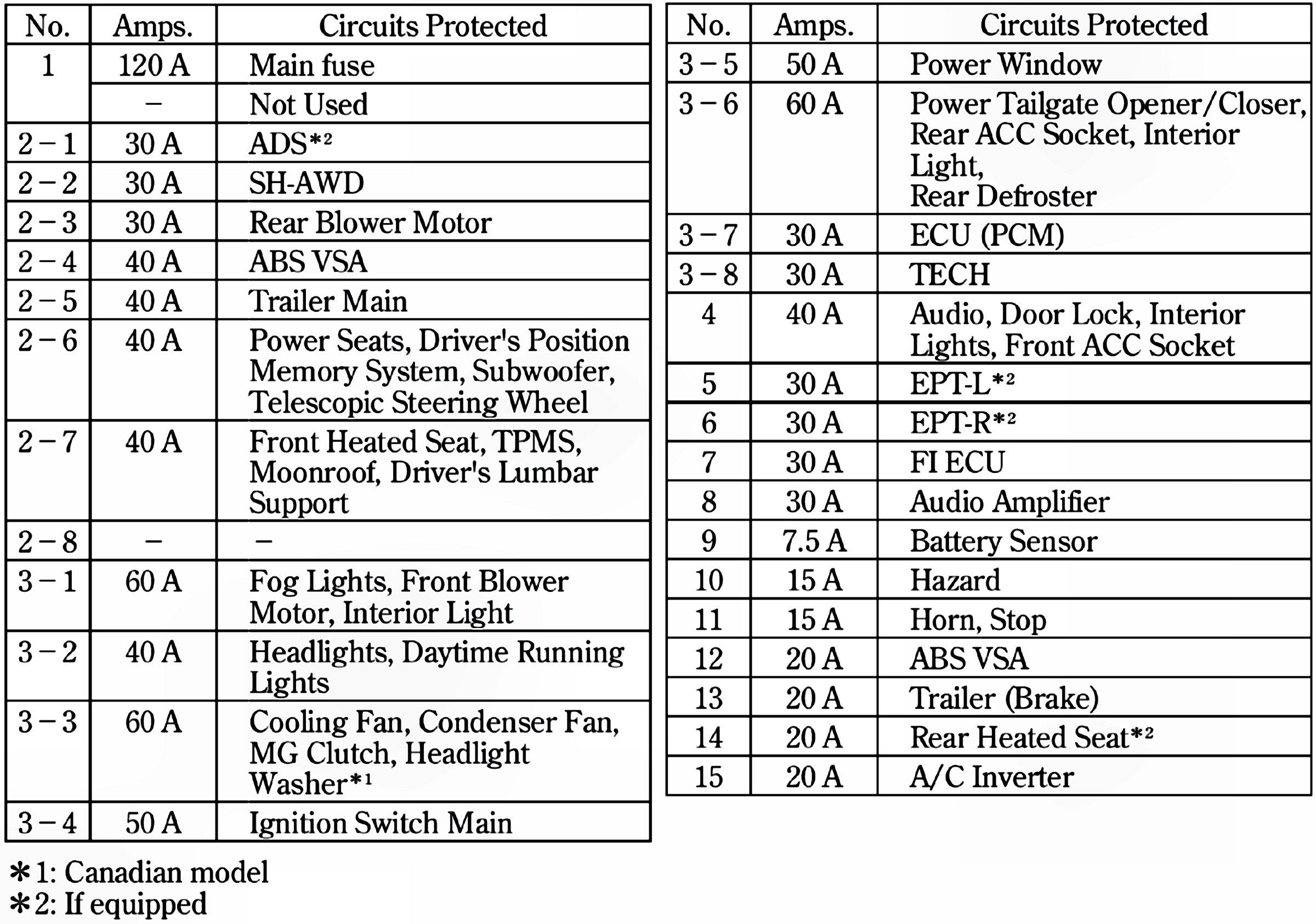

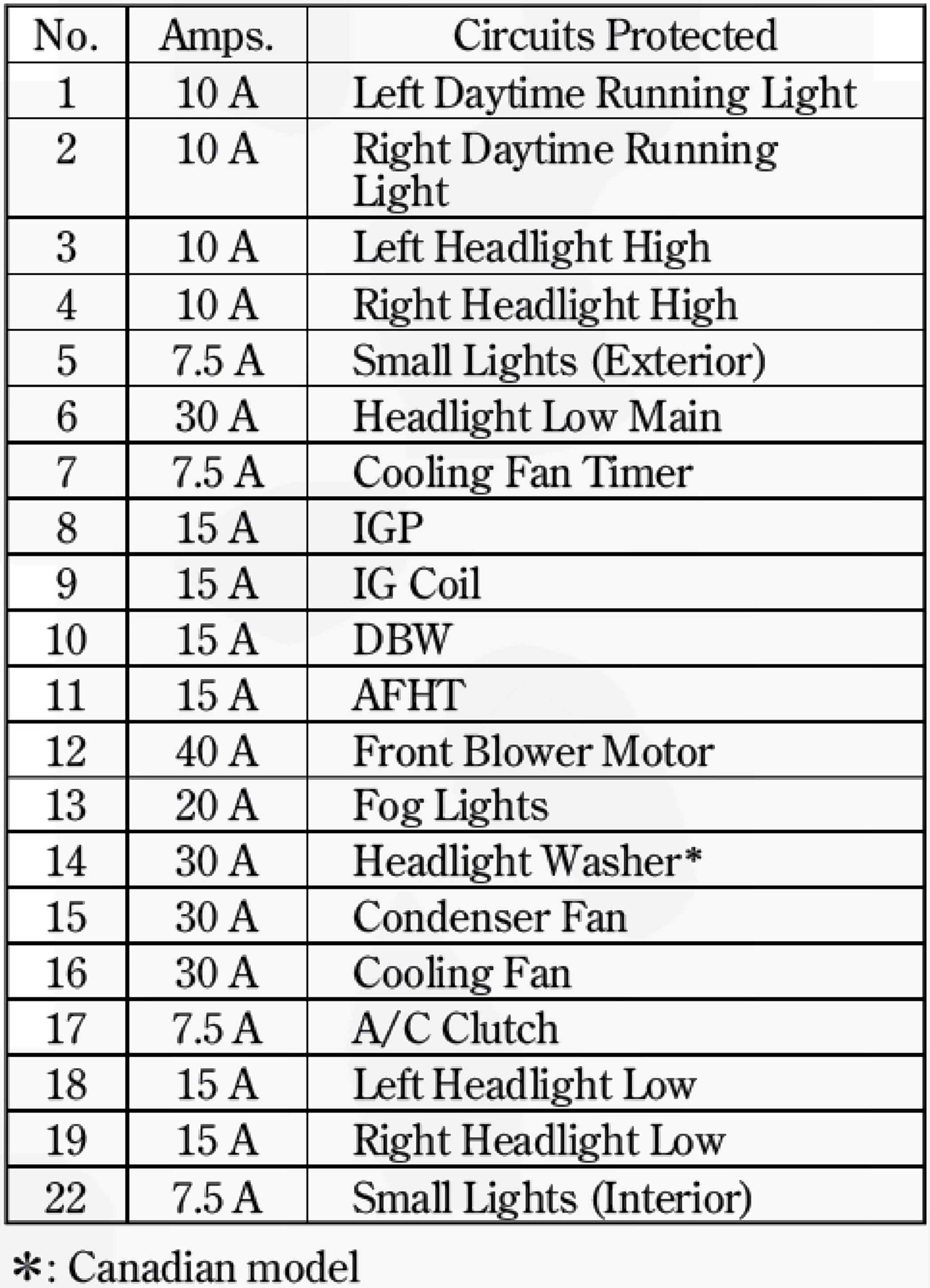

Fuse To Component:

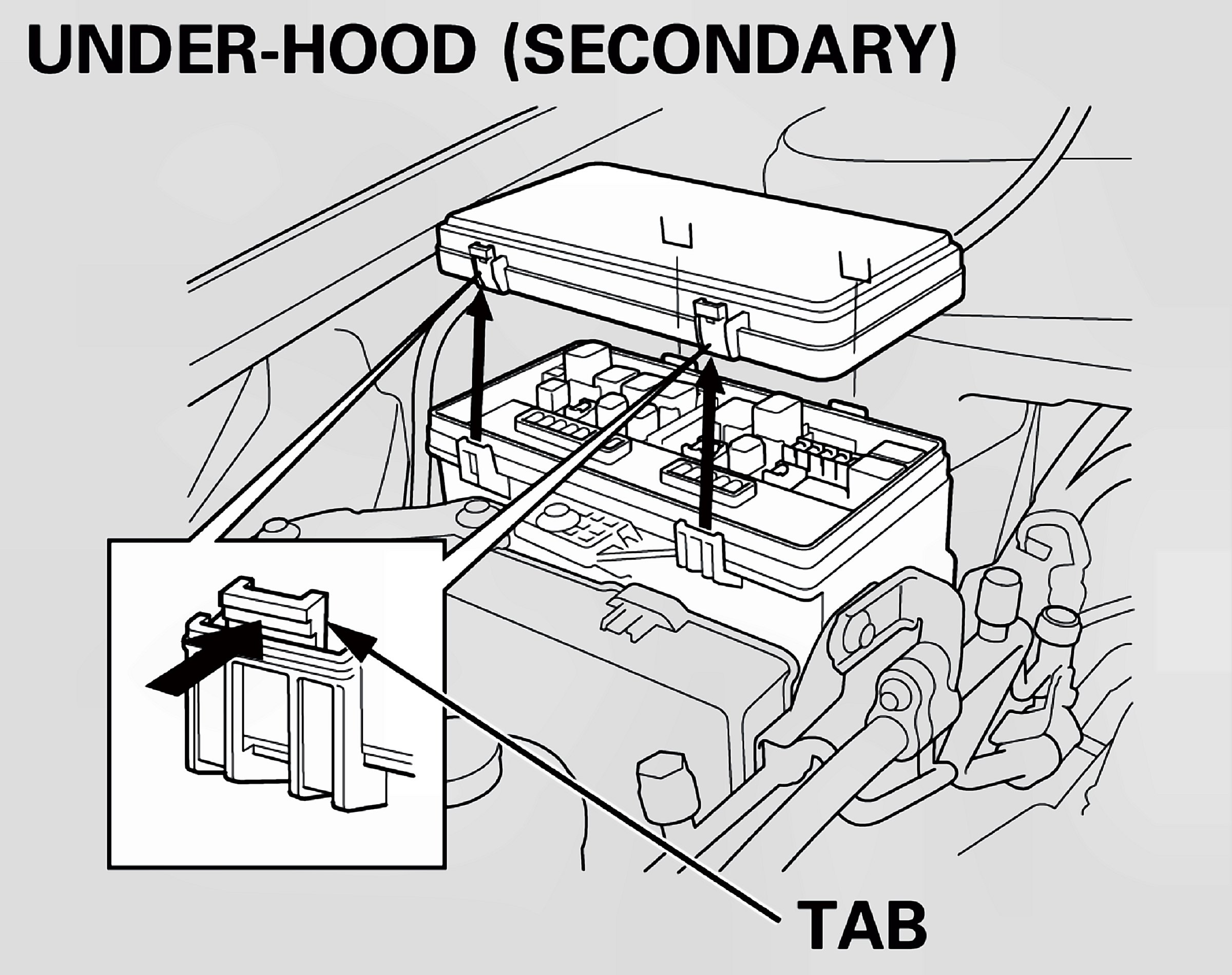

Under-Hood (Secondary) Fuse Box
Location:

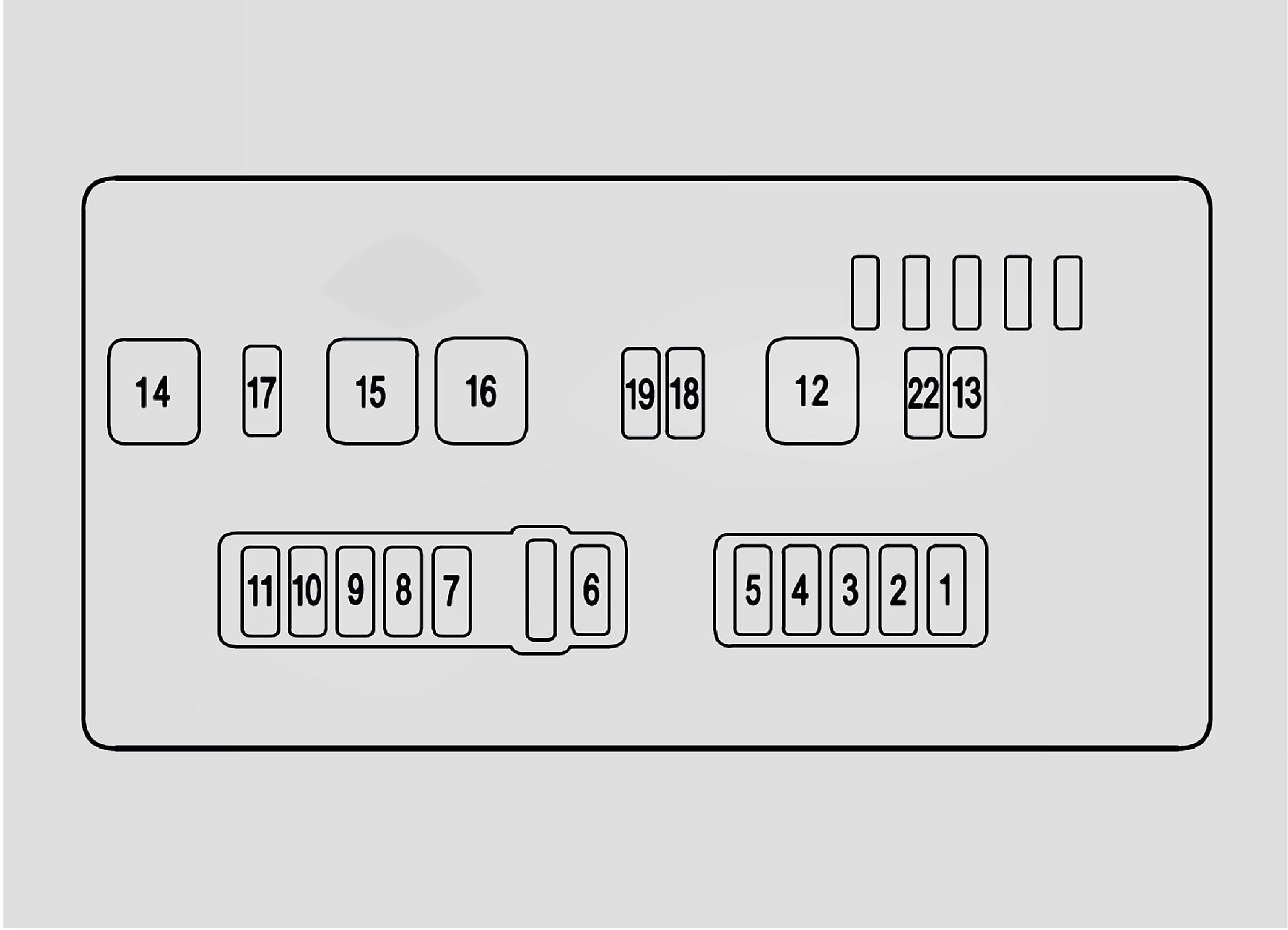

Fuse Location:
Fuse To Component:

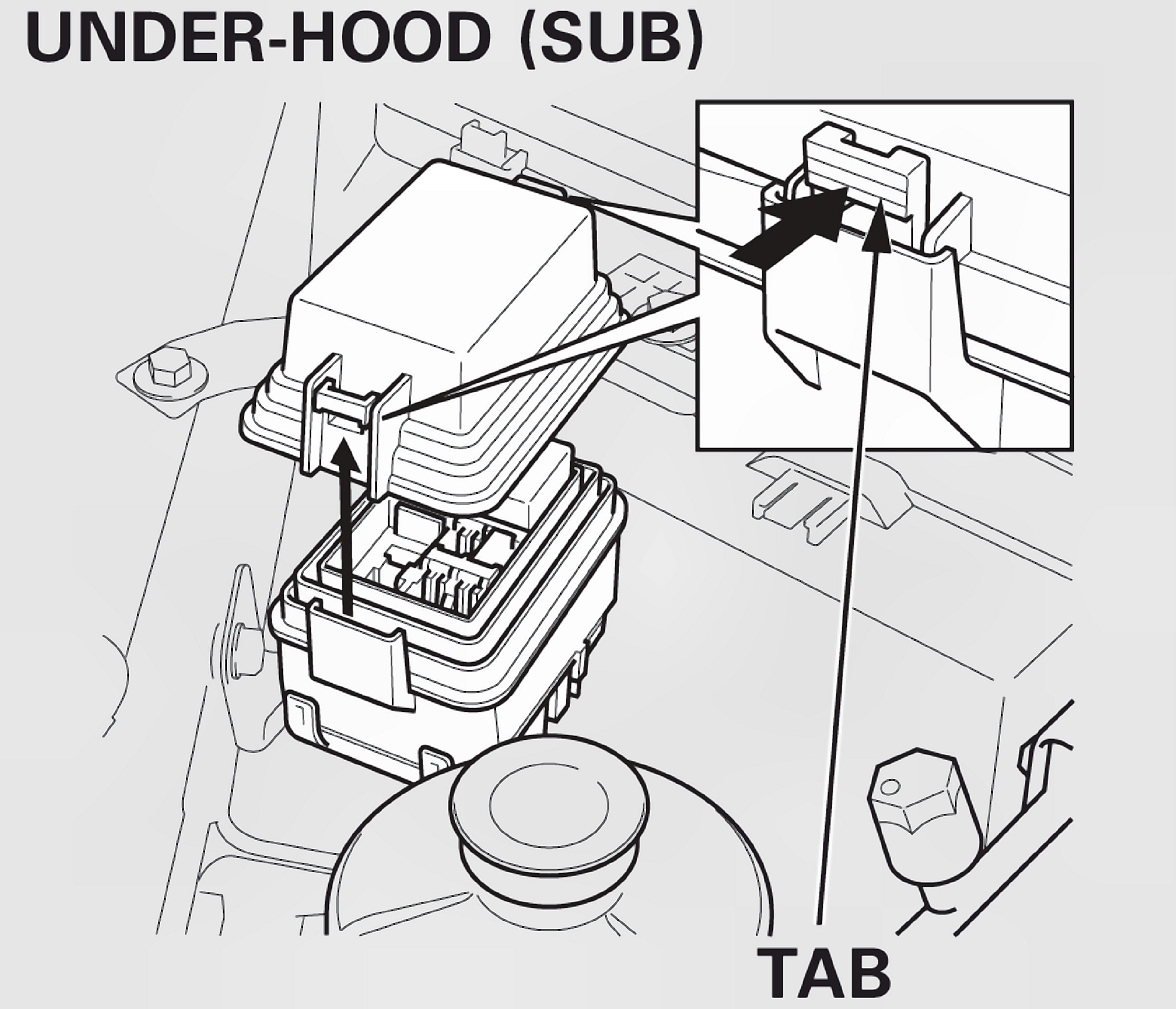

Under-Hood (Sub) Fuse Box
Location:

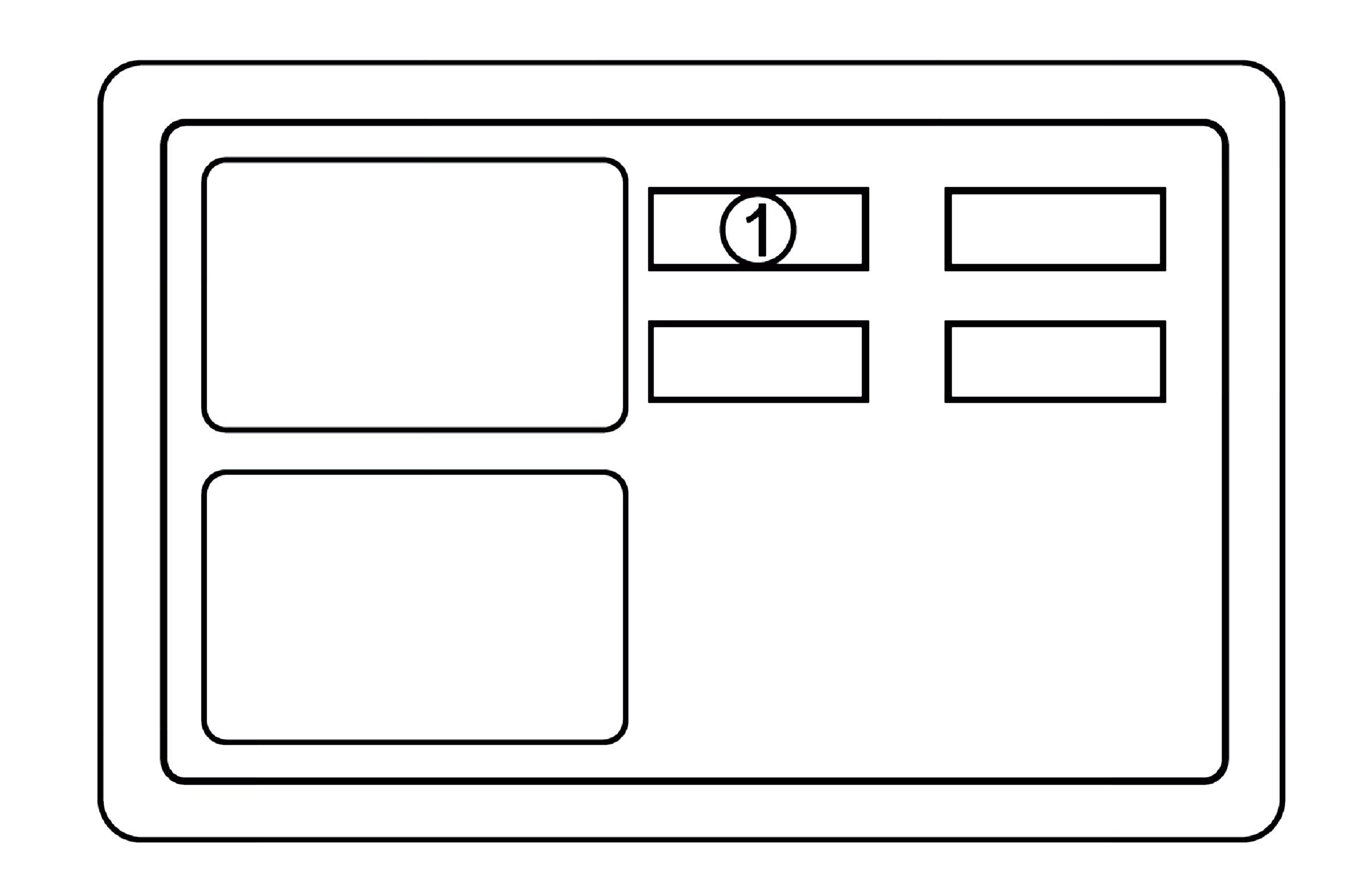

Fuse Location:

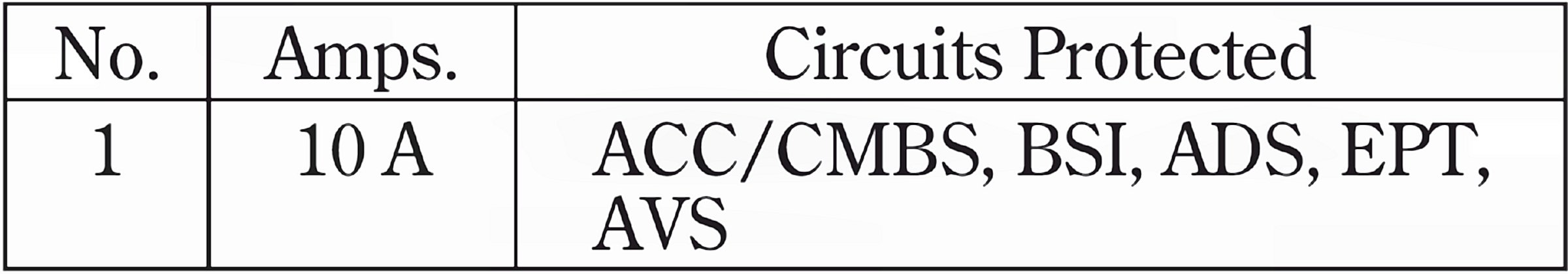

Fuse To Component:
Rear Fuse Box
Location:

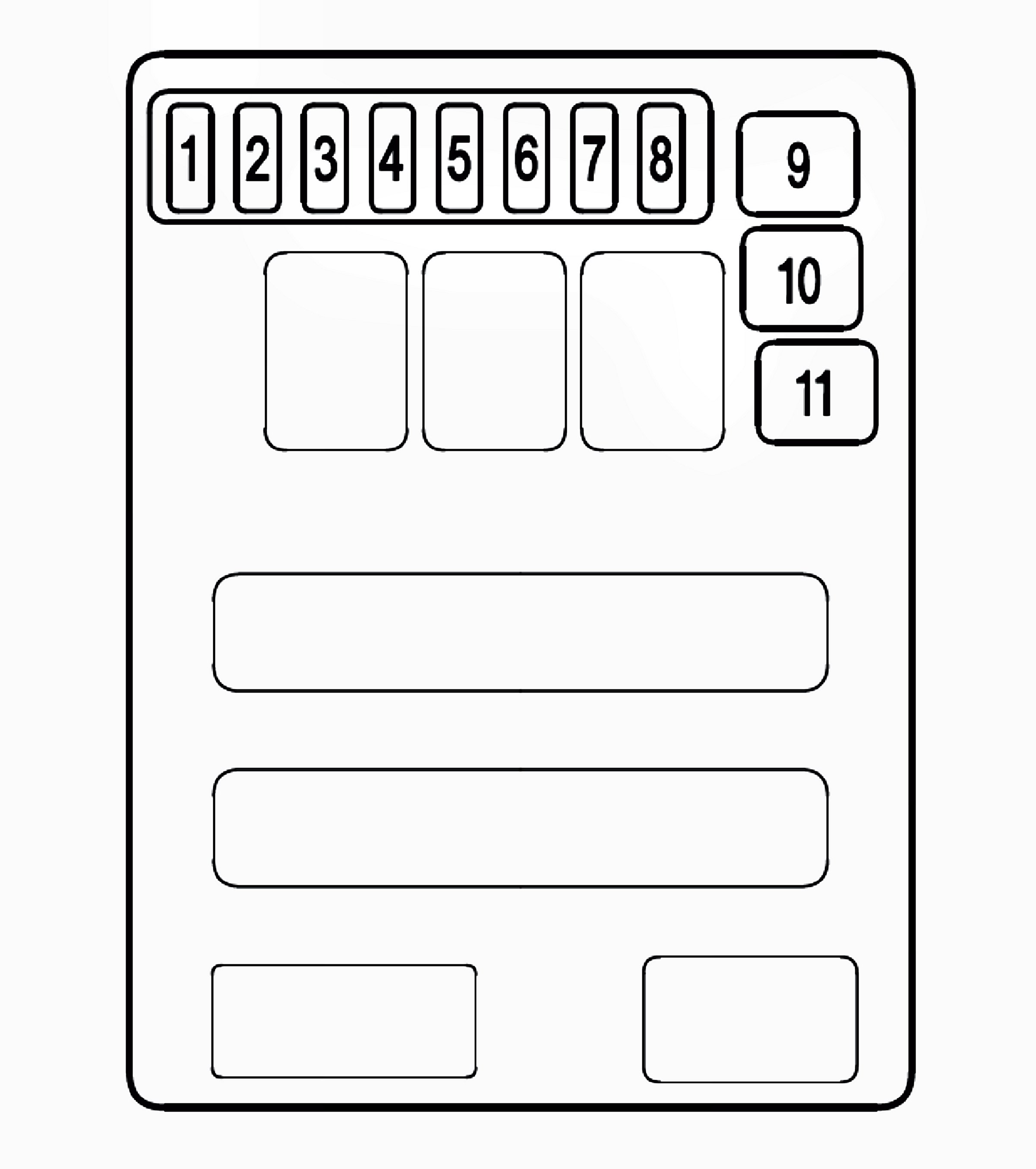

Fuse Location:

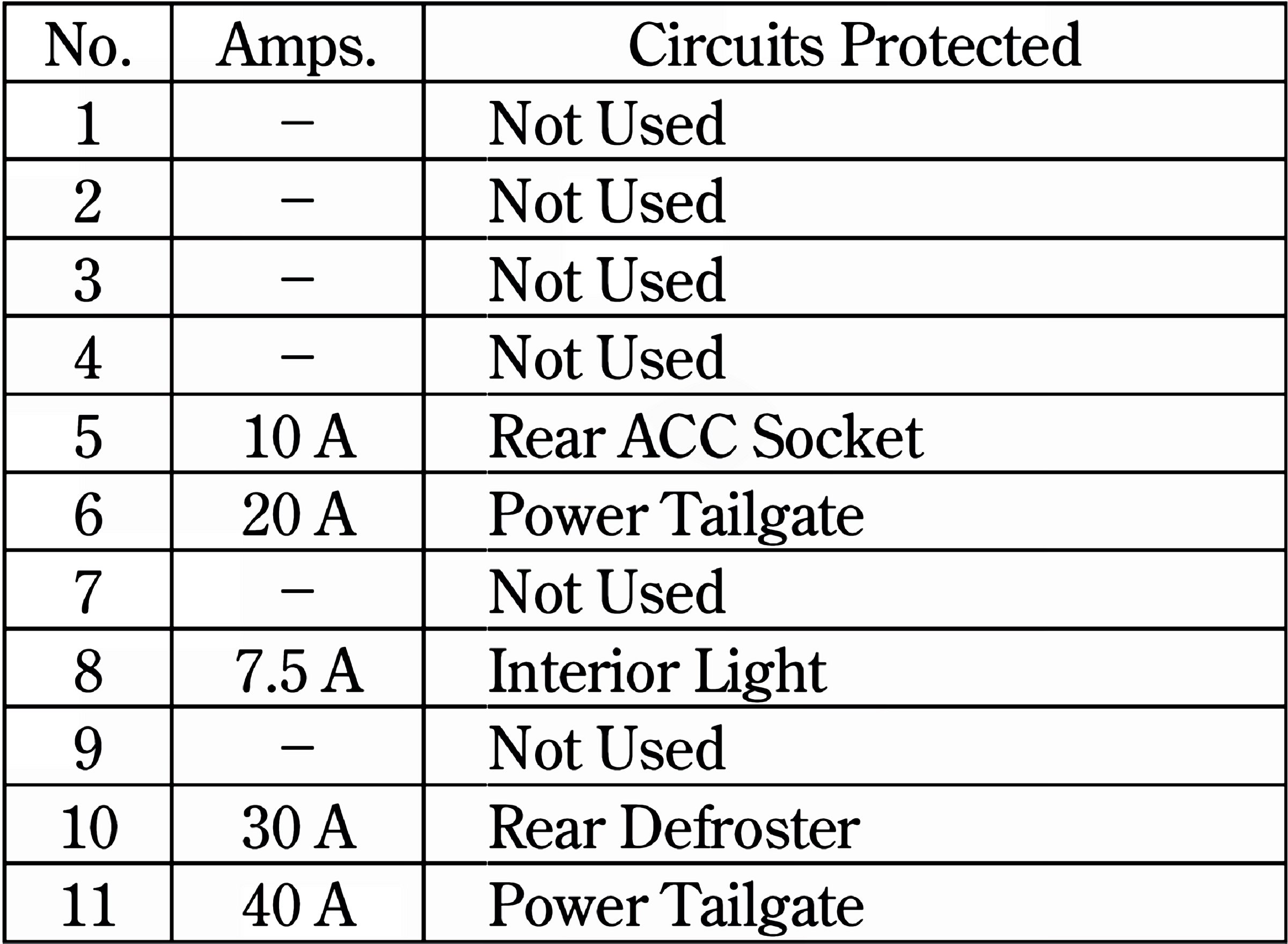

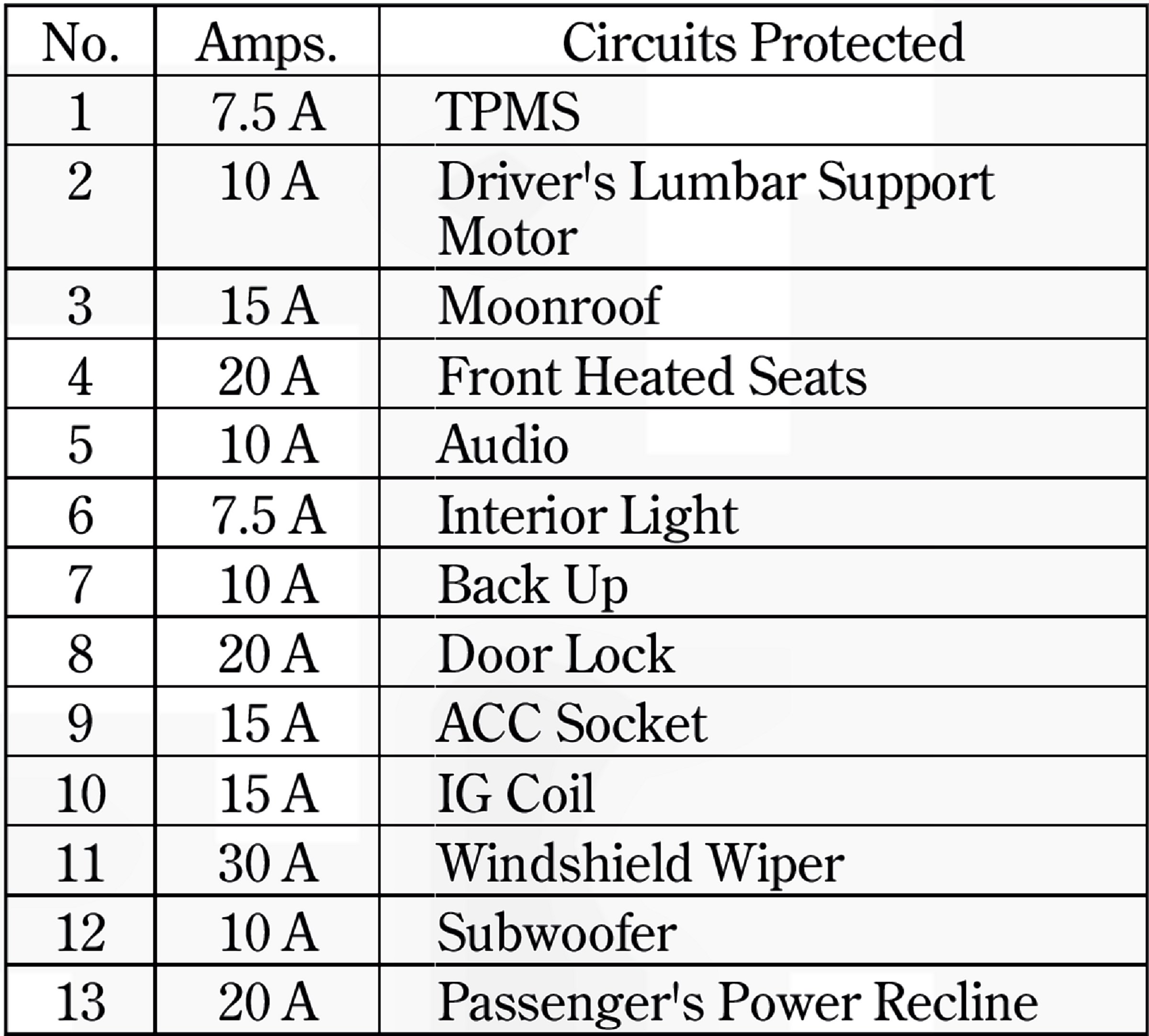

Fuse To Component:

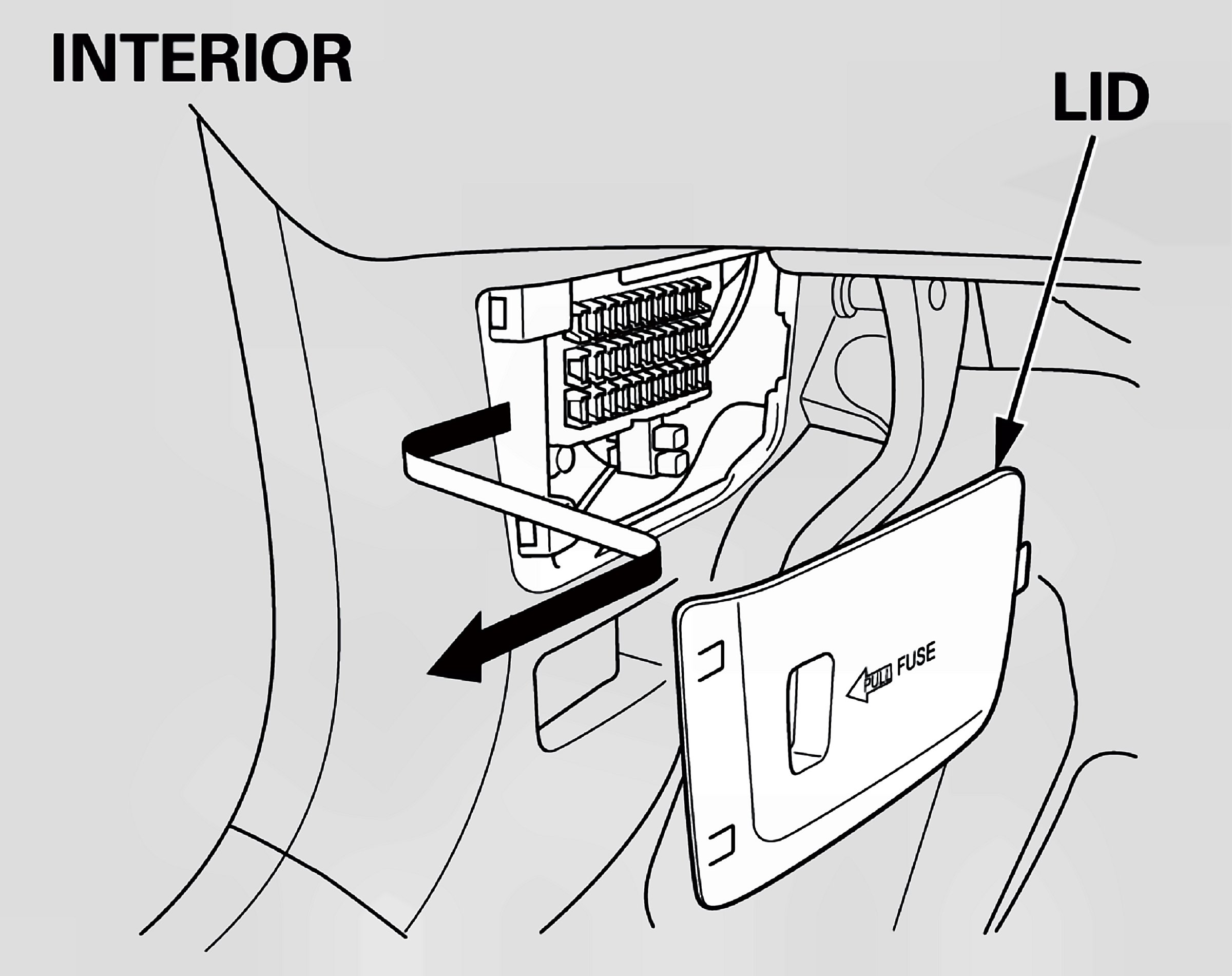

Interior Fuse Box
Location:

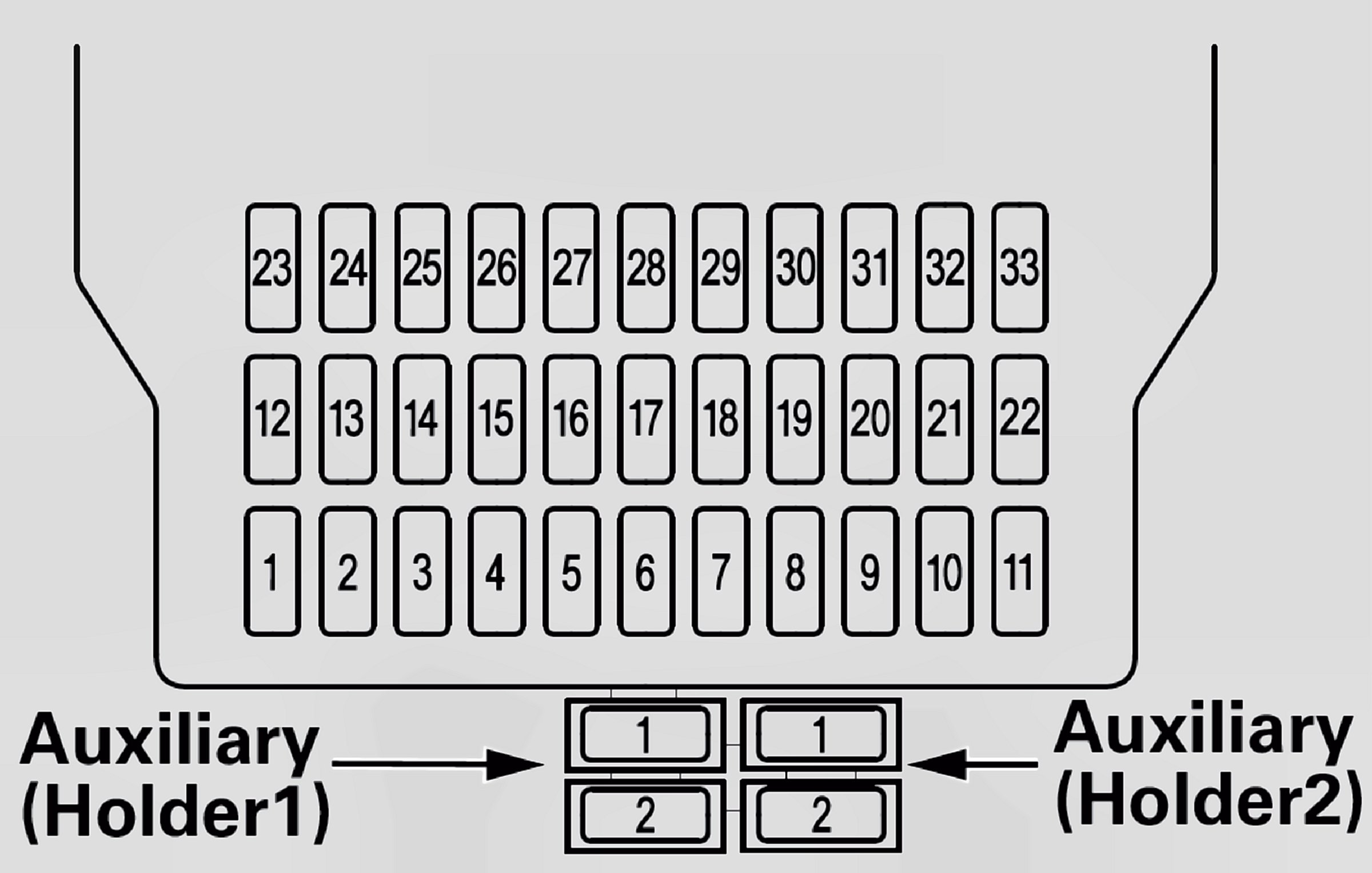

Fuse Location:
Fuse To Component:
Fuse To Component Cont.:

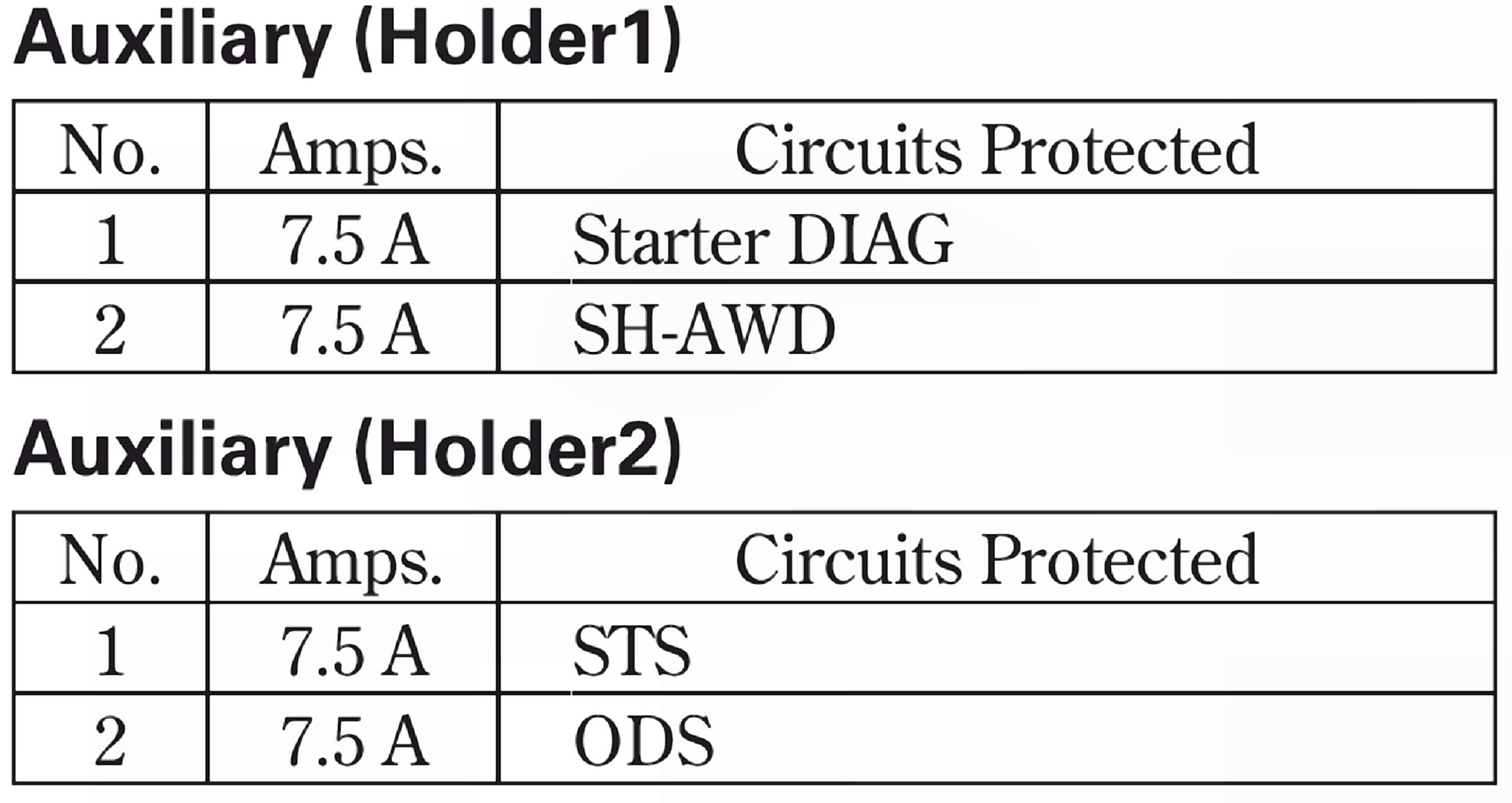

Auxiliary Holders:
