With 4 Speed Automatic Transmission

The A/C kick-down function will switch Off the A/C compressor for 12 seconds when activated. This is done by either a kick-down switch or by the automatic transmission control unit.

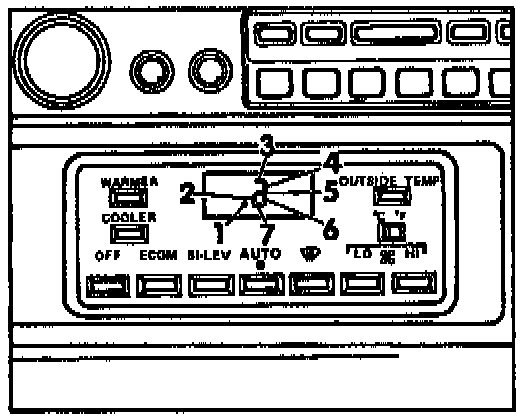

Kick-down Function, Control Display:

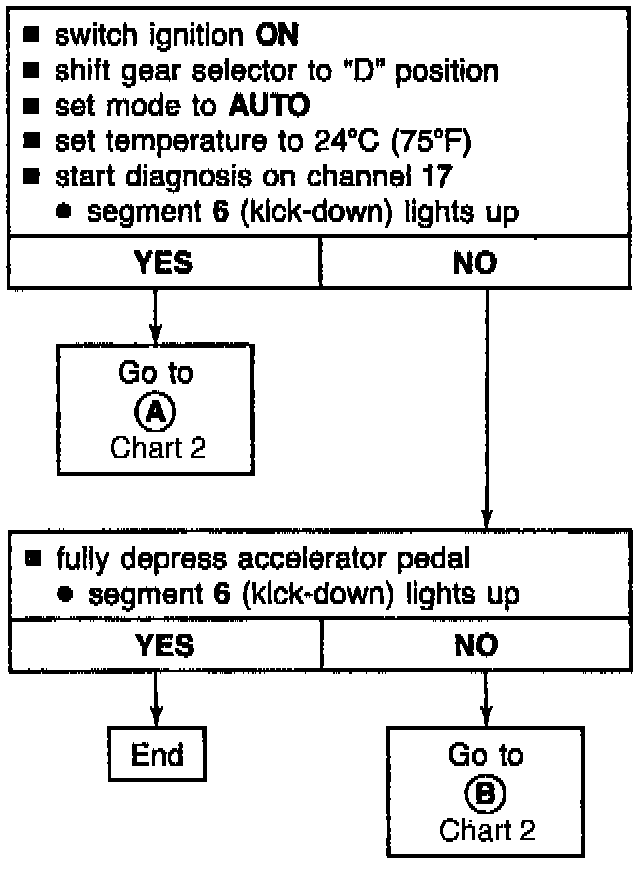

Kick-down Function, Chart 1 Of 3:

Chart 1 of 3

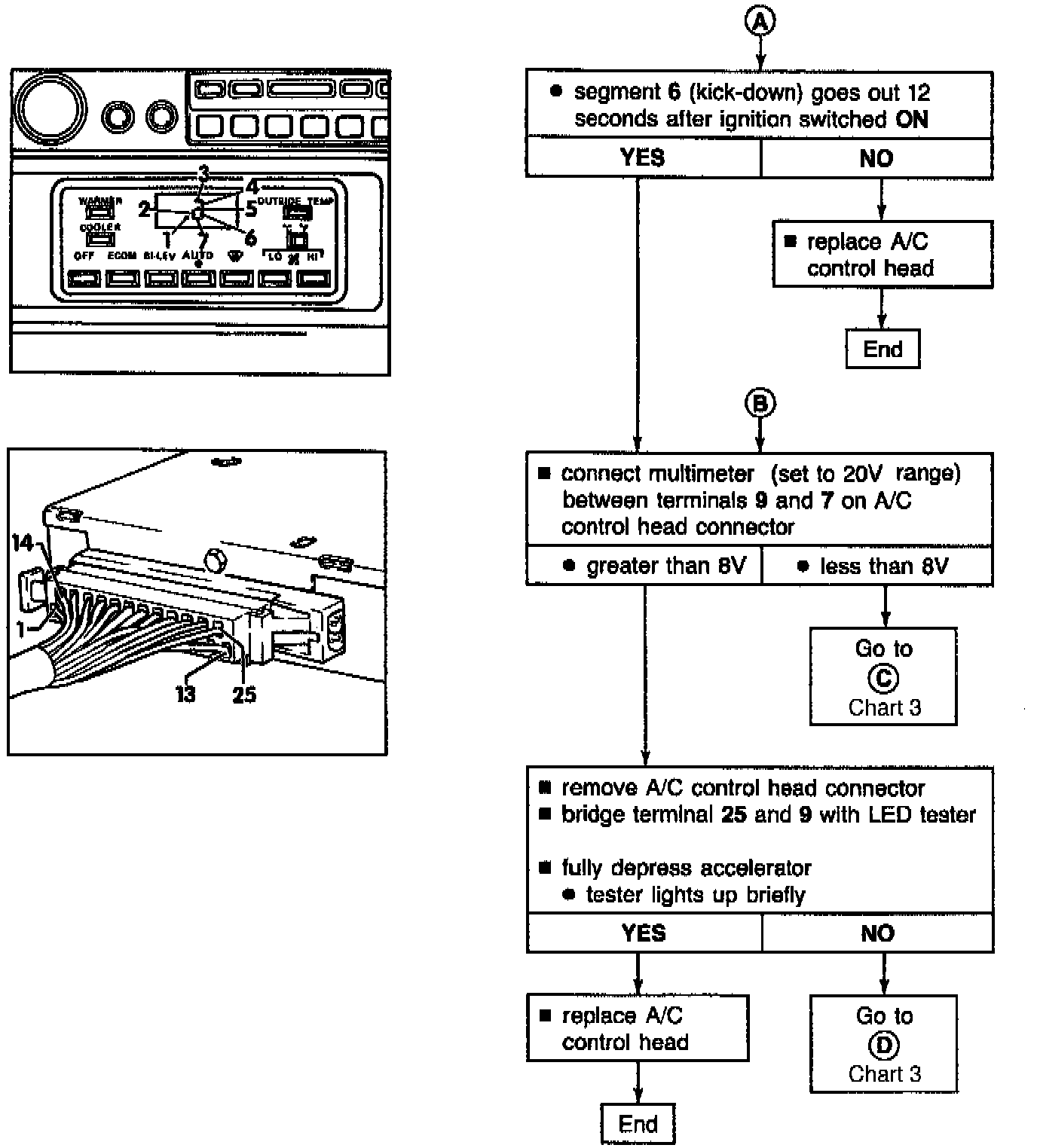

Kick-down Function, Chart 2 Of 3:

Chart 2 of 3

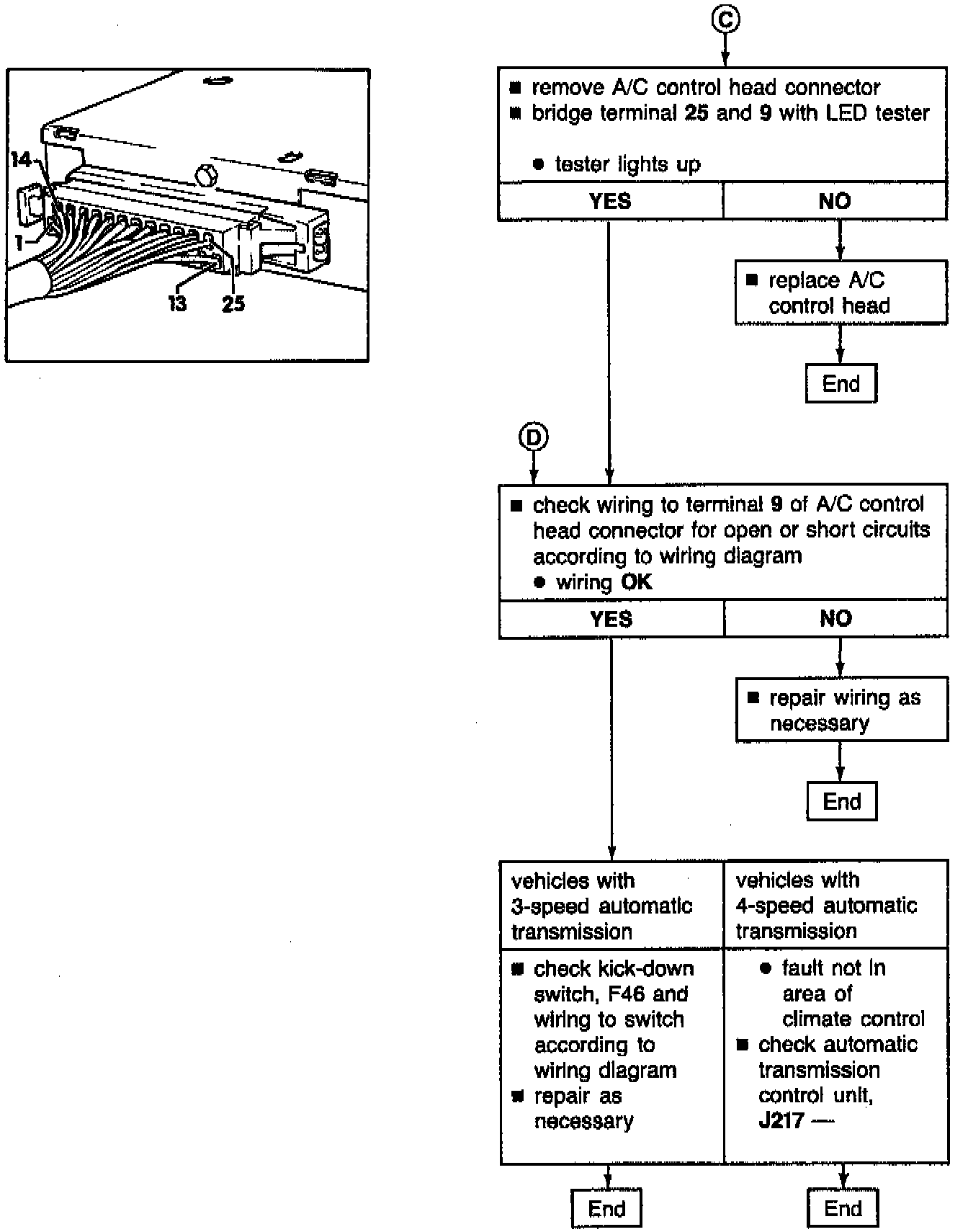

Kick-down Function, Chart 3 Of 3:

Chart 3 of 3
