Engine/Transmission - Tightening Torques Revised

Group: 37
Number: 92-09
Date: December 31, 1992

Subject:
Revised engine/transmission tightening torques

Models:
All Audi vehicles with 5- and 6-cylinder engines
Engine/transmission, mounting

CAUTION

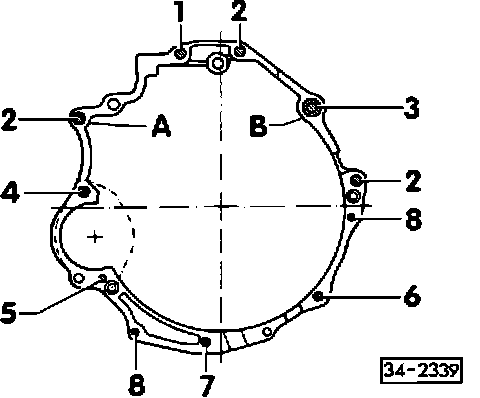

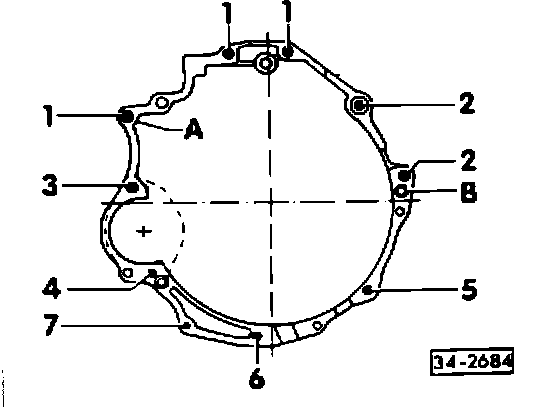

Before installing an engine, be sure that the dowel sleeves are in place (see items A and B in next two illustrations).

For some replacement transmissions paired with 5-cylinder engines, an offset dowel sleeve (Part No. 012 301 153) may be required.

When installing a new engine, check for the presence of a bushing in the crankshaft. This bushing must be driven in first, before installing the drive plate.

Part numbers are for reference only. Always check with your Parts Department for latest information.

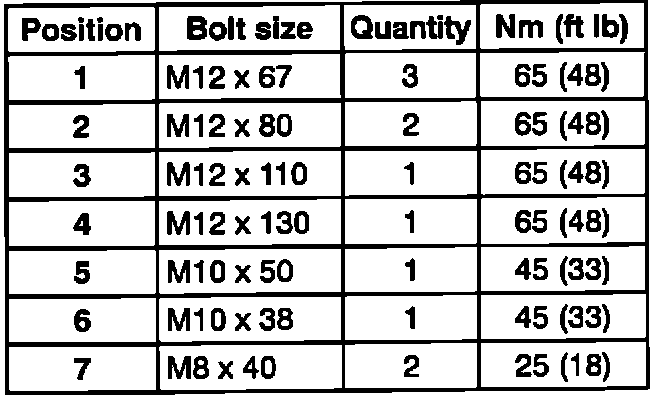

Tightening torques (5-cylinder engines)

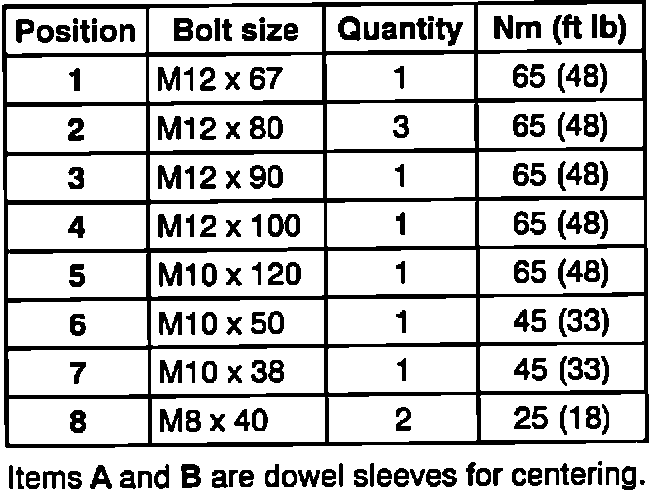

Tightening torques (6-cylinder engines)



Items A and B are dowel sleeves for centering.
