Check Valve
Hydraulic Fluid Accumulator, check valve, checkingTest condition:
- no leaks in brake servo unit
Work sequence
- with engine not running, press brake pedal about 20 times to reduce pressure in system

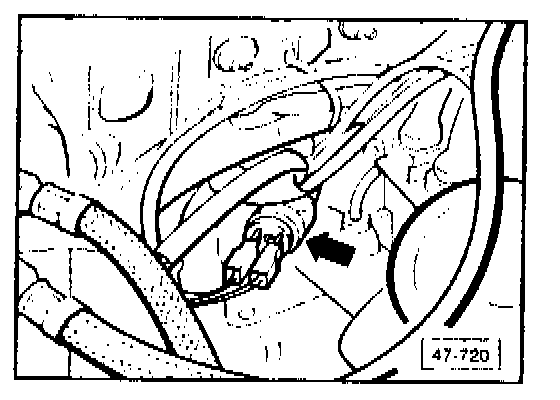

- disconnect wires on warning light switch and remove switch (arrow)

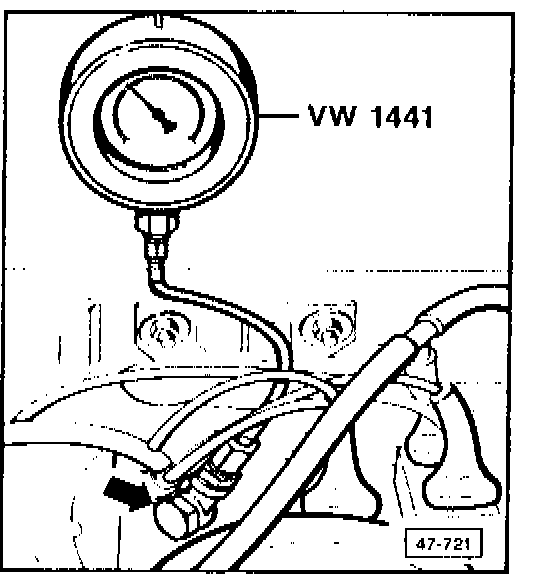

- attach pressure gauge with hollow bolt and copper washers to brake servo unit
NOTE: Attach thick copper washer between brake servo unit and banjo fitting and thin copper washer between hollow bolt and banjo fitting
- start engine and let idle until pressure gauge reads approx. 140 bar (2030 psi)
- turn ignition OFF
- pump brake pedal until pressure drops to 135 bar (1957 psi)
- operating pressure should not drop below 130 bar (1885 psi) within 5 minutes
- if pressure drop is more, check-valve is leaking. Replace pressure accumulator
- with engine not running, press brake pedal about 20 times to reduce operating pressure
- remove pressure gauge
- install brake light warning switch and reconnect wire connectors
- check all connections for leaks
