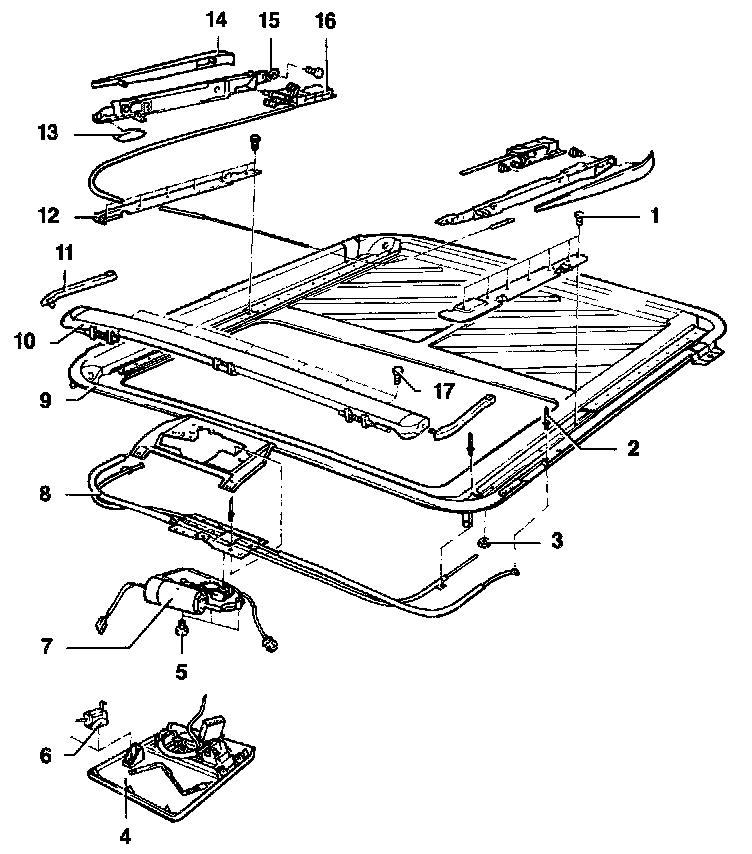

Coupe With Power Glass Sunroof

1. Screw

2. Pop-rivet
Drill out to remove cable guide tubes

3. Nut

4. Sunroof drive cover
With automatic preselector switch

5. Bolt w/washer 2.0-3.0 Nm (17.7-26.6 in lb)

6. Temperature sensor

7. Sunroof motor w/automatic preselector
checking "0" position

8. Cable guide tube
Drill out rivets 2 to remove

9. Sunroof frame
Remove headliner panel first

10. Wind deflector
Remove tilt linkage 11 first, then remove screws 17

11. Tilt linkage
12. Guide channel
13. Slide

14. Side cover
To adjust, tilt up sunroof panel, press side cover upwards to make contact with roof panel seal and tighten screws

15. Guide wtth lift channel

16. Rear guide with cable
Removing, remove sunroof panel and guide with channel
removing rear guide from guide plate

17. Screw
