Instrument Panel Center Section, Removing/Installing
Instrument panel center section, removing/installingRemoving
^ remove center console Service and Repair
^ pull off three control knobs for ventilation controls
^ unscrew and remove trim panel
^ remove radio

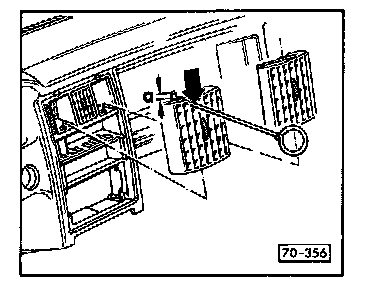

^ pull out swivel fittings on left and right with bent wire
^ a = 3-4 mm (1/8-5/32 in)
^ insert tool at the top to the right or left of the center section and behind the swivel fitting housing edge

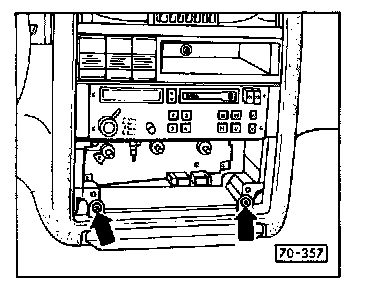

^ remove Phillips screws and press ashtray down slightly
^ unscrew center section and remove
^ detach connector from switch or radio
Installing
Install in reverse order.
