Compressor HVAC: Diagrams

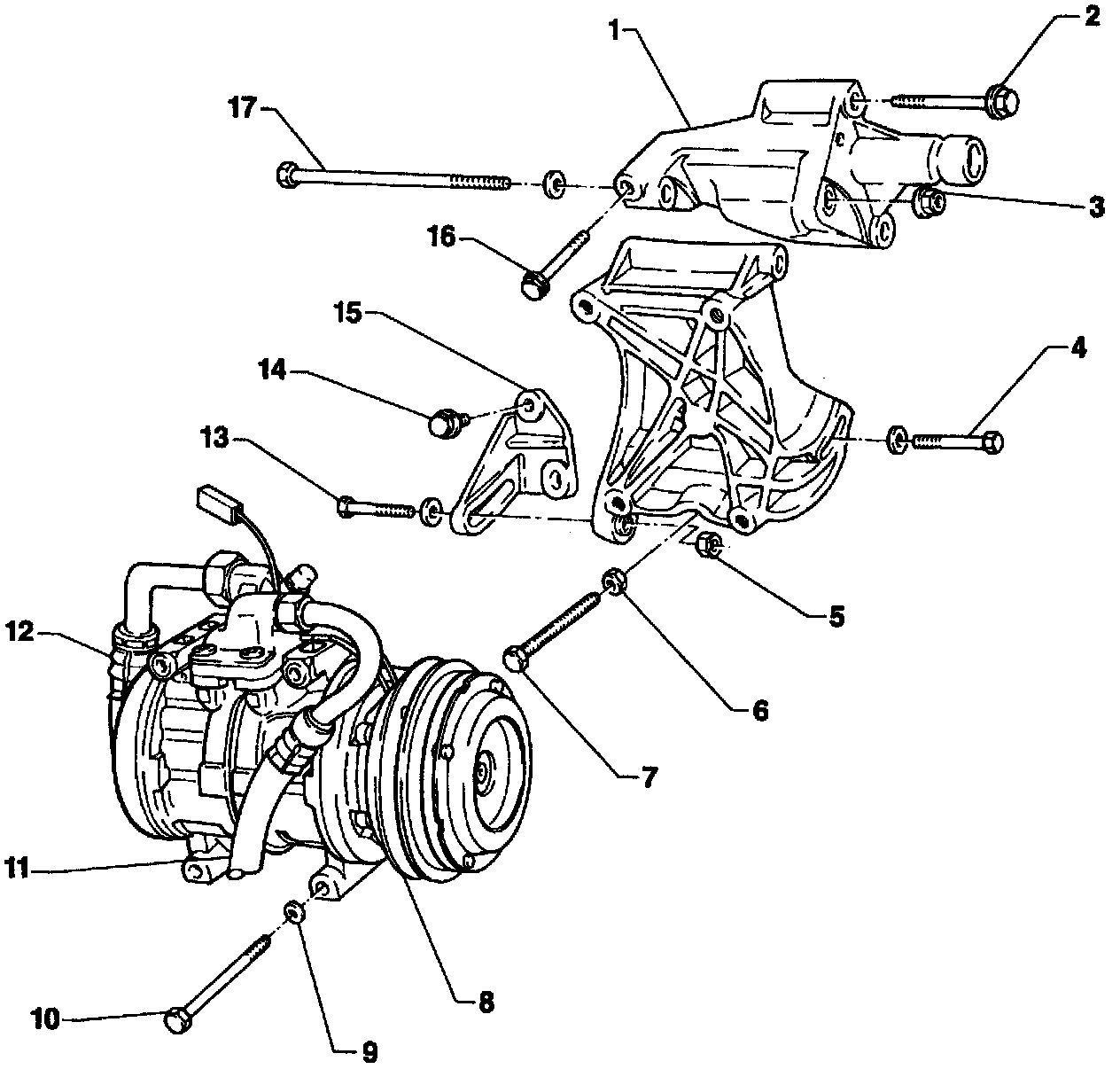

A/C Compressor And Mountings (5 Cylinder):

1. Bracket
2. Bolt/washer assembly
3. Self locking nut
4. Bolt
5. Self locking nut
6. Nut
7. Bolt for adjusting belt tension
8. A/C compressor and clutch
9. Washer
10. Bolt
11. A/C refrigerant high pressure hose
12. A/C refrigerant low pressure hose
13. Bolt
14. Bolt and washer assembly
15. Angle bracket
16. Bolt and washer assembly
17. Bolt
