Read Measuring Valve Block (Function 08)

Carrying out "Read Measuring Value Block" function 08

Indicated on display


Rapid data transfer HELP
Select function XX


- Press buttons -0- and -8- to select "Read Measuring Value Block" function 08.

Indicated on display


Rapid data transfer Q
08 - Read Measuring Value Block


- Press -Q- button to confirm input.

Indicated on display


Read Measuring Value Block
Input display group number XXX


- Press buttons -0-, -0- and -1- to input display group number 1 (001).
- Press -Q- button to confirm input

The selected measuring value block is now indicated in standard format. Evaluation shown below.

Read Measuring Value Block, Overview

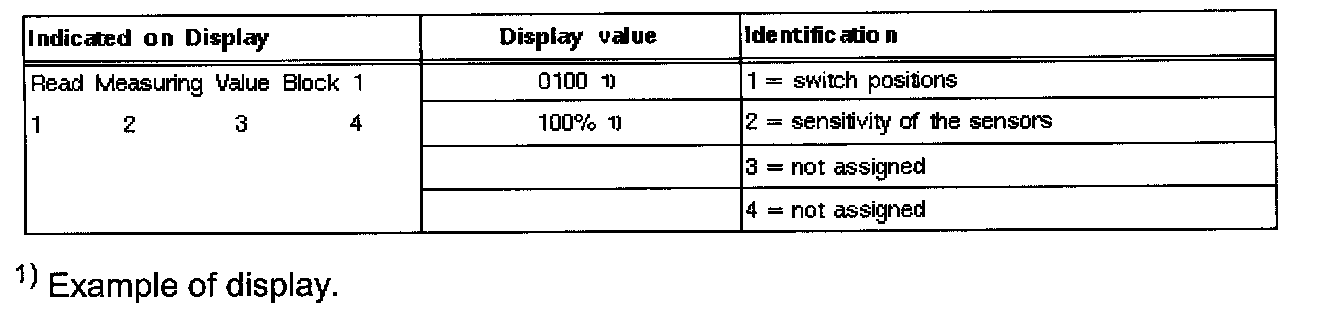

Display Group 001:

Display Value Table:
