Door Lock (Up To M.Y. 1999 VIN 8D XA 200 000)

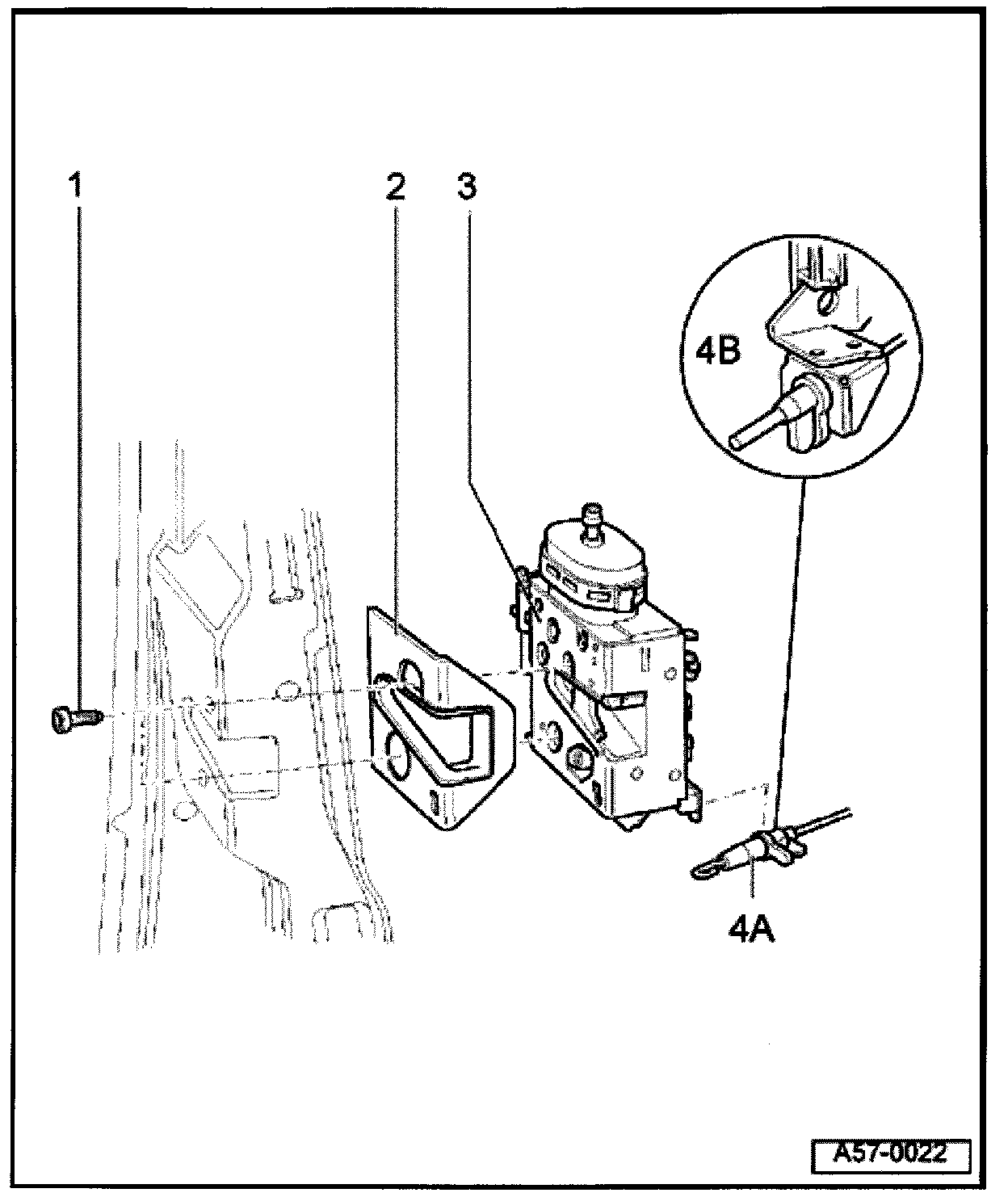

Door Lock (Up To M.y. 1999 VIN 8D XA 200 000) Removing And Installing







1 - Bolts (2x)
- 9.5 Nm (84 ft lb)
2 - Intermediate plate for lock
3 - Door lock
Removing:
- Remove door component carrier.


NOTE: If the cover for the door component carrier was not installed, the door component carrier does not need to be removed to remove the door lock.


- Remove cover for door lock.
- Unclip operating rods.
- Detach connection hose from actuator for central locking.
- Remove bolts -1-.
- Remove door lock and intermediate plate for lock -2-.

Installing:
- Install in reverse order of removal.

4 - Bowden - cable for interior door mechanism
Removing:
- Remove door component carrier.
- Remove cover for door lock.
- Unhook bowden cable (bowden cable shown in inset is unhooked), unclip downward and disengage from door lock.

Installing:
- Install in reverse order of removal.
