Seat Frame, Removing and Installing

Seat Frame, Removing And Installing







WARNING: Before starting work on seats, connect VAS 5094 airbag adapter.

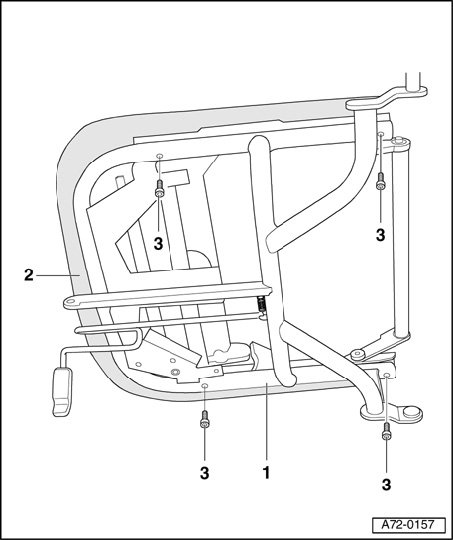

1 - Seat frame
Removing:
- Remove seat.
- Place seat so underside of seat cushion is easily accessible.
- Disconnect tie wraps that are attached to seat frame.
- Unbolt bracket for harness connector (two bolts).
- Unbolt both relays (2x).
- Unbolt bolts - 3 - (4x) on seat frame - 1 -.
- Remove seat frame - 1 - from seat - 2 -.
Installing:

NOTE: Always replace bolts - 3 -.

- Place new seat frame - 1 - on seat - 2 -.
- Tighten bolts - 3 - (4x) to 23 Nm (17 ft.lb).







2 - Seat
3 - Bolts (4x)
- 23 Nm (17 ft.lb)
