Side Seat Trim Bracket, Removing and Installing

Side Seat Trim Bracket, Removing And Installing

WARNING: Before starting work on seats, connect VAS 5094 airbag adapter.

- Move seat to upper-most position.
- Remove seat.
- Remove side seat trim.

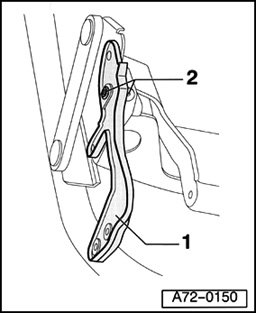

- Drill though both rivets - 2 - at front of side seat trim bracket - 1 - and remove bracket.
