Selecting Functions

The communication link was established. The control module version has been checked and the (arrow) button was pressed.

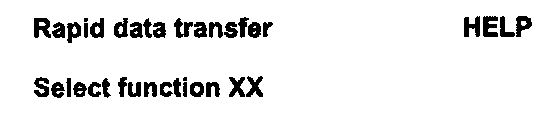

Indicated on display:(function selection, for example 02 "Check DTC Memory")

It is now possible to select one of the functions listed below. Start the troubleshooting procedure using the "Check DTC Memory" function (02).
01 - Check Control Module Version
02 - Check DTC Memory
03 - Output Diagnostic Test Mode (DTM)
04 - Basic Setting
05 - Erase DTC Memory
06 - End Output
07 - Code Control Module
08 - Read Measuring Value Block
10 - Adaptation
11 - Login Procedure

When a function has been completed, press the (arrow) button to return to the beginning of the troubleshooting procedure ("Selecting function").

Erase DTC Memory (function 05)
Requirements
- DTC memory was checked
- Press (arrow) button.

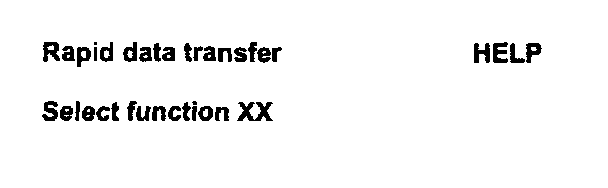

Indicated on display:
- Press buttons -O- and -5- to select "Erase DTC Memory" function 05.

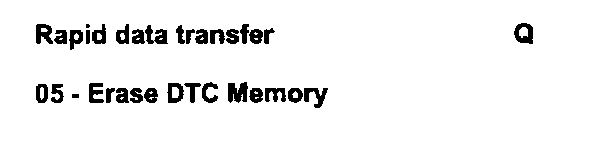

Indicated on display:
- Press -- Q -- button to confirm input.

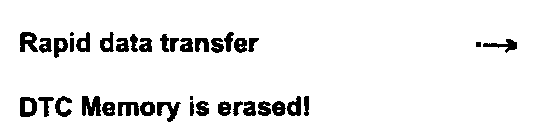

Indicated on display:
- Press (arrow) button.

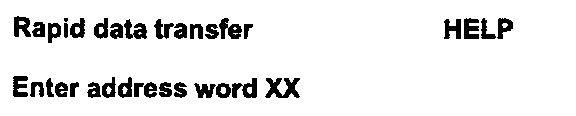

Indicated on display:





Notes:

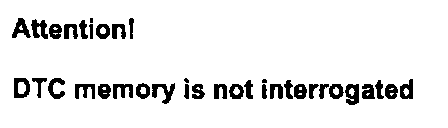

- If this is displayed, the check sequence has not been carried out.
- Observe test sequence exactly. Check DTC memory first and erase it within the same diagnostic cycle.

End Output (function 06)

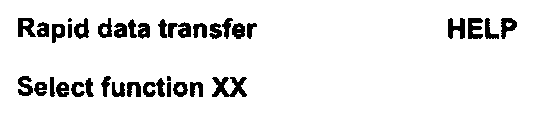

Indicated on display:
- Press buttons -0- and -6- to select "End Output" function 06.

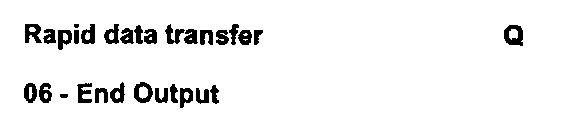

Indicated on display:
- Press -- Q -- button to confirm input.





Indicated on display:
- Switch ignition off.
- Disconnect scan tool.
