Adapting Odometer Display (km/mi)
Adapting Odometer Display (km/mi)
This function is used to adapt the odometer reading (in km or miles) after replacing the instrument cluster.
NOTES:
- The adaptation function can only be carried out on an instrument cluster with an odometer reading of not more than 100 kilometers (62 miles).
- The adaptation function can only be carried out once for each instrument cluster.
- Only a larger adaptation value can be entered, not a lower one.
- If an incorrect value is entered and confirmed, no correction is possible. If this is the case, the instrument cluster must be replaced with a new one.
- In countries where speedometers are calibrated in miles, adjustments must still be made in kilometers. Therefore convert miles to kilometers (miles x 1.609 = kilometers) to get the required adaptation value.
- If the instrument cluster must be replaced, observe notes. Input Values For Instrument Cluster Replacement
Selecting function:
- Press -C- button.
Indicated on display
Rapid data transfer HELP
Select function XX
- Press buttons -1- and -1- to select "Login-Procedure" function 11.
Indicated on display
Rapid data transfer Q
11 - Login-procedure
- Press -Q- button to confirm input.
Indicated on display
Login procedure
Enter code number XXXXX
- Enter code number 13861.
Indicated on display
Login procedure Q
Enter code number 13861
- Press -Q- button to confirm input.
Indicated on display
Rapid data transfer HELP
Select function XX
- Press buttons -1- and -0- to select "Adaptation" function 10.
Indicated on display
Rapid data transfer Q
10 - Adaptation
- Press -Q- button to confirm input.
Indicated on display
Adaptation Q
Insert channel number XX
- Press buttons -0- and -9- to select channel number 09.
- Press -Q- button to confirm input
Indicated on display
Channel 9 Adaptation 2 ->
<-1 3->
NOTE: When using the VAG1551 keypad, only the direct input method can be used.
- Press -> button to advance through program sequence.
Indicated on display
Channel 9 Adaptation 2 Q
Input adaptation value XXXXX

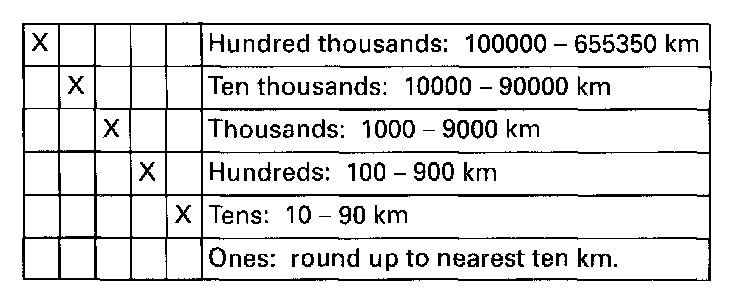

- Input adaptation value using keypad.
Example:
Odometer reading = 89627
08963
Indicated on display
Channel 9 Adaptation 2 Q
Input adaptation value 08963
- Press -Q- button to confirm input.
Indicated on display
Channel 9 Adaptation 8963 Q
<-1 3->
- Press -Q- button to confirm input.
Indicated on display
Channel 9 Adaptation 8963 Q
Store changed value?
- Press -Q- button to confirm input.
Indicated on display
Channel 9 Adaptation 8963 >
Changed value is stored
- Press -> button to end odometer display adaptation.
Indicated on display
Rapid data transfer HELP
Select function XX
