Front

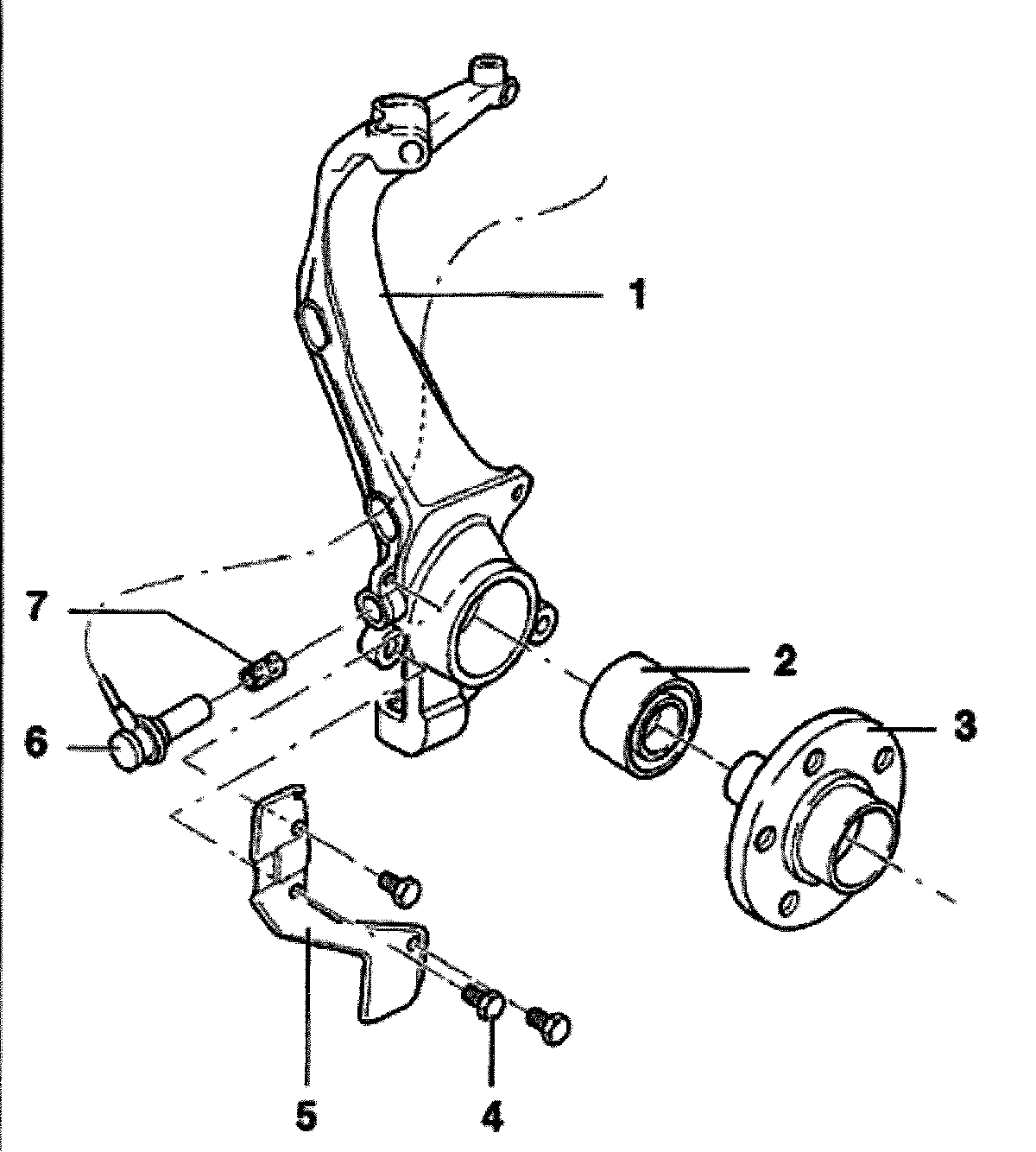

Wheel Bearing Housing






1. Wheel bearing housing
- Note different versions of suspension, refer to parts supplier.
2. Wheel bearing
3. Wheel hub
4. Bolt
5. Brake splash guard
6. ABS wheel speed sensor
7. Clamping sleeve

Note: For additional information, please refer to Service and Repair Procedures for the Front Wheel Bearing. Service and Repair
