Connecting VAG 1551/1552 Scan Tool
PERFORMING BASIC SETTING USING ADDRESS WORD 01Address Word 01 functions are only accessable with the VAG 1551 Scan Tool or the VAG 1552 Scan Tool. Diagnosis with a Generic Scan Tool is possible using the diagnostic modes of Address Word 33. The VAG Scan Tools are also capable of accessing the Address Word 33 diagnostic modes.
TEST REQUIREMENTS
- Engine temperature at least 85°C (185°F)
- Do not operate accelerator pedal
- All electrical consumers switched off
- A/C system switched off. Push minus (-) button for A/C fresh air fan repeatedly until all the displays are cleared
- Move selector lever to P or N
- No malfunctions in Diagnostic Trouble Code (DTC) memory
- Check and erase DTC memory.
- There must be no malfunctions stored (if necessary repair malfunction, erase DTC memory and test drive, switch engine off and start again, test drive and, as a check, check DTC memory again).
NOTE: The readiness code is erased each time the DTC memory is erased (either with function 05 or with Mode 4).
- After checking and erasing DTC memory, let engine continue to run at idle.
Indicated on display
Rapid data transfer HELP
Select function XX
NOTE: When the HELP button is pressed, an overview of possible functions is printed out.
- Press buttons -0-and -4- to select "Basic Setting" function 04.
Indicated on display
Rapid data transfer Q
04 - Basic Setting
- Press -Q- button to confirm input.
Indicated on display
Basic Setting HELP
Input display group number XXX
NOTE: After the HELP button is pressed, the procedure for inputting the display group number is printed out.
- Select the desired display group number according to the following display group overview and press -0- button to confirm input.
NOTE: Display group 001 is used as an example to show the sequence.
- Press buttons -0-, -0- and -1- to input display group number 001.
Indicated on display
Basic Setting Q
Input display group number 1
- Press -0- button to confirm input.
Indicated on display
System in Basic Setting 1
1 2 3 4

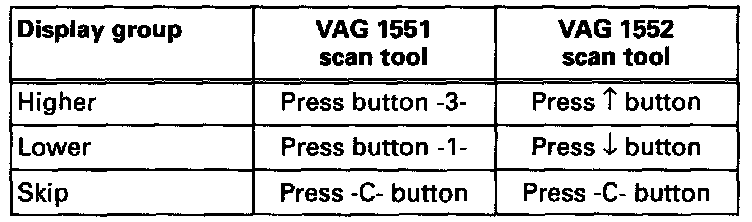

To change to a different display group, proceed as follows:
NOTE:
- The values in display fields 1 to 10 are shown in decimal format in display group 000.
- In the "Basic Setting" display, the current 3-digit display group number is shown without the first zero. In display groups 000 to 009, the number is shown without the first two zeroes.
- If the printer is switched on, the current display will be printed out on the paper strip.
- Each time the PRINT button is pressed, the current display will be printed out.
If the specified values are obtained in all display fields: - Press ---> button.
Indicated on display
Rapid data transfer HELP
Select function XX
- Press buttons -0- and -6- to select "End Output" function 06.
Indicated on display
Rapid data transfer Q
06 - End Output
- Press -0- button to confirm input.
Indicated on display
Rapid data transfer HELP
Insert address word XX
