Tracks 48-58

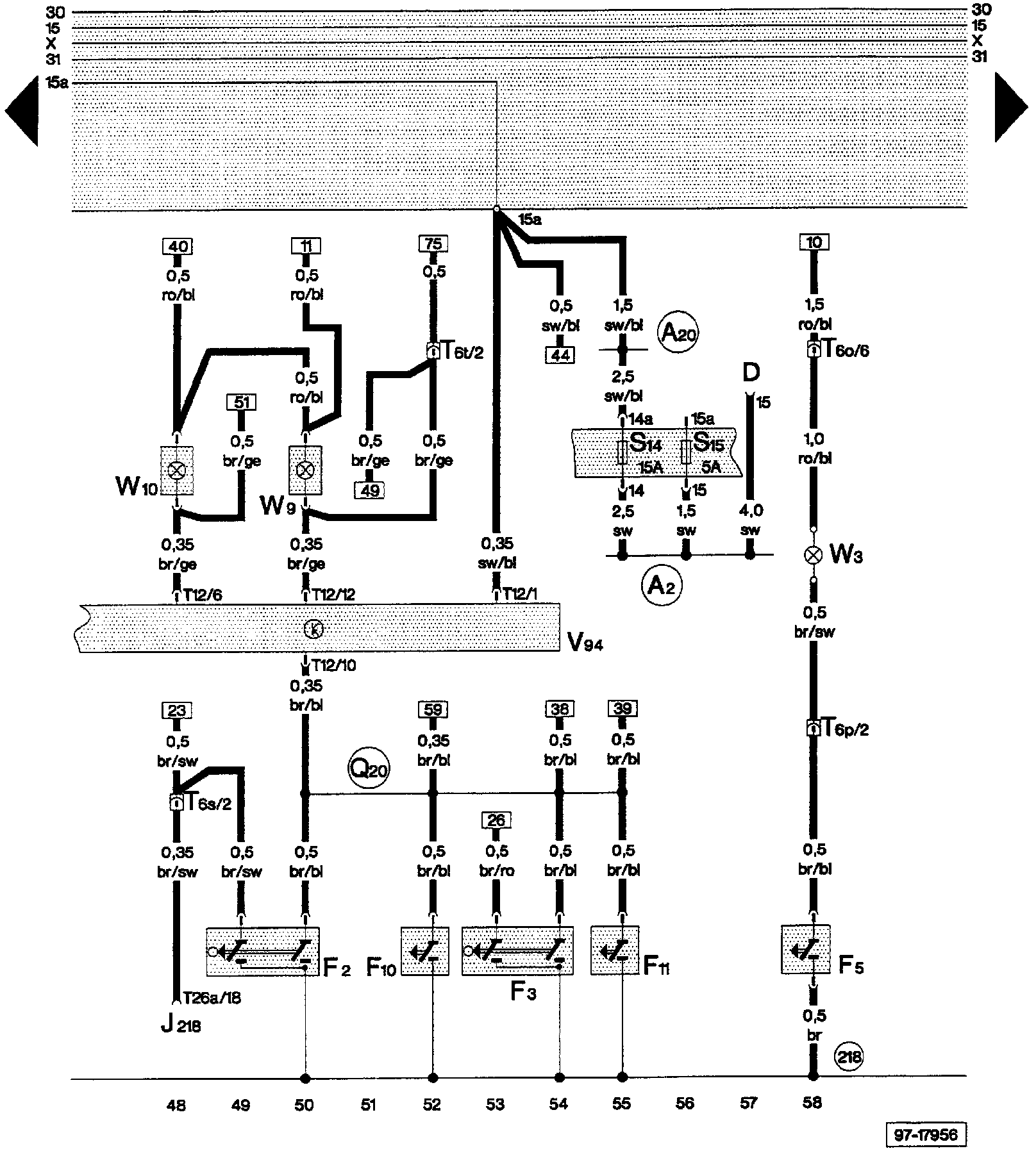

Central Locking System, Anti-Theft Alarm System, Ultrasonic Interior Monitor, Radio Remote Control - Track 48-58:

COMPONENTS
V94 - Central Locking, Alarm System, Interior Light Delay Control Module
S14 - Fuse
S15 - Fuse
D - Ignition, Starter Switch
J218 - Instrument Cluster Combination Processor
F10 - Left Rear Door Contact Switch
F2 - Left Front Door Contact Switch
W9 - Left Footwell Light
F5 - Luggage Compartment Light Switch
W3 - Luggage Compartment Light
F11 - Right Rear Door Contact Switch
F3 - Right Front Door Contact Switch
W10 - Right Footwell Light


CONNECTORS
T6o - 6-Pin Connector, brown, connector station 1
T6p - 6-Pin Connector, black, in luggage compartment, rear left
T6s - 6-Pin Connector, brown, connector station 1
T6t - 6-Pin Connector, black, connector station 1
T12 - 12-Pin Connector, connector A on V94, under rear seat, right
T26a - 26-Pin Connector, green, on instrument cluster



GROUND CONNECTIONS

NOTE: Grounds connections are indicated on the diagram by a numeric code inside a circle.

218 - Ground connection -1-, in rear lid wiring harness


HARNESS SPLICES

NOTE: Harness splices are points inside a wiring harness where two or more wires are crimped and/or soldered together. Harness splices are
indicated on the diagrams by an alphanumeric code inside a circle


A2 - Plus connection (15), in instrument panel wiring harness
A20 - Wire connection (15a), in instrument panel wiring harness
Q20 - Wire connection -1- (door contact switch), in power window wiring harness
