Power Seats, Mechanical Components



NOTE: Installation location of seat memory control unit, voltage supply relay, Locations

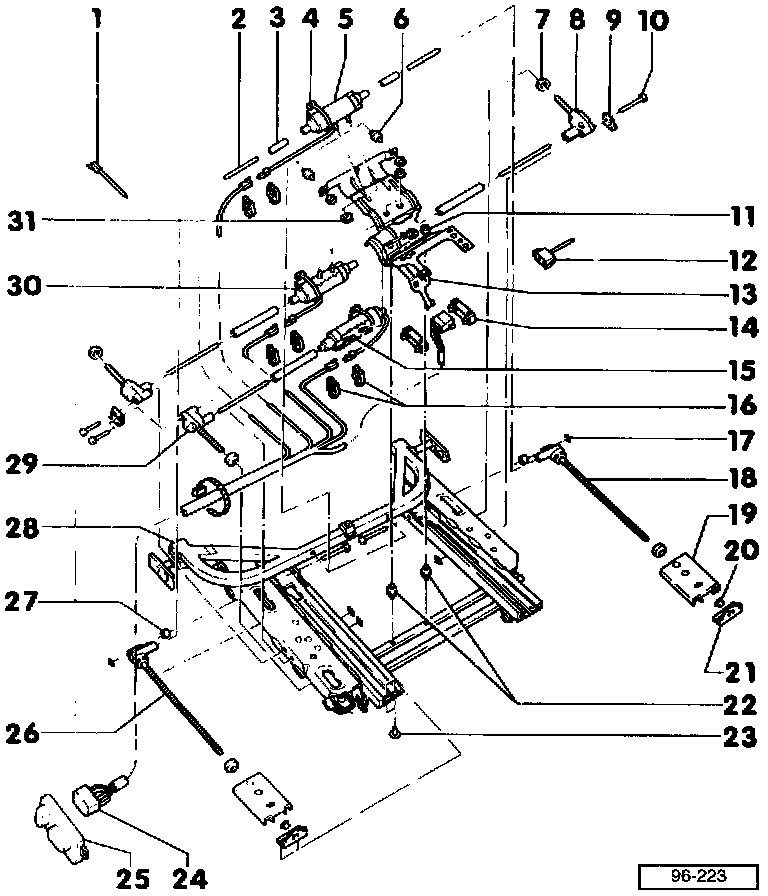

Power Seat, Assembly: Power Seat, Mechanical Components:





1 - 2-point connector for seat adjustment
2 - Drive shaft, adjuster element
3 - Drive shaft, guard tube
4 - Tie wrap
5 - Motor, fore/aft adjustment

6 - Rubber buffer
- Fore/aft motor mount
7 - Stop buffer
8 - Actuator, rear height adjustment

9 - Spacer
10 - Mounting screws, actuator
11 - Nut, motor mount
12 - Plug connector

- Refer to appropriate wiring diagram for pin location
13 - Motor mount
14 - Bracket

- For plug connector -12-
15 - Motor, front height adjustment
16 - Clip
- For plug connector -12-
17 - Circlip
18 - Actuator, right side,

- Fore/aft adjustment
19 - Seat runners
20 - Bushing
21 - Spindle plate
22 - Buffers, motor mount
23 - Rivet

- Secures spindle plate -21-
24 - Plug connector, switch unit
- Refer to appropriate wiring diagram for pin location
25 - Switch, seat adjuster
26 - Actuator, left side

- For/aft adjustment
27 - Mounting ring
28 - Lower seat frame with seat runner guides

29 - Actuator, front height adjustment
30 - Motor, rear height adjustment
31 - Nut, motor mount
