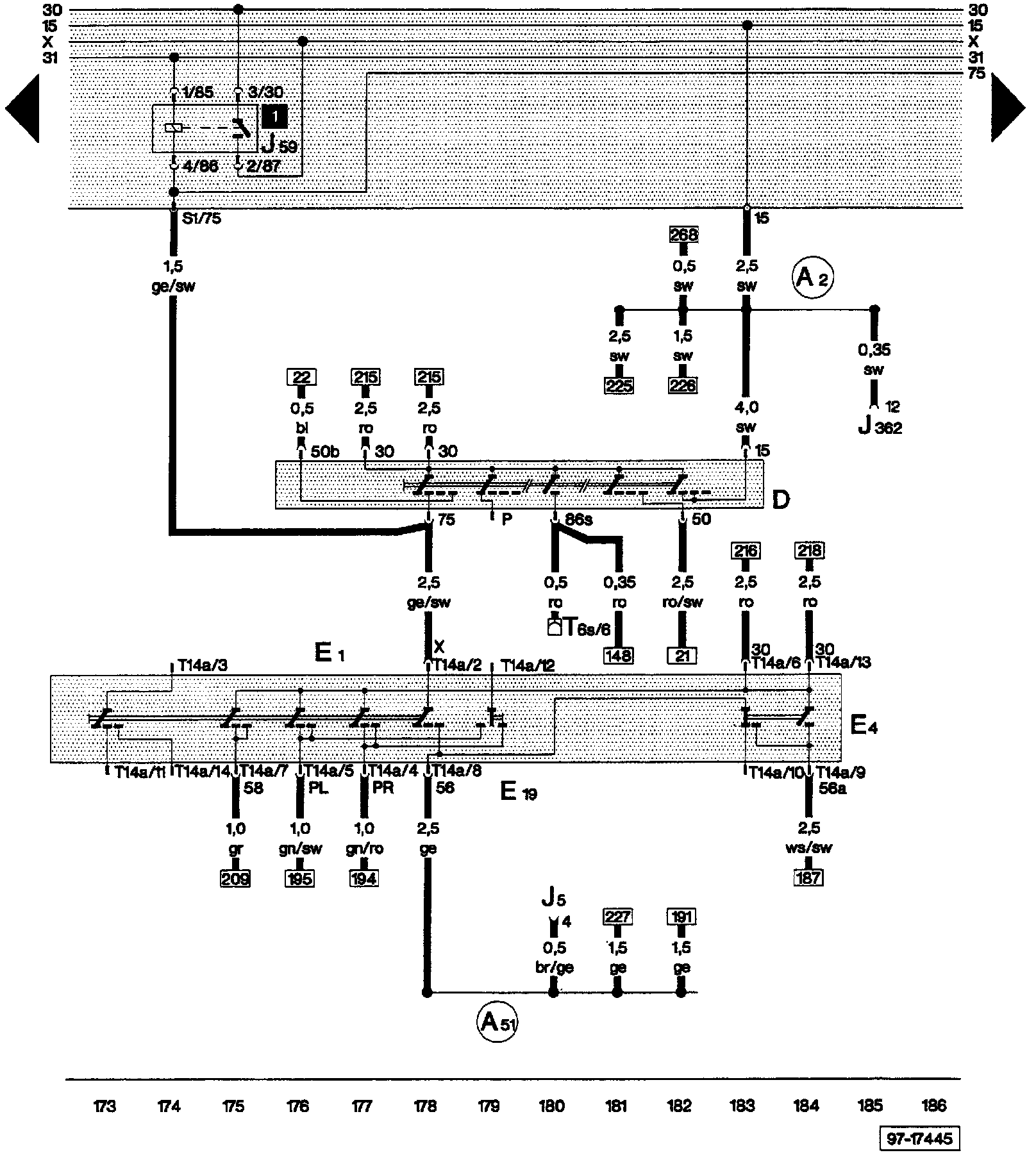

Ignition/Starter Switch, Light Switch - Track 173-186:

Fuse colors
30 A - green
25 A - white
20 A - yellow
20 A - blue
15 A - red
5 A - beige



Track Continuations


Previous Diagram Tracks 159-172
Next Diagram Tracks 187-200

To Refer to
21 Tracks 15-27 Tracks 15-27
22 Tracks 15-27 Tracks 15-27
148 Tracks 148-158 Tracks 148-158
187 Tracks 187-200 Tracks 187-200
191 Tracks 187-200 Tracks 187-200
194 Tracks 187-200 Tracks 187-200
195 Tracks 187-200 Tracks 187-200
209 Tracks 201-213 Tracks 201-213
215 Tracks 214-224 Tracks 214-224
216 Tracks 214-224 Tracks 214-224
218 Tracks 214-224 Tracks 214-224
225 Tracks 225-237 Tracks 225-237
226 Tracks 225-237 Tracks 225-237
227 Tracks 225-237 Tracks 225-237
268 Tracks 263-274 Tracks 263-274



COMPONENTS

J362 - Control Module for anti-theft immobilizer
J5 - Fog Light Relay
E4 - Headlight Dimmer, Flasher Switch
D - Ignition, Starter Switch
E1 - Light switch
J59 - Load Reduction Relay
E19 - Park Light Switch


CONNECTORS

T6s - 6-Pin Connector, brown, connector station 1
T14a - 14-Pin Connector, black, behind steering column switch cover


HARNESS SPLICES

NOTE: Harness splices are points inside a wiring harness where two or more wires are crimped and/or soldered together. Harness splices are indicated on the diagrams by an alphanumeric code inside a circle


A2 - Plus connection (15), in instrument panel wiring harness
A51 - Wire connection (56), in instrument panel wiring harness
