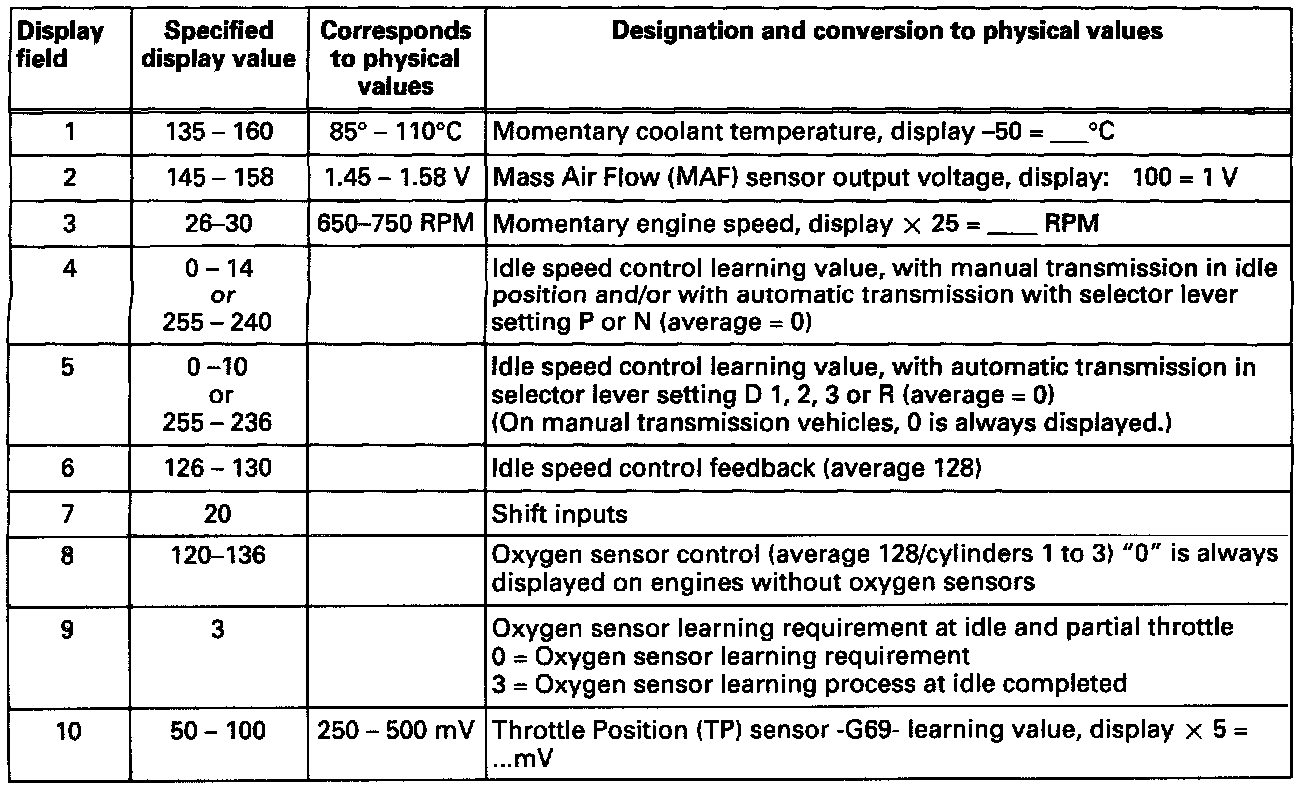

Display Group 000

NOTE: If the values displayed do not correspond to the specified values, the following display groups 001 to 010 can be used to repair malfunctions.


Note on display field 8: Deviations in display field 8 should only be considered after the oxygen sensor learning process at idle has been completed display field 9.


Note On display field 9: If specified display values are greater than 3, display groups 007 and/or 008.
