With Scan Tool VAG 1551

- Switch ignition OFF.

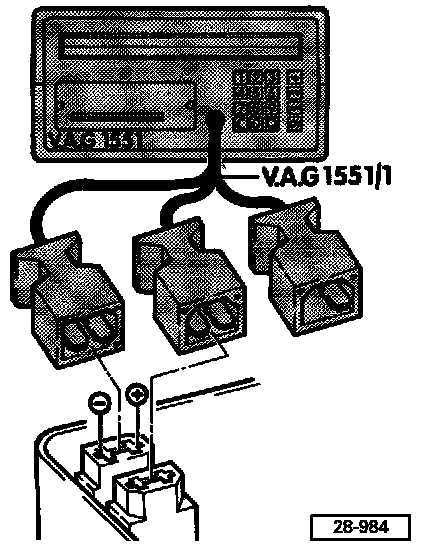

- Connect adapter harness VAG 1551/1 to Data Link Connectors (DLC) in auxiliary relay panel I in left side of plenum chamber as follows:

^ Black test lead to black DLC
^ White test lead to white DLC

NOTE: The blue test lead is not used during Airbag II OBD.

- Connect adapter harness VAG 1551/1 to VAG 1551 Scan Tool.

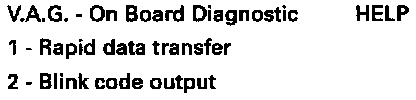

Indicated on display 1)
1) Operating modes 1 and 2 appear alternately.

NOTE:
^ Additional operating instructions can be printed out by pressing the HELP button.
^ Pressing the -> button advances through the 0DB program.
