Interior Monitoring Control Module - Remove/Install

Interior Monitoring Control Module, removing and installing

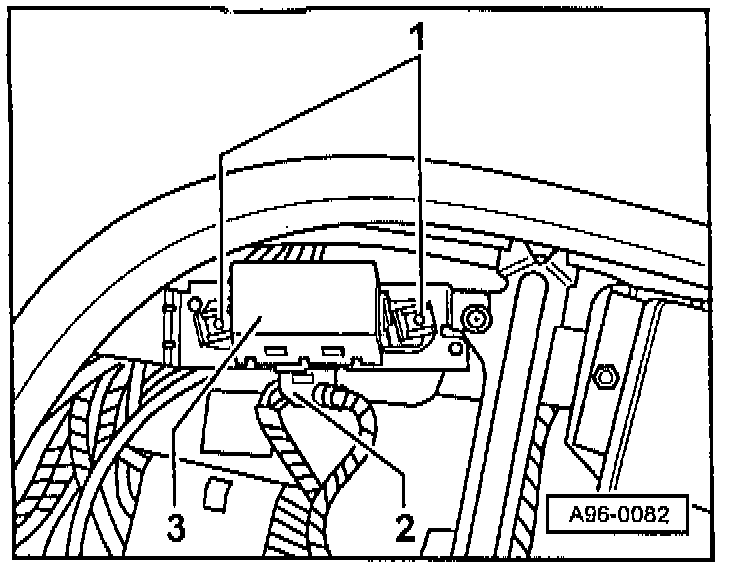

^ Interior Monitoring Control Module -3- under rear seat bench (left).

- Remove rear seat bench -> Repair Group 72.

- Loosen mounting screws -1- (2x).

- Disconnect harness connector -2- on Control Module.

- Install in reverse sequence.

Notes:
- Conduct diagnosis page 96-4 and functional test

- If both tests are not OK check wiring according to latest wiring diagram:

^ Terminal assignments for Control Module Connector

^ Terminal assignments for sensor connector

- Repair wiring

- Conduct diagnosis and functional check.
