Manual Transmission/Transaxle: Application and ID

The 5-speed 01A manual transmission for all-wheel-drive is installed in the Audi 100 Quattro and Audi A6 Quattro in combination with the 6-cylinder engine.

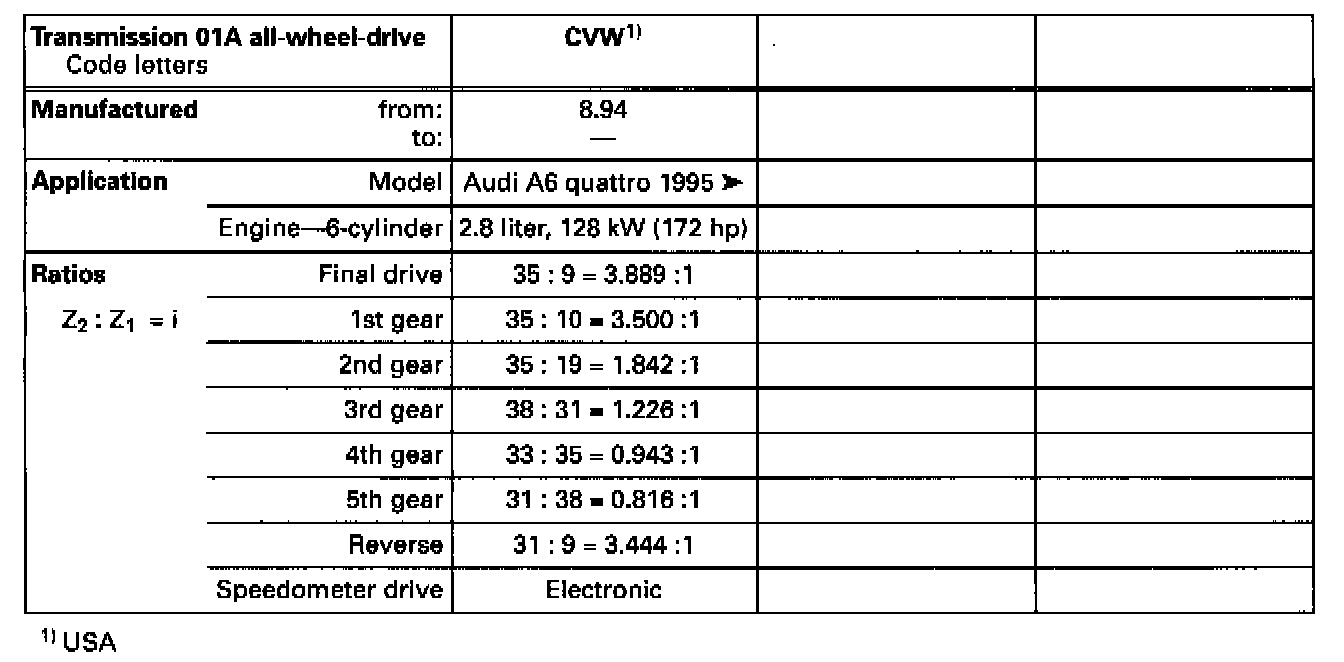

Application and Ratios:

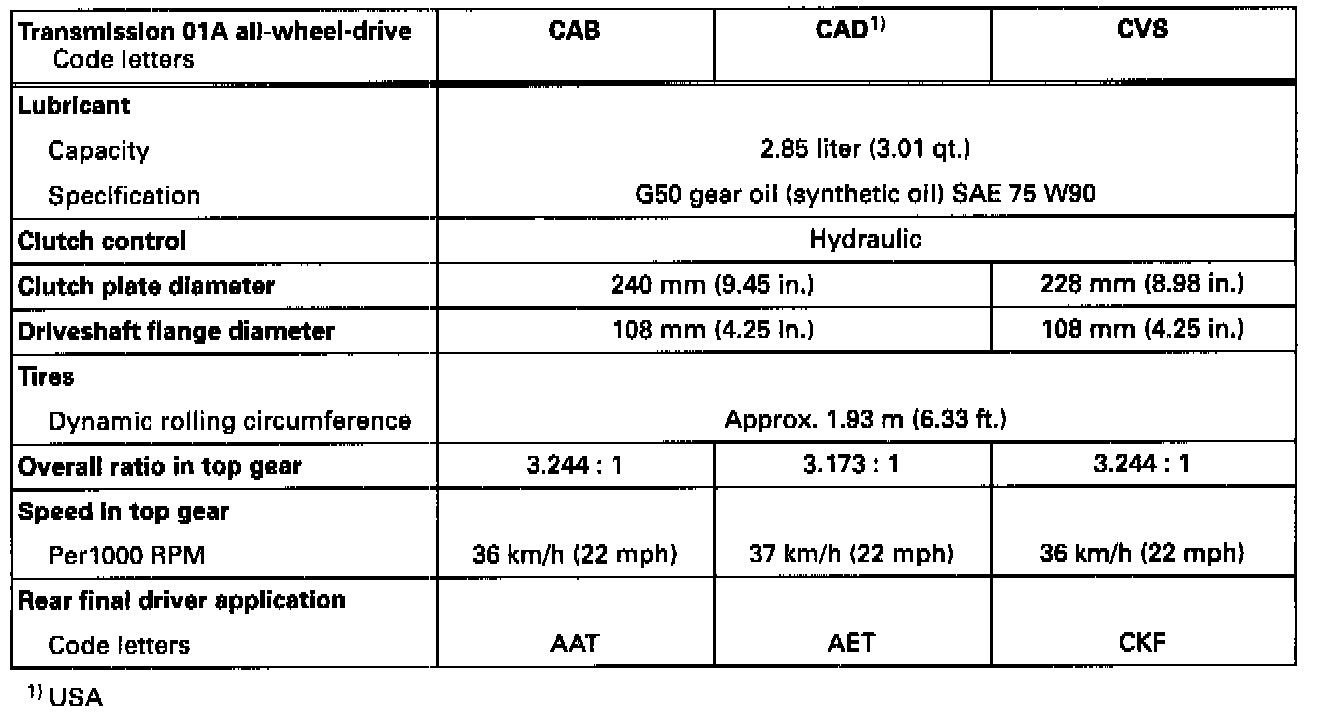

Capacities and Specifications:

Application and Ratios:

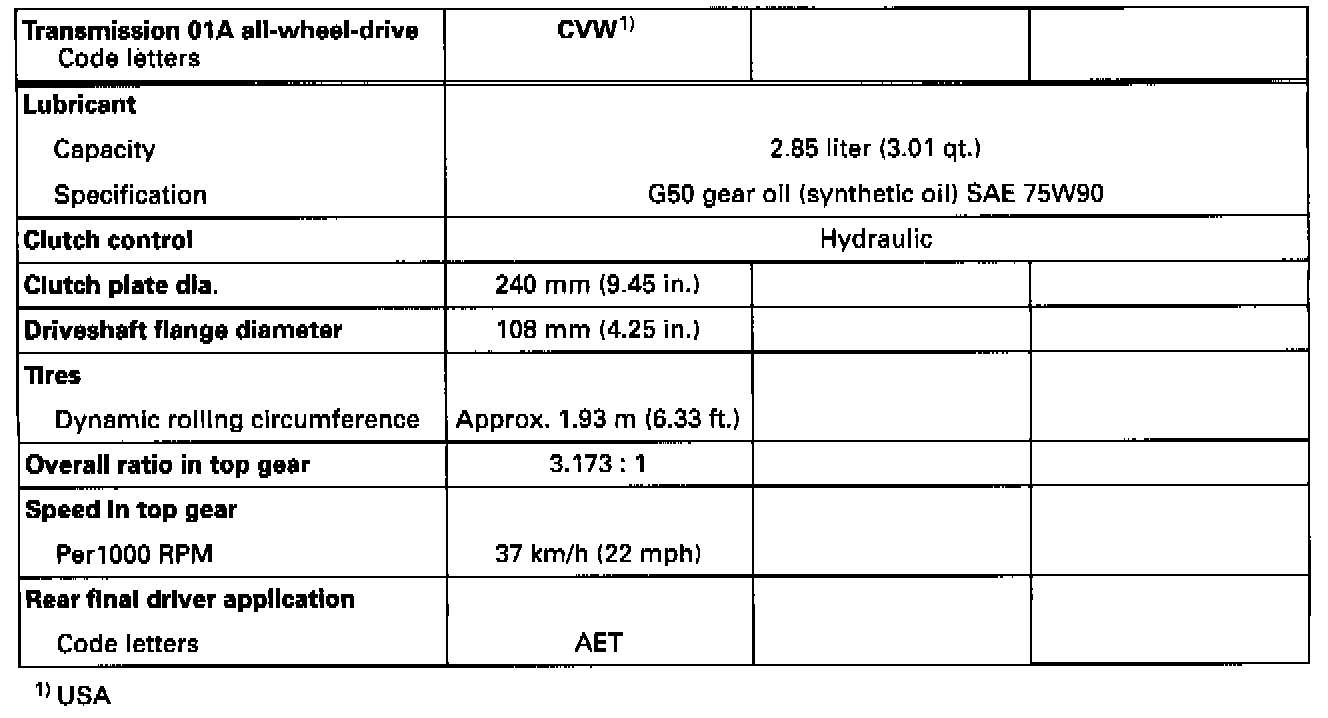

Capacities and Specifications:

Transmission Identification Code Locations:

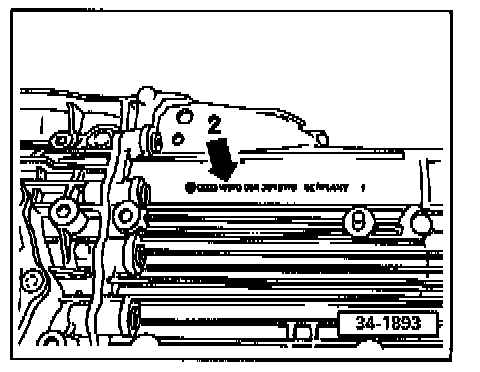

Transmission Number And Code Letters (arrow -2-):

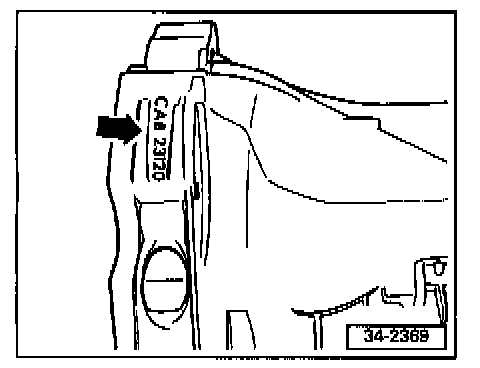

Code Letters And Date Of Manufacture:

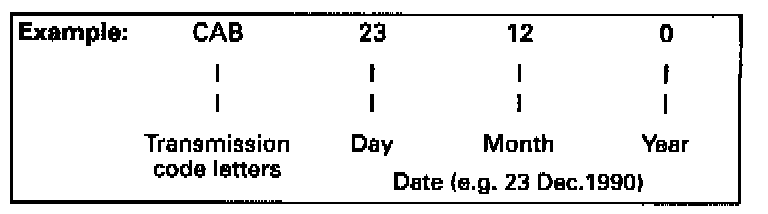

Code Example:

Note: The code letters of the transmission are also indicated on the vehicle data plates.
