Front Axle

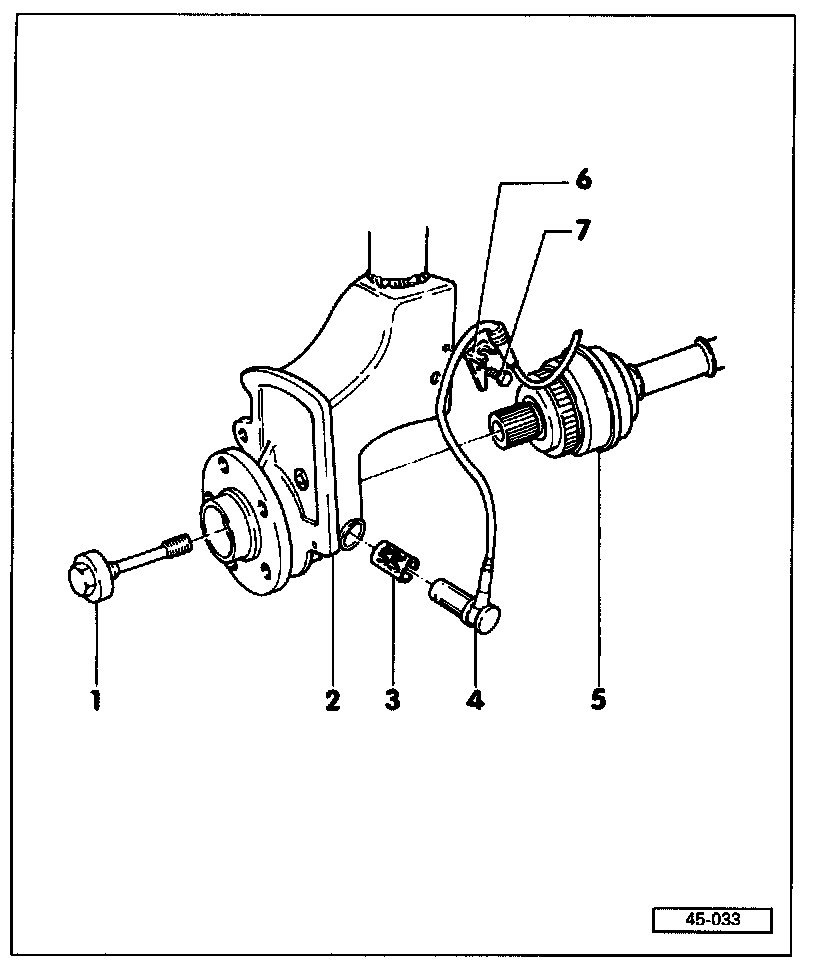

Front Axle ABS Components





1 Bolt/washer assembly
• Always replace
• Tighten to 200 Nm (148 ft lb) plus additional 1/4-turn (90 °)

2 Wheel bearing housing

3 Clamping sleeve

4 ABS wheel speed sensor

5 Drive axle with ABS wheel speed sensor rotor

6 Bracket

7 Bolt
• 10 Nm (7 ft lb)
