Assembly

NOTE: Removing steering wheel Service and Repair

WARNING!
- Before servicing any part of the vehicle electrical system, always disconnect the battery ground strap.
Up to 1995 models:
- Before working on any airbag or steering column component, always disconnect the airbag voltage supply connector. Disconnecting the battery ground strap alone will not prevent accidental airbag release.
From 1996 models:
- The single-pin airbag voltage supply connector is eliminated.
- It is only necessary to disconnect the battery ground strap.
- All other airbag system safety precautions are still applicable.

CAUTION!
Before removing the steering column, position steering wheel straight ahead, and remove steering wheel first. (This will ensure that the spiral spring in steering wheel is not damaged.)

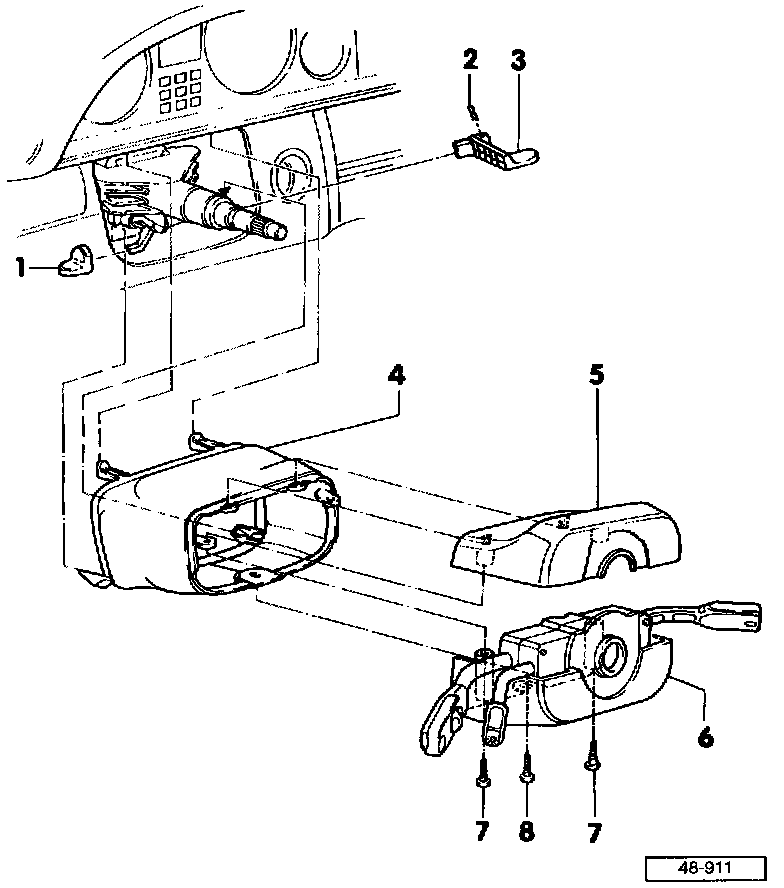

Steering Column Switches, Assembly:

1 - Till adjustment lever
- Remove before removing steering column switches
- Loosen set screw to remove lever
2 - Spring clip
3 - Telescoping adjustment lever
- Remove before removing steering column switches
- To remove, pry offspring clip -2- with small screw driver
4 - Housing
- Insert upper tabs into instrument panel first, then the lower ones
5 - Upper trim cover
6 - Steering column switches with lower trim cover
7 - Self-tapping screws
- For securing upper and lower trim
8 - Oval head screw
- For securing lower trim and housing to steering column
