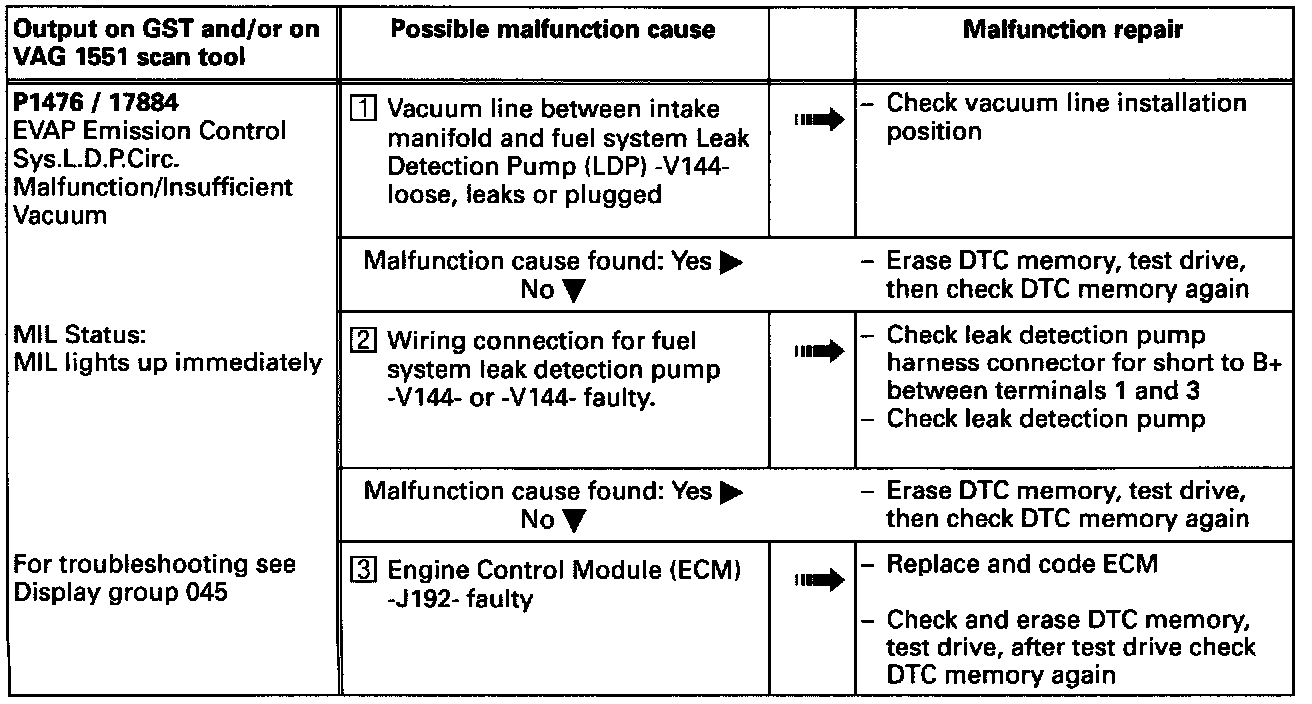

DTC 17884

NOTE:
- The On Board Diagnostic (OBD) program,checks the electrical contact (reed contact) LDP function capability
- The diagnostic trouble code "P1476/17884 " is stored if, when the LDP is triggered (max. 3 times) the electrical contact (reed contact) does not open at least once for longer than 30 ms. The ECM recognizes the opening of the reed contact by the change from high signal to low signal (circuit interrupted by opening the contact).
