Antenna Coupler Unit, Installing (A6 Sedan Only)

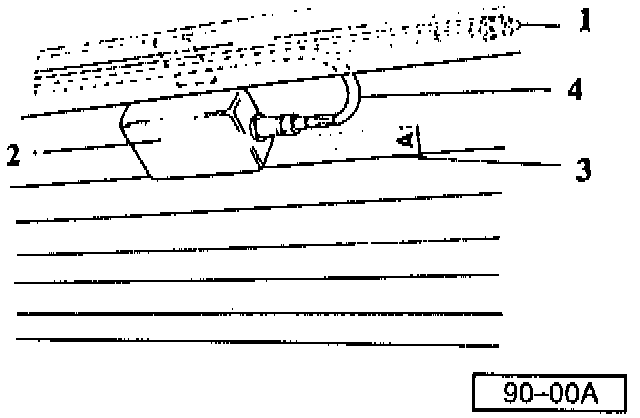

- Locate antenna cable -1- under rear headliner

- Install coupler unit -2- to inside center of rear glass (use adapter supplied with installation kit if necessary)





^ When installing coupler unit mount if 10 mm (25/64 in) above top line -3- in rear window (measurement A)

Note:
Rear glass has locating margins in the glass
